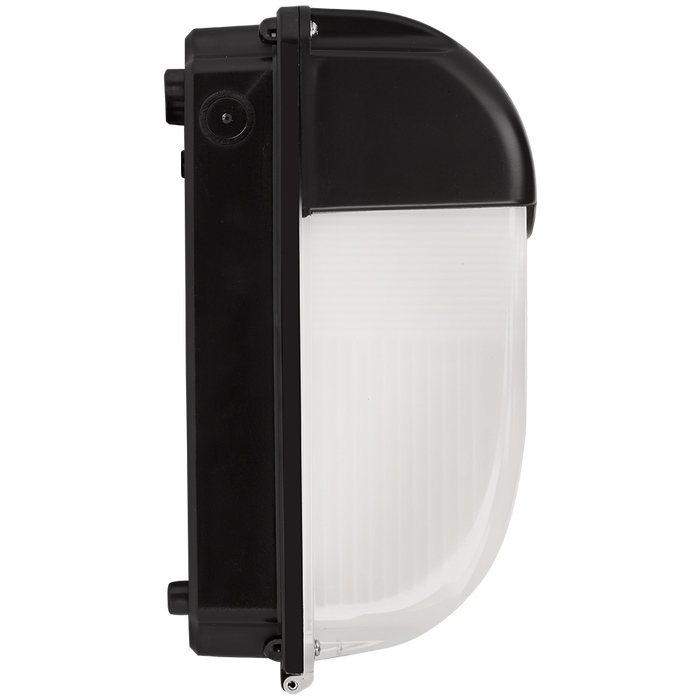

BULKLEDPC

12W LED bulkhead with photocell

Black | 12W | 6500K | 1250 lm | 30,000 hrs | IP65



 icon-6500k    icon-30000hrs  icon-ip65  icon-led  icon-5year

BULKLEDPC

Black | 12W | 6500K | 1250 lm | 30,000 hrs | IP65



 icon-6500k    icon-30000hrs  icon-ip65  icon-led  icon-5year

SKU: 5013845046633 Categories: ,
Categories: Ceiling/Wall/Bulkheads
SKU: 5013845046633
More Information
Features

PERFECT FOR DOMESTIC & LIGHT COMMERCIAL APPLICATIONS

Robustly constructed, reliable wall fitting offering more discrete illumination for utility applications.

  • Integral photocell: automatic dusk to dawn operation
  • Tough polycarbonate housing
  • Opal diffuser: evenly diffused light output
  • Corrosion resistant stainless steel cover fixing screws
  • Cable channel on reverse of fitting with 20mm knockout conduit entries
  • Hinged diffuser
  • IP65 rated
  • M.O.M: 1 / O.P.Q: 12
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 1250 lm
Lumens from chip (no diffuser) 1650 lm
Useful lumens 705 lm
Rated Wattage 12W
Rated luminous flux 705 lm
Nominal life time of the lamp 30,000 hrs
Colour temperature 6500K
Number of switching cycles before premature lamp failure ≥15,000
Warm-up time up to 60 % of the full light output Instant Full Light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 12W
Rated lamp lifetime 30,000 hrs
Displacement factor ≥0.7
Lumen maintenance factor at end of nominal life ≥0.8
Starting time Instant full light
Colour rendering ≥80
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 294cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumen efficacy: 104 lm / W
This product contains a Light Source of Energy Efficiency Class D
Class 2 double insulated
Not suitable for accent lighting
Downloads

You will need Adobe Acrobat Reader to access and print PDFs.

Product Information
