IFIRELCSCR

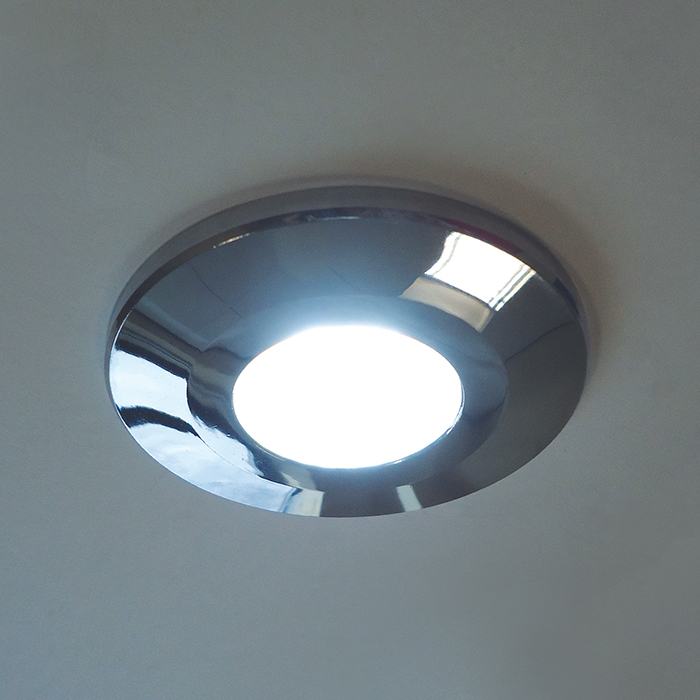

DISCONTINUED - Dimmable colour selectable integrated fire rated LED downlight
OBSOLETED PRODUCT
Polished Chrome | 8W | 40,000 hrs | IP65
• 3000K/670 lm (Warm White) • 4000K/780 lm (Cool White) • 6000K/700 lm (Daylight)
IFIRELCSCR
OBSOLETED PRODUCT
Polished Chrome | 8W | 40,000 hrs | IP65
• 3000K/670 lm (Warm White) • 4000K/780 lm (Cool White) • 6000K/700 lm (Daylight)
Features
PERFECT FOR ALL DOMESTIC, OFFICE, COMMERCIAL & INDUSTRIAL APPLICATIONS
High performance, fire rated downlight with prewired plug in connector for easy installation and circuit integrity checks without fixture being connected.
- Fire rated tested for individual 30, 60 and 90 min ceiling types
- Dimmable – for optimum dimming performance we recommend using a compatible LED dimmer
- Selectable colour temperature with warm, cool and daylight options
- Pre-wired with 20cm cable onto plug-in connector screw terminal block
- 4 terminal connector allows for loop in/out lighting circuits
- Silicon bezel seals against air permeability
- 60° beam angle
- Hole cut out dimension – 76mm
- M.O.M: 1 / O.P.Q: 40
PLEASE NOTE:
Due to the huge variety of dimmers in the market, dimming performance with all types cannot be guaranteed, compatibility should be tested before installation.
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White | 670 lm (WW) / 780 lm (CW) / 700 lm (DW) |
| Lumens from chip (array): Warm White, Cool White, Daylight White | 700 lm (WW) / 800 lm (CW) / 720 lm (DW) |
| Useful lumens (array): Warm White, Cool White, Daylight White | 650 lm (WW) / 750 lm (CW) / 680 lm (DW) |
| Rated Wattage | 8W |
| Rated luminous flux | 650 lm (WW) / 750 lm (CW) / 680 lm (DW) |
| Nominal life time of the lamp | 40,000 hrs |
| Colour temperature | 3000/4000/6000K |
| Number of switching cycles before premature lamp failure | ≥15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | Yes |
| Nominal beam angle | 60° |
| Rated power wattage | 8W |
| Rated lamp lifetime | 40,000 hrs |
| Lamp power factor | >0.8 |
| Lumen maintenance factor at end of nominal life | ≥0.70 |
| Starting time | 0.1s |
| Colour rendering | >0.8 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 450cd |
| Rated beam angle | 60° |
| Voltage / Frequency | 240V~50/60Hz |
| Lumens per watt | Up to 83 lm / W |
| Weight (kg) | 0.321 |
| TSI Code | 406600046 |
| Not suitable for accent lighting | |
