ALMF3WHGRI

Aluminium emergency LED wall light with grill diffuser + Multi-function MW sensor

White | 18W | 4200K | 1400 lm | 35,000 hrs | IP65 | A+ Rated



       icon-ip65  icon-aplus  icon-microwave-sensor  icon-emergency  icon-led  icon-5year



ALMF3WHGRI

White | 18W | 4200K | 1400 lm | 35,000 hrs | IP65 | A+ Rated



       icon-ip65  icon-aplus  icon-microwave-sensor  icon-emergency  icon-led  icon-5year



SKU: 5013845050111 Categories: ,
Categories: Bulkheads, EternaPro
SKU: 5013845050111
More Information
Features

Modern and robust design with options including full, eyelid and grill case, black and white finish, standard, emergency, multi function microwave and multi function microwave emergency.

Superior range of die-cast aluminium fittings offering multiple functions and trim options suitable for outdoor applications where performance, style and durability are required.

PERFECT FOR SUPERIOR LEISURE, HOTELS & OUTDOOR APPLICATIONS

Battery replacement service available. Click HERE for details.

  • Die-cast aluminium base and bezel
  • Polycarbonate diffuser

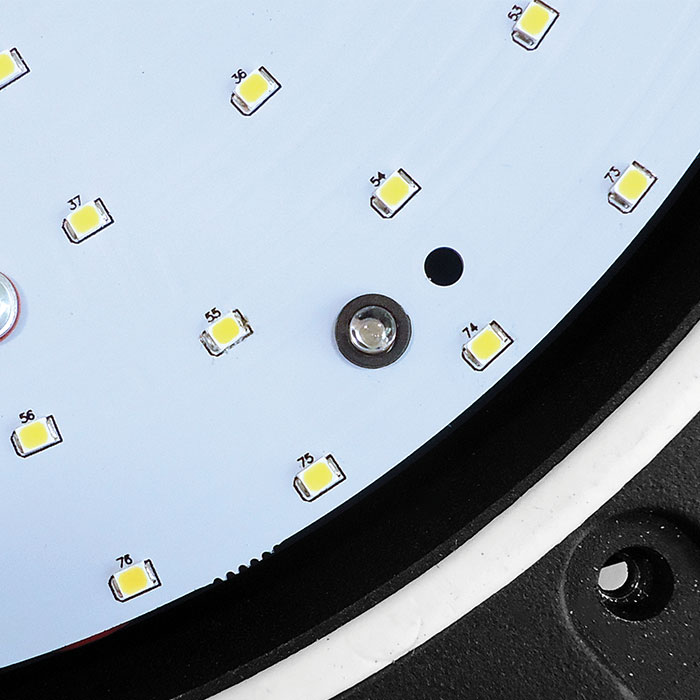

  • Full circular LED array
  • Plug in connector between the terminal block and the gear tray. Terminal block is located on the base, allowing for easy wiring and the gear tray to be removed during installation
  • Four 20mm cable entries
  • Tamper-proof, captive, stainless steel allen key screws
  • 3 hour maintained mode as standard which can also be configured for non-maintained operation
  • Replacement battery code: EB11
  • M.O.M: 1 / O.P.Q: 1
  • MULTI-FUNCTION MICROWAVE SENSOR VERSIONS:
  • Detection sensitivity adjustable – 10/50/75/100%
  • Daylight sensor adjustable – 5/15/50 Lux/Disable
  • Mounting height – maximum 6mtr
  • Detection zone – maximum 16mtr diameter x 6mtr height
  • Detection angle – 150° (wall mounted), 360° (ceiling mounted)
  • MULTI-FUNCTION MICROWAVE SENSOR WITH 3 INSTALLER OPTIONS:
  • Standard On/Off Mode: operation at 100% light level then off after last presence detection. Operation on time can be set at 5 seconds/90 seconds/3 minutes/10 minutes
  • “Corridor Mode”: operation at 100% light level after last presence detection which can be set at 5 seconds/90 seconds/3 minutes/10 minutes, then continuous operation at 10% light level
  • “Corridor” & Off Mode: operation at 100% light level after last presence detection which can be set at 5 seconds/90 seconds/3 minutes/10 minutes, then operation at 10% light level which can be set at 30 seconds or 10 minutes, then off
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 1400 lm
Lumens from chip (no diffuser) 1900 lm
Useful lumens 1350 lm
Rated Wattage 18W
Rated luminous flux 1350 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 4200K
Number of switching cycles before premature lamp failure >15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 18W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life >0.7
Starting time <0.1s
Colour rendering >80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 520cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
