KCOMCS8

Colour temperature selectable 8W LED commercial downlight

Commercial Downlight Range

White | 8W | 3000K (845 lm) | 4000K (872 lm) | 6000K (847 lm) | 40,000 hrs | IP44



           icon-led

KCOMCS8

Commercial Downlight Range

White | 8W | 3000K (845 lm) | 4000K (872 lm) | 6000K (847 lm) | 40,000 hrs | IP44



           icon-led

Categories: Downlights, Vanilla
SKU: 5013845057998
More Information
Features

This range is ideal for many applications, with high lumen efficiency for enhanced energy saving and colour temperature selection allowing the desired lighting effect to be chosen on installation.

  • Tough Polypropylene construction
  • Colour temperature selectable – options of 3000K/4000K/6000K
  • IP44 rated as standard
  • High CRI rating of >80, making them perfect for retail applications, minimising colour distortion
  • Dimmable
  • Hole cut out size: 110mm

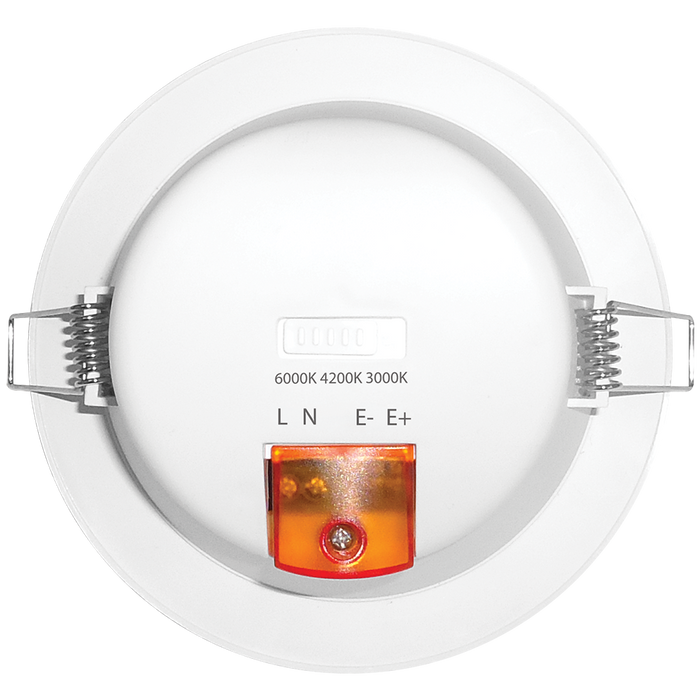

  • Integral terminal connections E- & E+ allow luminaire to be used in 3 hour emergency mode when used with Eterna battery packs: EBPM3, SEEBPM3, EBPM3LI
  • M.O.M: 1 / O.P.Q: 30
Specification
Lamp Specifications:
Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White 845 lm (3000K) / 872 lm (4000K) / 847 lm (6000K)
Lumens from chip (array): Warm White, Cool White, Daylight White 902 lm (3000K) / 930 lm (4000K) / 912 lm (6000K)
Useful lumens (array): Warm White, Cool White, Daylight White 813 lm (3000K) / 845 lm (4000K) / 818 lm (6000K)
Rated Wattage 8W
Rated luminous flux 813 lm (3000K) / 845 lm (4000K) / 818 lm (6000K)
Nominal life time of the lamp 40,000 hrs
Colour temperature 3000/4000/6000K
Number of switching cycles before premature lamp failure ≥15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? Yes
Nominal beam angle 120°
Rated power wattage 8W
Rated lamp lifetime 40,000 hrs
Lamp power factor >0.70
Lumen maintenance factor at end of nominal life ≥0.70
Starting time Instant full light
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 294/312/302cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt 106/109/106 lm / W
Not suitable for accent lighting
