KCOMCS13
Colour temperature selectable 13W LED commercial downlight
Commercial Downlight Range
White | 13W | 3000K (1401 lm) | 4000K (1475 lm) | 6000K (1442 lm) | 40,000 hrs | IP44
KCOMCS13
Commercial Downlight Range
White | 13W | 3000K (1401 lm) | 4000K (1475 lm) | 6000K (1442 lm) | 40,000 hrs | IP44
Features
This range is ideal for many applications, with high lumen efficiency for enhanced energy saving and colour temperature selection allowing the desired lighting effect to be chosen on installation.
- Tough Polypropylene construction
- Colour temperature selectable – options of 3000K/4000K/6000K
- IP44 rated as standard
- High CRI rating of >80, making them perfect for retail applications, minimising colour distortion
- Dimmable
- Hole cut out size: 165mm

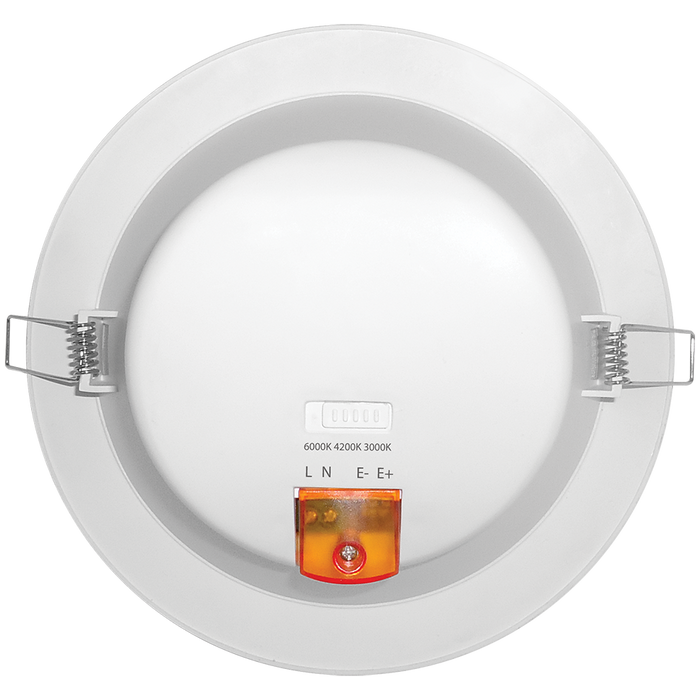

- Integral terminal connections E- & E+ allow luminaire to be used in 3 hour emergency mode when used with Eterna battery packs: EBPM3, SEEBPM3, EBPM3LI
- M.O.M: 1 / O.P.Q: 20
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White | 1401 lm (3000K) / 1475 lm (4000K) / 1442 lm (6000K) |
| Lumens from chip (array): Warm White, Cool White, Daylight White | 1498 lm (3000K) / 1560 lm (4000K) / 1520 lm (6000K) |
| Useful lumens (array): Warm White, Cool White, Daylight White | 1341 lm (3000K) / 1400 lm (4000K) / 1362 lm (6000K) |
| Rated Wattage | 13W |
| Rated luminous flux | 1341 lm (3000K) / 1400 lm (4000K) / 1362 lm (6000K) |
| Nominal life time of the lamp | 40,000 hrs |
| Colour temperature | 3000/4000/6000K |
| Number of switching cycles before premature lamp failure | ≥15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | Yes |
| Nominal beam angle | 120° |
| Rated power wattage | 13W |
| Rated lamp lifetime | 40,000 hrs |
| Lamp power factor | >0.70 |
| Lumen maintenance factor at end of nominal life | ≥0.70 |
| Starting time | Instant full light |
| Colour rendering | ≥80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 487/506/496cd |
| Rated beam angle | 120° |
| Voltage / Frequency | 240V~50Hz |
| Lumens per watt | 108/113/110 lm / W |
| Not suitable for accent lighting | |
