KFLATDL18

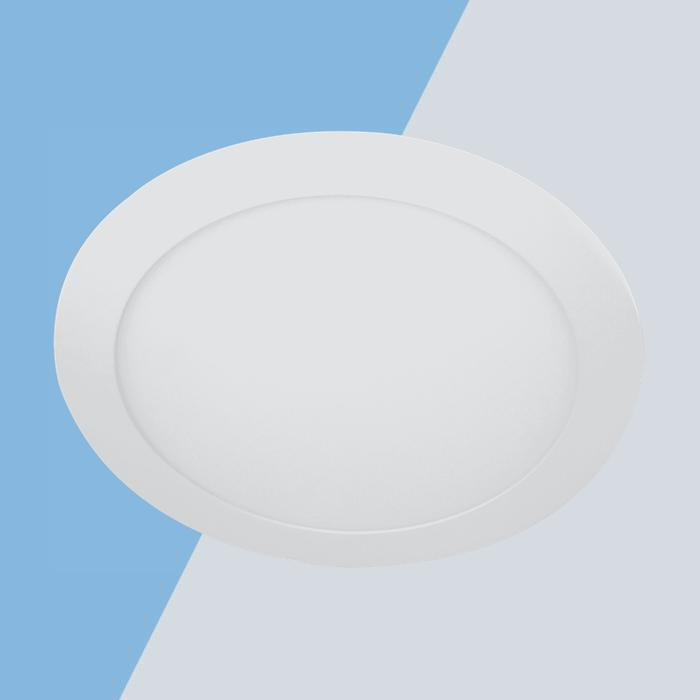

18W colour temperature selectable recessed LED flat downlight

White | 18W | 3000K (1900 lm) / 4000K (1970 lm) / 6000K (1900 lm) | 40,000 hrs | IP44 (front)



            icon-led

KFLATDL18

White | 18W | 3000K (1900 lm) / 4000K (1970 lm) / 6000K (1900 lm) | 40,000 hrs | IP44 (front)



            icon-led

SKU: 5013845059336 Categories: , , ,
Categories: Downlights, Panels, Vanilla
SKU: 5013845059336
More Information
Features

This range is ideal for many applications, with high lumen efficiency for enhanced energy saving and colour temperature selection allowing the desired lighting effect to be chosen on installation.

  • Colour temperature selectable – options of 3000K, 4000K & 6000K easily set by a dip switch on the back of the fitting
  • Flame retardant aluminium housing with polycarbonate diffuser, includes spring clips to fix within the ceiling
  • Multiple LED low power array: even, shadow free diffused light output
  • Zero maintenance, integral light source providing instant light output
  • IP44 from the front
  • Flicker free operation
  • Slim profile design to allow installations with narrow ceiling voids
  • Unobtrusive design with neutral white trim
  • Hole cut out size: 220mm
  • High CRI rating of >80, minimising colour distortion
  • IES files available for lighting designs
  • M.O.M: 1 / O.P.Q: 20
Specification
Lamp Specifications:
Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White 1900 lm (3000K) / 1970 lm (4000K) / 1900 lm (6000K)
Lumens from chip (array): Warm White, Cool White, Daylight White 2100 lm (3000K) / 2220 lm (4000K) / 2150 lm (6000K)
Useful lumens (array): Warm White, Cool White, Daylight White 1700 lm (3000K) / 1780 lm (4000K) / 1720 lm (6000K)
Rated Wattage 18W
Rated luminous flux 1700 lm (3000K) / 1780 lm (4000K) / 1720 lm (6000K)
Nominal life time of the lamp 40,000 hrs
Colour temperature 3000/4000/6000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 18W
Rated lamp lifetime 40,000 hrs
Displacement factor 0.977
Lumen maintenance factor at end of nominal life ≥80
Starting time Instant full light
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 594/600/588cd
Rated beam angle 120°
Voltage / Frequency 240V~50-60Hz
Lumens per watt 105 / 109 / 105 lm / W
Not suitable for accent lighting
