KFLATDL24

24W colour temperature selectable recessed LED flat downlight

White | 24W | 3000K (2500 lm) / 4000K (2530 lm) / 6000K (2520 lm) | 40,000 hrs | IP44 (front)



            icon-led

KFLATDL24

White | 24W | 3000K (2500 lm) / 4000K (2530 lm) / 6000K (2520 lm) | 40,000 hrs | IP44 (front)



            icon-led

SKU: 5013845059350 Categories: , , ,
Categories: Downlights, Panels, Vanilla
SKU: 5013845059350
More Information
Features

This range is ideal for many applications, with high lumen efficiency for enhanced energy saving and colour temperature selection allowing the desired lighting effect to be chosen on installation.

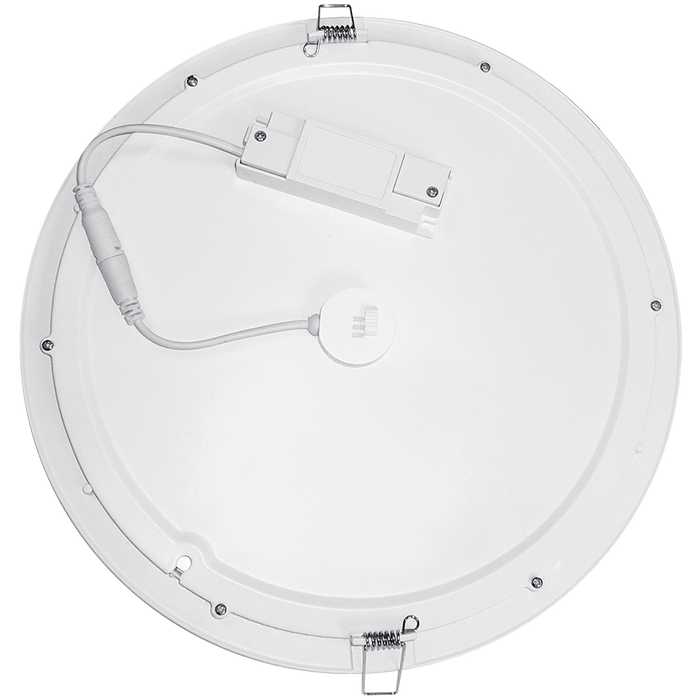

  • Colour temperature selectable – options of 3000K, 4000K & 6000K easily set by a dip switch on the back of the fitting
  • Flame retardant aluminium housing with polycarbonate diffuser, includes spring clips to fix within the ceiling
  • Multiple LED low power array: even, shadow free diffused light output
  • Zero maintenance, integral light source providing instant light output
  • IP44 from the front
  • Flicker free operation
  • Slim profile design to allow installations with narrow ceiling voids
  • Unobtrusive design with neutral white trim
  • Hole cut out size: 280mm
  • High CRI rating of >80, minimising colour distortion
  • IES files available for lighting designs
  • M.O.M: 1 / O.P.Q: 16
Specification
Lamp Specifications:
Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White 2500 lm (3000K) / 2530 lm (4000K) / 2520 lm (6000K)
Lumens from chip (array): Warm White, Cool White, Daylight White 2820 lm (3000K) / 2850 lm (4000K) / 2840 lm (6000K)
Useful lumens (array): Warm White, Cool White, Daylight White 2250 lm (3000K) / 2280 lm (4000K) / 2270 lm (6000K)
Rated Wattage 24W
Rated luminous flux 1700 lm (3000K) / 1780 lm (4000K) / 1720 lm (6000K)
Nominal life time of the lamp 40,000 hrs
Colour temperature 3000/4000/6000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 24W
Rated lamp lifetime 40,000 hrs
Displacement factor 0.972
Lumen maintenance factor at end of nominal life ≥80
Starting time Instant full light
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 754/760/744cd
Rated beam angle 120°
Voltage / Frequency 240V~50-60Hz
Lumens per watt 104 / 105 / 105 lm / W
Not suitable for accent lighting
