EMLED3NM

LED non maintained emergency bulkhead with signs directive legend set

High power non maintained emergency bulkhead incorporating 3 rows of LEDs for higher output and a more even distribution across the fixture. Supplied as standard with Signs Directive legends set.

  • Hinged gear tray & push fit terminal block - allows for quicker and easier installation and maintenance
  • 20mm gland entries as standard
  • Internal or external use
  • Viewing distance 20m
  • High output LEDs with bright white light
  • 3 hour duration in emergency mode
  • Dedicated self adhesive Signs Directive legend pack included with a combination of symbols. Allows multiple exit path designation options
  • LiFePO4 3.2V 1500mAh battery 5 year warranty
Accessories:
Pre-April 2025: EB1 Ni-Cd 3.6V 1500mAh Battery
Post April 2025: EB28 LiFePO4 Battery

View Battery Replacement Service Page

SPECIFICATION

- +
Light SourceLED
FinishWhite
Construction MaterialsPolycarbonate
Nominal Voltage240
Wattage2W
Colour Temperature6000K
Beam Angle120
Lumens150 lm
LMW75 lm/w
CRI75
IP/IK RatingIP65
Average Rated Life30,000
Product Warranty5 Years

DOWNLOADS

- +
Spec Sheet Download
Install Guide Download
IES photometric data file Download
Dimensions Drawing Download
Polar Curve Download

Lighting design service

Eterna have a qualified, experienced and professional lighting design team ready to help you with all your requests from single room offices to multi floor commercial buildings and warehouses. The team also specialise in emergency lighting placement and keeping your plans within budget.

Find out more +

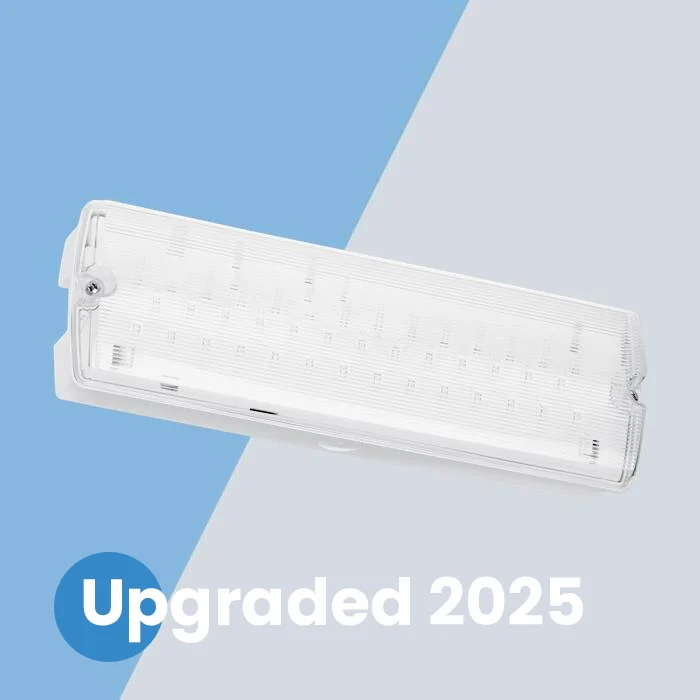

EMLED3M Product Upgrade
