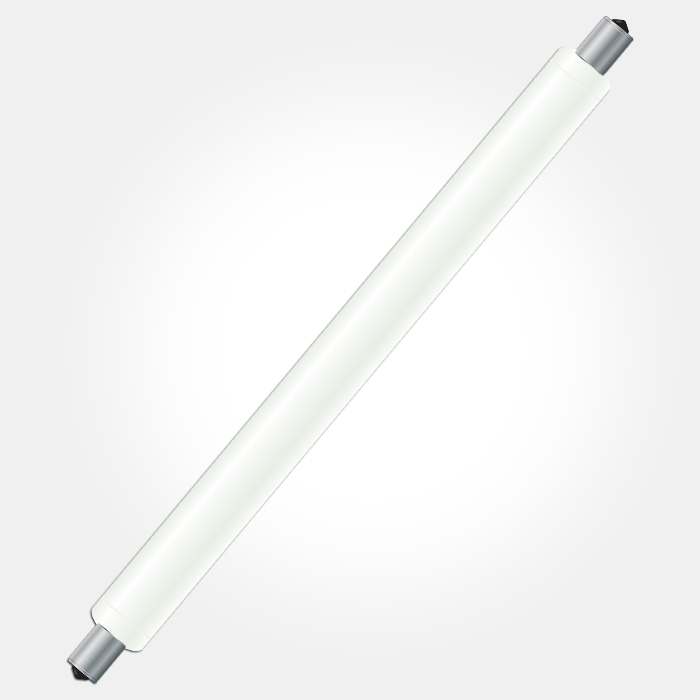

284S15LED
DISCONTINUED - 5W LED S15 lamp
- Ideal replacement for strip lights, shaver lights and many other applications.
- Plastic body construction
- 5W = 470 lumen output: low energy consumption and prolonged lamp life
- Super bright LED replacement for filament 284 mm lamps
- Identical dimensions to standard incandescent strip lamps: allowing retrofit to many fittings
- Minimal heat produced
- High CRI ≥80: minimises colour distortion of illuminated objects
- Instant start
- M.O.M: 1 / O.P.Q: 30
| Lamp Specifications: | |
|---|---|
| Lumens total flux | 470 lm |
| Rated Wattage | 5W |
| Rated luminous flux | 470 lm |
| Nominal life time of the lamp | 15,000 hrs |
| Colour temperature | 3000K |
| Number of switching cycles before premature lamp failure | 7,500 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Lamp dimensions | 284 x 25mm |
| Nominal beam angle | >120° |
| Rated power wattage | 5W |
| Rated lamp lifetime | 15,000 hrs |
| Lamp power factor | >0.5 |
| Lumen maintenance factor at end of nominal life | >70% |
| Starting time | 0.5s |
| Colour rendering | >80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated beam angle | >120° |
| Cap type | S15 |
| Voltage | 240V |
| Lumens per watt | Up to 78 lm / W |
| Weight (kg) | 0.064 |
| TSI Code | 402757702 |
