Features

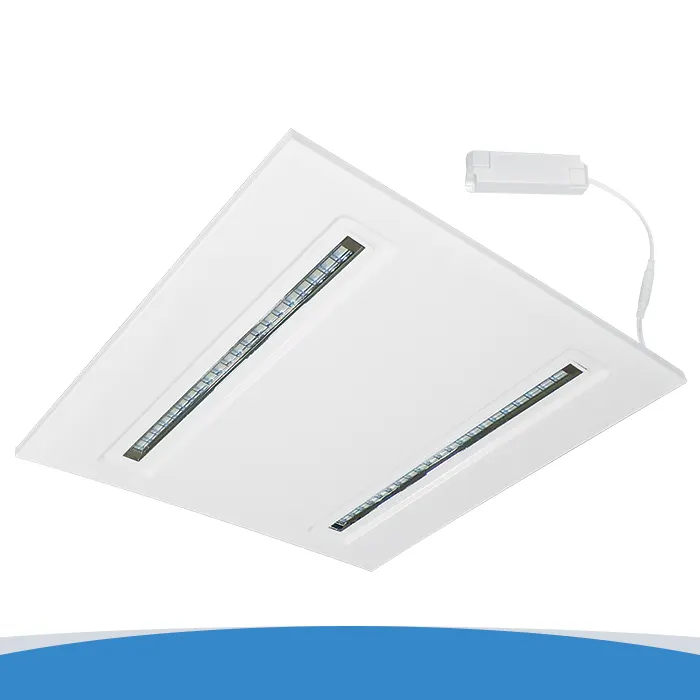

This stylish indirect LED panel is primarily intended for areas where low glare compliance is required, but also suits any installation where high quality installation appearance & superior lighting performance is desired. Specifically engineered to achieve UGR≤19 and offering even light distribution with the minimum number of luminaires per installation.
- Eliminates the need for TP(a) or TP(b) compliance due to steel construction
- Includes a plug and play constant current non-dimmable LED driver
- High CRI (≥80:) to minimise colour distortion of illuminated area & objects
- 4000K colour temperature offering a bright neutral white lighting effect
- White finish matching the majority of exposed T bar ceilings
- Push fit wiring terminal direct into the LED driver, terminal capacity up to 1.5mm2
- Emergency option using emergency battery pack EBPM3 (M3) or see SEEBPM3 (M3 Self Test)
- M.O.M: 1 / O.P.Q: 5

Specification
Lamp Specifications: | |
---|---|
Luminaire lumens (with diffuser) | 3150 lm |
Lumens from chip (no diffuser) | 3420 lm |
Useful lumens | 3020 lm |
Rated Wattage | 30W |
Rated luminous flux | 3020 lm |
Nominal life time of the lamp | 40,000 hrs |
Colour temperature | 4000K |
Number of switching cycles before premature lamp failure | 15,000 |
Warm-up time up to 60 % of the full light output | Instant full light |
Is this product dimmer compatible? | No |
Nominal beam angle | 102° |
Rated power wattage | 30W |
Rated lamp lifetime | 40,000 hrs |
Lamp power factor | >0.9 |
Lumen maintenance factor at end of nominal life | ≥0.70 |
Starting time | <0.1s |
Colour rendering | ≥80 |
Colour consistency | Within a 6 step Macadam ellipse |
Rated peak intensity | 1290cd |
Rated beam angle | 102° |
Voltage / Frequency | 240V~50Hz |
Lumen efficacy | 105 lm / W |
Class 2 double insulated | |
Not suitable for accent lighting |
