600PANUGR

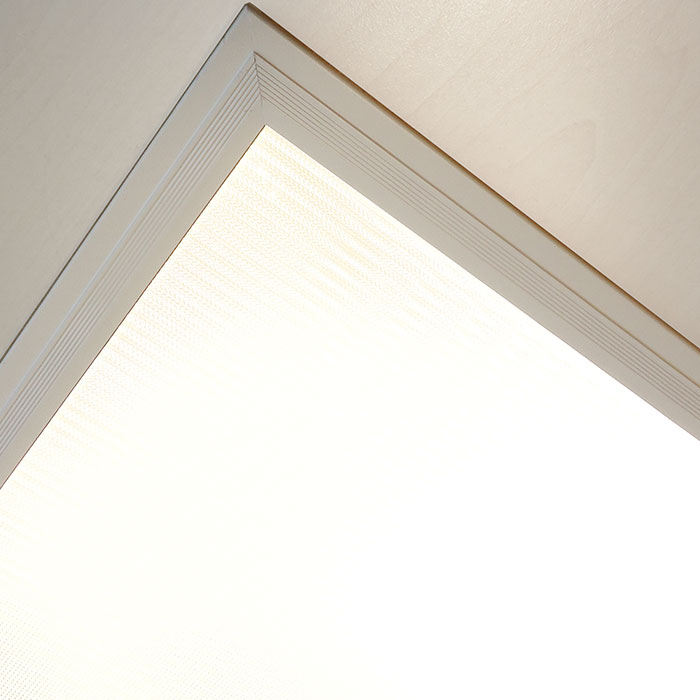

DISCONTINUED - 40W 600x600mm UGR ≤19 LED slim panel light
OBSOLETED PRODUCT
White | 40W | 4000K | 3500 lm | 35,000 hrs | A+ Rated
600PANUGR
OBSOLETED PRODUCT
White | 40W | 4000K | 3500 lm | 35,000 hrs | A+ Rated
Features
This LED edge lit panel is an ideal solution for office lighting, educational premises and wherever minimised glare is required. Designed with optical glare control to assist with LG7 workplace guidelines and compliant to display screen equipment requirements within EN 12464 providing UGR < 19 in any room size and CRI > 80, it is available with recessed, surface and suspended mounting options.
PERFECT FOR OFFICE, COMMERCIAL AND EDUCATIONAL APPLICATIONS
- Low glare UGR ≤19 panel which aids LG7 compliance
- 4000K colour temperature, edge lit with even shadow free light distribution
- Ultra slim profile and a white trim to match the majority of T. bar ceilings
- Can be recessed in the ceiling or suspended from wires
- Ability to be converted into an emergency luminaire
- Surface mounting can be achieved through the mounting box available separately
- CRI Ra:≥80: High CRI to minimise colour distortion of illuminated products
- Supplied with Lifud branded driver
- M.O.M: 1 / O.P.Q: 5
Specification
| (Pre-dimmed) Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 3500 lm |
| Lumens from chip (no diffuser) | 4600 lm |
| Useful lumens | 3400 lm |
| Rated Wattage | 40W |
| Rated luminous flux | 3400 lm |
| Nominal life time of the lamp | 35,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | 30,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | Yes |
| Nominal beam angle | 115° |
| Rated power wattage | 40W |
| Rated lamp lifetime | 35,000 hrs |
| Lamp power factor | 0.92 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | <0.5s |
| Colour rendering | 80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 1480cd |
| Rated beam angle | 115° |
| Voltage / Frequency | 240V~50Hz |
| Lumens per watt | Up to 87 lm / W |
| Weight (kg) | 3.101 |
| TSI Code | 405435827 |
| Not suitable for accent lighting | |
| Please note: there will be a slight reduction in lumen output if using a dimmer | |
