ATOM5

Atom LED bulkhead

Highly cost effective, compact, ultra low energy, modern design utility bulkhead
  •  Instant start to full illumination level: giving crisp, super bright light output (4200K)
  • Polycarbonate construction: impact and corrosion resistant
  •  External fixing points: for quick & easy installation

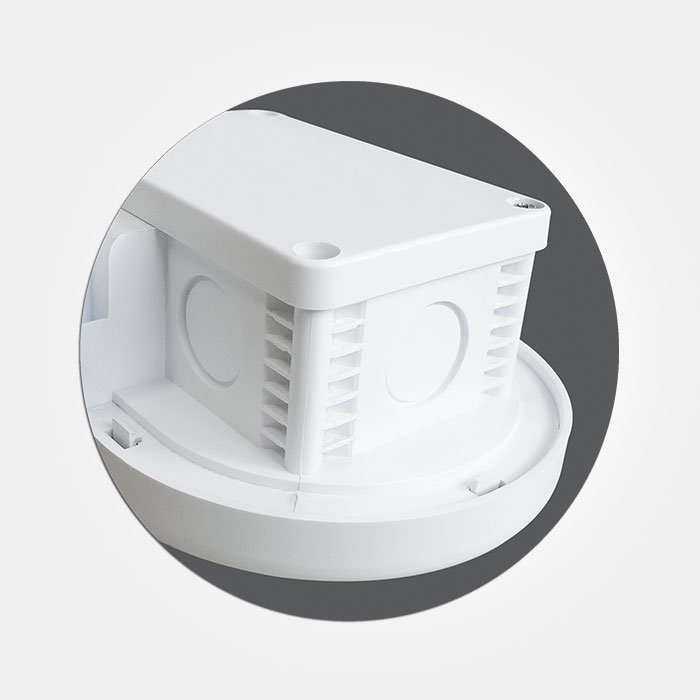

  • 3 x 20mm cable entries: offering multiple installation options
  • Compact design
  •  M.O.M: 1 / O.P.Q: 20

Lamp Specifications:
Lumens total flux 450 lm
Lumens 120° flux 405 lm
Rated Wattage 6W
Rated luminous flux 450 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4200K
Number of switching cycles before premature lamp failure ≥15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 10W
Rated lamp lifetime 25,000 hrs
Lamp power factor >0.5
Lumen maintenance factor at end of nominal life ≥0.70
Starting time <0.1s
Colour rendering ≥80
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 160cd
Rated beam angle 120°
Charger Output Voltage 240V
Lumens per watt Up to 75 lm / W
Weight (kg) 0.271
TSI Code 401840607
Not suitable for accent lighting
