BHPIRCS

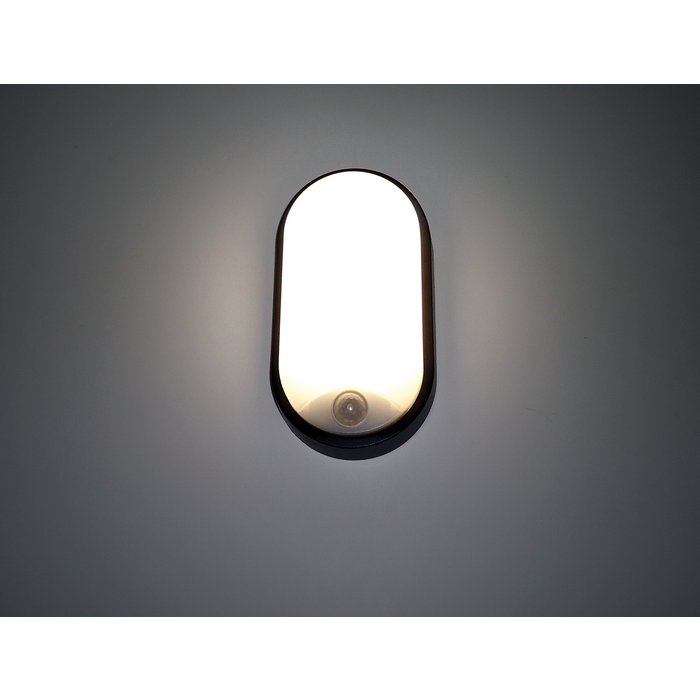

10W LED CCT bulkhead with 120° PIR
Black | 10W | 3000/4000/6000K | 1166-1252 lm | 50,000 hrs | IP65 | IK05
BHPIRCS
Black | 10W | 3000/4000/6000K | 1166-1252 lm | 50,000 hrs | IP65 | IK05
Features
Durable and attractive oval waterproof bulkhead with selectable CCT and PIR, perfect for exteriors and high-traffic circulation areas
- Compact and simple IP65 waterproof bulkhead perfect for exteriors and entryways
- Adjustable CCT to suit installation preferences
- Integral PIR sensor with 120° detection range for useful light when it is needed most
- Adjustable lux level and time adjustment from 10 seconds to 5 minutes to optimise security and efficiency
- Long lifetime of 50,000hrs and a 5 year warranty
- M.O.M: 1 / O.P.Q: 10
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) – 3000/4000/6000K | 1166 / 1252 / 1232 lm |
| Lumens from chip (no diffuser) – 3000/4000/6000K | 1312 / 1408 / 1386 lm |
| Useful lumens – 3000/4000/6000K | 1400 / 1502 / 1478 lm |
| Rated Wattage | 10W |
| Rated luminous flux – 3000/4000/6000K | 1400 / 1502 / 1478 lm |
| Nominal life time of the lamp | 50,000 hrs |
| Colour temperature | 3000/4000/6000K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 10W |
| Rated lamp lifetime | 50,000 hrs |
| Displacement factor | 0.91 |
| Lumen maintenance factor at end of nominal life | 0.9 |
| Starting time | <0.3s |
| Colour rendering | 80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity – 3000/4000/6000K | 316/346/323cd |
| Rated beam angle | 120° |
| Voltage / Frequency | 220-240V~50Hz |
| Lumen efficacy – 3000/4000/6000K | 116.6/125.2/123.2 lm / W |
| This product contains a Light Source of Energy Efficiency Class D | |
| Class 2 double insulated | |
| Not suitable for accent lighting | |
