CIROPALMW3

DISCONTINUED - Emergency + multi-function microwave sensor Fresh Prince circular LED utility fitting with opal diffuser

OBSOLETED PRODUCT

Fresh Prince Range

Opal | 18W | 4000K | 1400 lm | 35,000 hrs | IP65 | IK08



icon-18w  icon-4000k  icon-1400lm  icon-35000hrs  icon-ip65      icon-led  icon-emergency    icon-microwave-sensor  icon-5year

CIROPALMW3

OBSOLETED PRODUCT

Fresh Prince Range

Opal | 18W | 4000K | 1400 lm | 35,000 hrs | IP65 | IK08



icon-18w  icon-4000k  icon-1400lm  icon-35000hrs  icon-ip65      icon-led  icon-emergency    icon-microwave-sensor  icon-5year

SKU: 5013845048712 Category:
Categories: Obsoleted
SKU: 5013845048712
More Information
Features

High output, energy saving utility LED wall / ceiling fixtures with standard, emergency & multi-function microwave control versions. Both opal & clear versions are available for either smooth diffused effect or maximum light output. Diffusers are supplied not fitted to bases and fully captive diffuser fixing screws are utilised to save installation time. Multi-function microwave versions provide the best in flexibility & energy saving options.

High performing, durable range of functional bulkheads suitable for open access and communal areas.

MULTI-PURPOSE UTILITY FITTINGS, PERFECT FOR OUTDOOR APPLICATIONS

Battery replacement service available. Click HERE for details.

  • Full circular LED array
  • Hinged gear tray

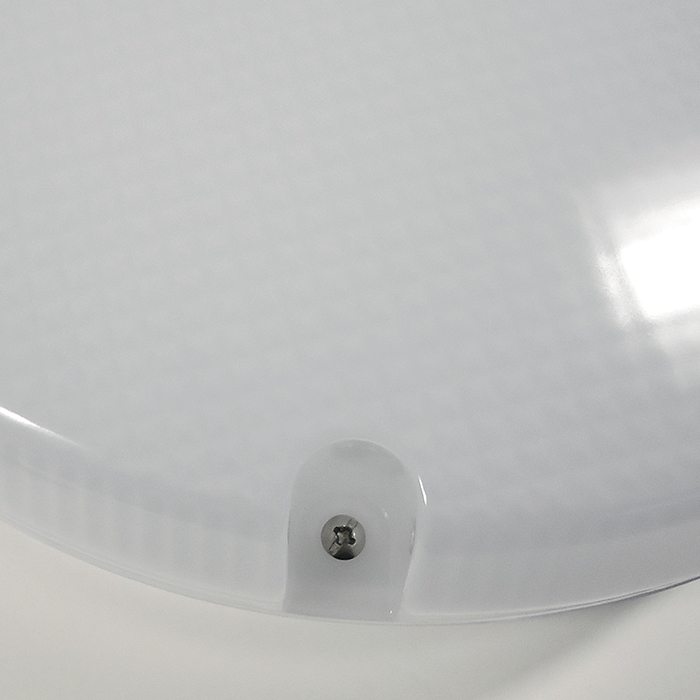

  • Captive fixing screws
  • Four 20mm cable entries on the side and one to the rear
  • 3 hour maintained mode as standard which can also be configured for non maintained operation
  • Battery – Li-Ion 3.2V 1500mAh
  • Battery 1 year warranty – Replacement battery code: EB11
  • M.O.M: 1 / O.P.Q: 1
  • Detection sensitivity adjustable – 10/50/75/100%
  • Daylight sensor adjustable – 5/15/50 Lux/Disable
  • Mounting height – maximum 6mtr
  • Detection zone – maximum 16mtr diameter x 6mtr height
  • Detection angle – 150° (wall mounted), 360° (ceiling mounted)

MULTI-FUNCTION MICROWAVE SENSOR WITH 3 INSTALLER OPTIONS:

  • Standard On/Off Mode: operation at 100% light level then off after last presence detection. Operation on time can be set at 5 seconds/90 seconds/3 minutes/10 minutes
  • “Corridor Mode”: operation at 100% light level after last presence detection which can be set at 5 seconds/90 seconds/3 minutes/10 minutes, then continuous operation at 10% light level
  • “Corridor” & Off Mode: operation at 100% light level after last presence detection which can be set at 5 seconds/90 seconds/3 minutes/10 minutes, then operation at 10% light level which can be set at 30 seconds or 10 minutes, then off
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 1400 lm
Lumens from chip (no diffuser) 1750 lm
Rated Wattage 18W
Rated luminous flux 1350 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 18W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life ≥0.70
Starting time <0.1s
Colour rendering 80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 520cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 77 lm / W
Weight (kg) 1.75
TSI Code 404494911
Not suitable for accent lighting
