CO18EM3

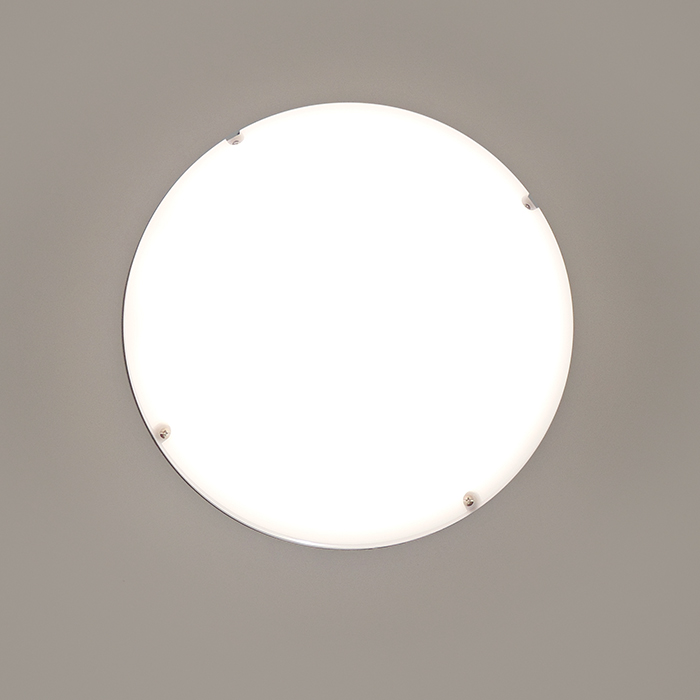

Chameleon Range - IP65 circular emergency LED colour selectable ceiling/wall light

Chameleon Range

White | 18W | 35,000 hrs | IP65 | IK08
• 3100K/1580 lm (Warm White) • 4200K/1640 lm (Cool White) • 6400K/1600 lm (Daylight)



               icon-ip65    icon-led  icon-5year



CO18EM3

Chameleon Range

White | 18W | 35,000 hrs | IP65 | IK08
• 3100K/1580 lm (Warm White) • 4200K/1640 lm (Cool White) • 6400K/1600 lm (Daylight)



               icon-ip65    icon-led  icon-5year



Categories: Ceiling/Wall/Bulkheads, Emergency Lighting
SKU: 5013845052870
More Information
Features

A flexible range of LED wall/ceiling fittings with standard, emergency, microwave, microwave emergency and photocell variants. The ability to easily choose the colour temperature to suit the installation is complimented with the accessories available. The accessories enable you to transform the fittings from utility to decorative. Along with different colour options to suit the application as required.

Flexible range offering multiple functions and trim options suitable for functional and decorative applications.

  • Colour temperature selectable – options of 3100K, 4200K & 6400K easily set by a dip switch on the driver
  • Full circular LED array
  • Hinged gear tray
  • Push fit terminal block
  • Stainless Steel captive fixing screws
  • Polycarbonate diffuser
  • Central BESA box mounting option on the base and four 20mm side entries
  • Optional trims available separately: white grill GRILLWH, black grill GRILLBK, white eyelid EYEWH, black eyelid EYEBK, white full CIRCWH, black full CIRCBK, chrome full CIRCCR, prismatic diffuser CPRIS
  • 3 hour maintained mode as standard which can also be configured for non maintained operation
  • Battery – LiFePO4 3.2V 1500mAh
  • Battery 5 year warranty – Replacement battery code: EB11
  • Part of the Chameleon range – see HERE for more details
  • M.O.M: 1 / O.P.Q: 10
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 1850/1640/1600 lm
Lumens from chip (no diffuser) 1900 lm
Useful lumens 1530/1580/1530 lm
Rated Wattage 18W
Rated luminous flux 1530/1580/1530 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 3100/4200/6400K
Number of switching cycles before premature lamp failure ≥15,000
Warm-up time up to 60% of the full light output <1s
Is this product dimmer compatible? No

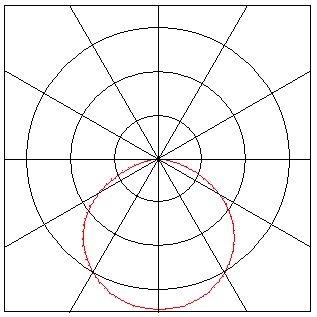

Nominal beam angle 120°
Rated power wattage 18W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life ≥0.7
Starting time <0.1s
Colour rendering ≥80
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 370cd
Rated beam angle 120°
Voltage / Frequency 240V~50-60Hz
Lumens per watt
Weight (kg)
TSI Code 406599801
Not suitable for accent lighting
