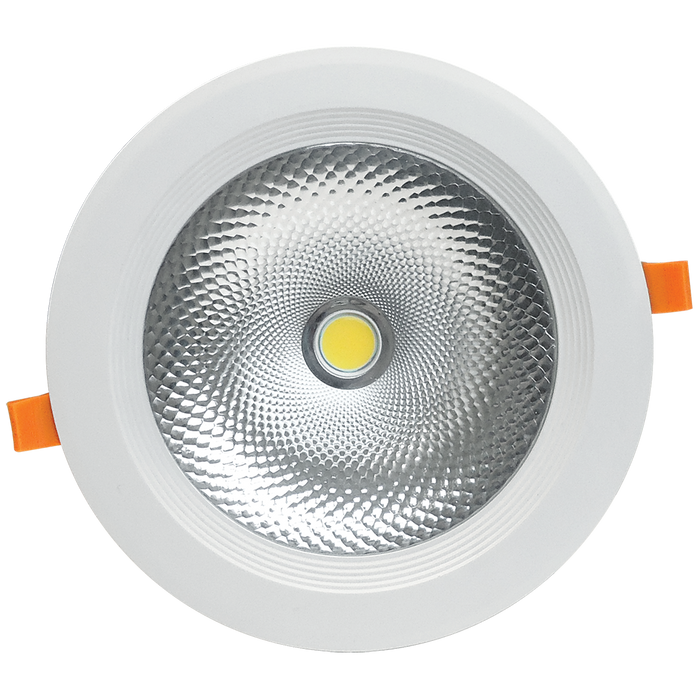

COMDL40
40W dimmable COB LED recessed commercial downlight
White | 40W | 4000K | 3500 lm | 30,000 hrs | IP20
COMDL40
White | 40W | 4000K | 3500 lm | 30,000 hrs | IP20
Features
This range is ideal for many applications, especially the retail environment, where the crisp bright lighting effect offered by the clear diffuser is often preferred.
- Zero maintenance, integral light source providing instant light output
- LED performance allows for “like for like” replacement of fluorescent PL downlights
- Includes a plug and play constant current 0-10V dimmable LED driver
- Recessed polished diamond facet reflector with glass front to reduce glare
- Flame retardant aluminium housing, includes spring clips to fix within the ceiling
- IES files available for lighting designs
- High CRI rating of >80, making them perfect for retail applications, minimising colour distortion
- Minimum free air space around the fitting 150mm. Cannot be directly covered with insulation
- Lumen efficacy 87.5 lm / W
- Ability to be converted into an emergency luminaire: see emergency battery packs – EBPM3, SEEBPM3, EBPM3LI
- Hole cut out size: 190mm
- M.O.M: 1 / O.P.Q: 10
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 3500 lm |
| Lumens from chip (no diffuser) | 3840 lm |
| Useful lumens | 3500 lm |
| Rated Wattage | 40W |
| Rated luminous flux | 3500 lm |
| Nominal life time of the lamp | 30,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | Yes |
| Nominal beam angle | 90° |
| Rated power wattage | 40W |
| Rated lamp lifetime | 30,000 hrs |
| Lamp power factor | 0.95 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | <0.5s |
| Colour rendering | ≥80 |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 4565cd |
| Rated beam angle | 90° |
| Lumen efficacy | 87.5 lm / W |
| Voltage / Frequency | 240V~50Hz |
| Class 2 double insulated | |
