COMRCS25

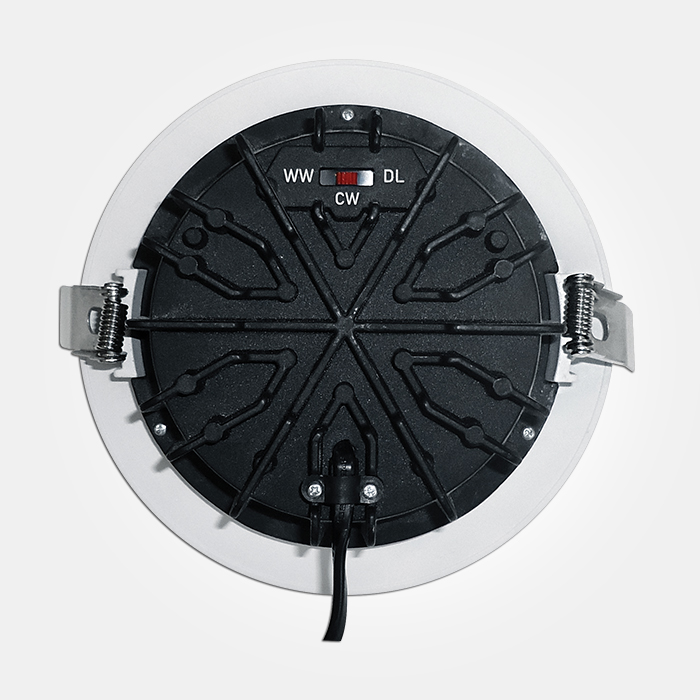

25W dimmable COB LED recessed colour temperature selectable commercial downlight
White | 25W | 45,000 hrs | IP54
• 3000K/2490 lm (Warm White) • 4000K/2685 lm (Cool White) • 6000K/2580 lm (Daylight)
COMRCS25
White | 25W | 45,000 hrs | IP54
• 3000K/2490 lm (Warm White) • 4000K/2685 lm (Cool White) • 6000K/2580 lm (Daylight)
Features
This range Is ideal for many applications, with high lumen efficiency for enhanced energy saving and colour temperature selection allowing the desired lighting effect to be chosen on installation.
- Zero maintenance, integral light source providing instant light output
- LED performance allows for “like for like” replacement of fluorescent PL downlights
- Includes a plug and play constant current 0-10V dimmable LED driver
- Recessed light source with opal diffuser and polished reflector to reduce glare
- Flame retardant aluminium housing, includes spring clips to fix within the ceiling
- IES files available for lighting designs
- High CRI rating of >80, making them perfect for retail applications, minimising colour distortion
- Minimum free air space around the fitting 50mm. Cannot be directly covered with insulation
- Lumen efficacy – 3/4/6000K of 114 / 107.4 / 110 lm / W
- Ability to be converted into an emergency luminaire see EBPM3, SEEBPM3, EBPM3LI

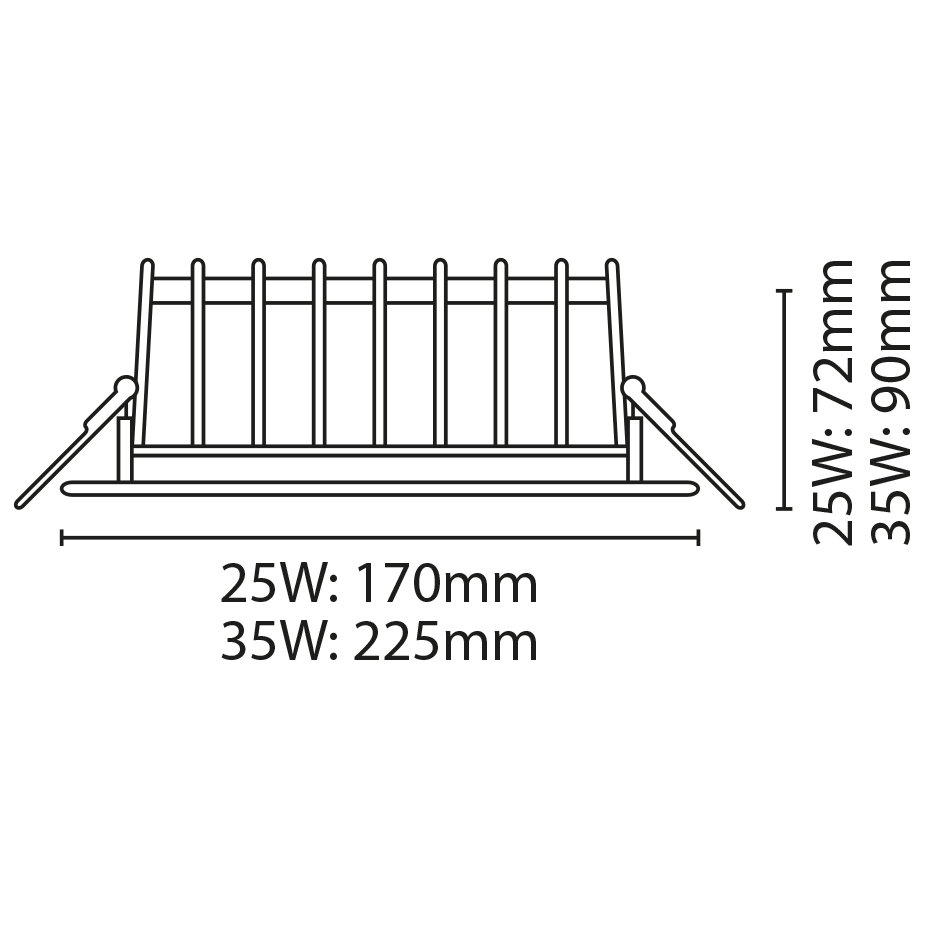

- Hole cut out size: 150mm
- M.O.M: 1 / O.P.Q: 20
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) – Warm White, Cool White, Daylight White | 2490/2685/2580 lm |
| Lumens from chip (no diffuser) – Warm White, Cool White, Daylight White | 2960/3115/3045 lm |
| Useful lumens – Warm White, Cool White, Daylight White | 2490/2685/2580 lm |
| Rated Wattage | 25W |
| Rated luminous flux – Warm White, Cool White, Daylight White | 2490/2685/2580 lm |
| Nominal life time of the lamp | 45,000 hrs |
| Colour temperature | 3000/4000/6000K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | Yes |
| Nominal beam angle | 90° |
| Rated power wattage | 25W |
| Rated lamp lifetime | 45,000 hrs |
| Lamp power factor | >0.9 |
| Lumen maintenance factor at end of nominal life | ≥70% |
| Starting time | 0.1s |
| Colour rendering | ≥80 |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 1397cd |
| Rated beam angle | 90° |
| Voltage / Frequency | 240V~50Hz |
| Lumen efficacy – Warm White, Cool White, Daylight White | 114 / 107.4 / 110 lm / W |
| Class 2 double insulated | |
| Not suitable for accent lighting | |
