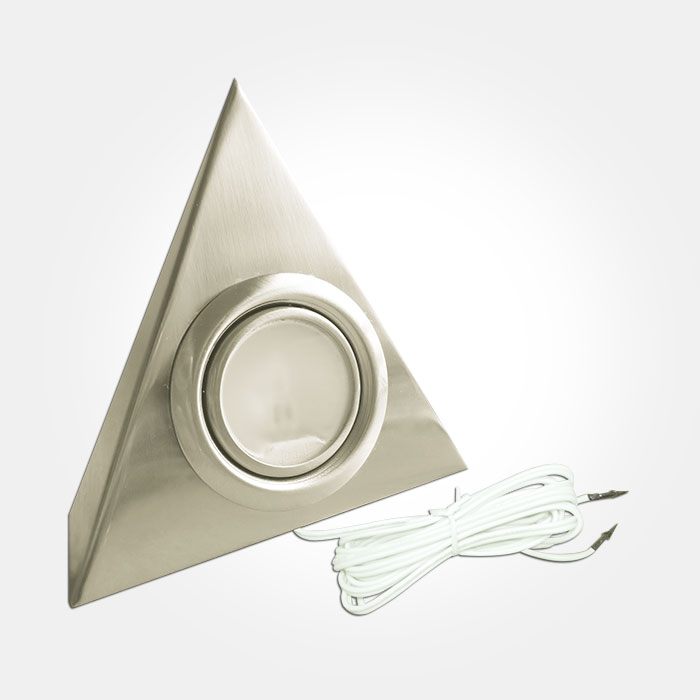

D039
DISCONTINUED - 20W low voltage triange light
- Requires 1 x suitable 12V G4 M47 halogen capsule (included). Fitting is rated at 20W max
- This luminaire is compatible with bulbs of the energy classes: B to E and is sold with a bulb of the energy class: B
- Pressed steel construction
- Pre-wired with mini connector and 2.4 metres of silicone cable: easy installation
- Frosted glass diffuser: soft lighting effect
- M.O.M: 3 / O.P.Q: 45
| Lamp Specifications: | |
|---|---|
| Lumens total flux | 300 lm |
| Lumens 90° flux | 260 lm |
| Rated Wattage | 20W |
| Rated luminous flux | 260 lm |
| Nominal life time of the lamp | 2,000 hrs |
| Colour temperature | 2700K |
| Number of switching cycles before premature lamp failure | 10,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Lamp dimensions (Ø/W) | 30 x 8mm |
| Nominal beam angle | 38° |
| Rated power wattage | 20W |
| Rated lamp lifetime | 2,000 hrs |
| Lamp power factor | ≥0.5 |
| Lumen maintenance factor at end of nominal life | >75% |
| Starting time | <0.2s |
| Colour rendering | 99% |
| Rated peak intensity | 320cd |
| Rated beam angle | 38° |
