Orba.
E02BAACW - Orba Power and CCT Switchable LED IP65 White Bulkhead
The Orba is a versatile IP65 bulkhead designed to meet your lighting needs with 3 adjustable outputs and 5 colour temperature options. Multiple conduit entries and a BESA fixing point enables the fitting to suit a number of applications, while the plug and play emergency and microwave sensor accessories offer quick and convenient flexibility.
- Power selectable 8W, 14W, 16W
- Colour temperature selectable 2700K, 3000K, 4000K, 5000K, 6000K
- IP65 and IK10 rating
- Multiple 20mm conduit entry points and rear BESA mounting

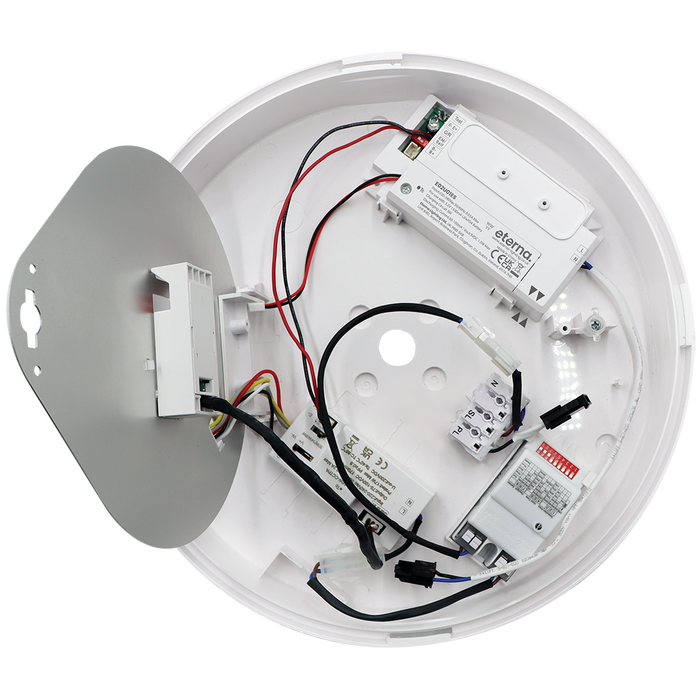

- Twist on opal diffuser, clip on white trim and hinged LED tray
- Available accessories in full black, full chrome, black eyelid or white eyelid trims
- Plug and play emergency pack, microwave sensor, plus a microwave sensor with step dim function
- Loop in, loop out push fit terminals
- 5 year warranty
SPECIFICATION
-
+
| Light Source | LED |
| Finish | White |
| Construction Materials | Polycarbonate |
| Construction Materials 2 | ABS |
| Nominal Voltage | 240 |
| Wattage | 8W / 14W / 16W |
| Colour Temperature | 2700K / 3000K / 4000K / 5000K / 6000K |

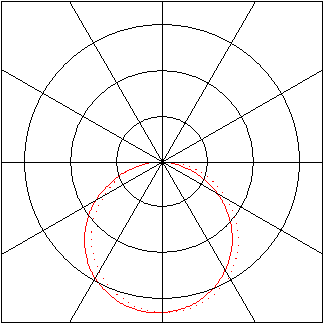

| Beam Angle | 120 |
| Lumens | 1000 - 1900 lm |
| LMW | 125 - 119 lm/w |
| CRI | 80 |
| IP/IK Rating | IP65 / IK10 |
| Average Rated Life | 50,000 |
| Product Warranty | 5 Years |
