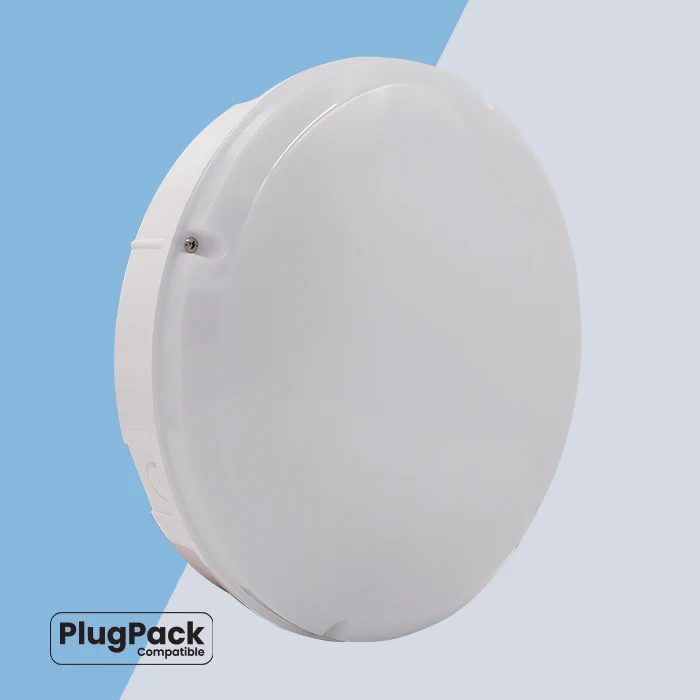

Kora.

Power CCT Switchable IP65 Utility Bulkhead

The Kora utility bulkhead features an opal diffuser for a perfect balance of visual comfort and light efficiency. This range is fully adjustable with 3 outputs and 5 colour temperature options.

Multiple conduit entries and a BESA fixing point enables the fitting to suit a number of applications, while the plug and play emergency and microwave sensor accessories offer quick and convenient flexibility. A photocell option is also available for added convenience in outdoor applications.

  • Power selectable 8W, 14W, 16W

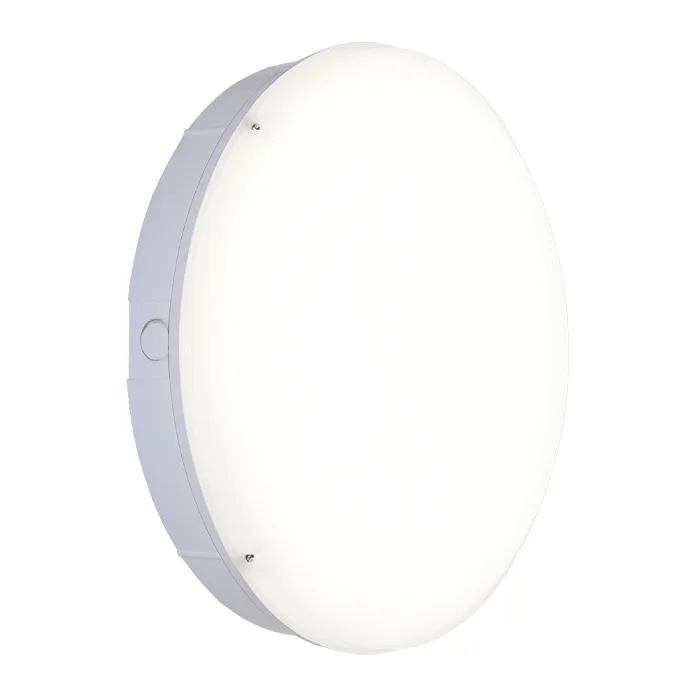

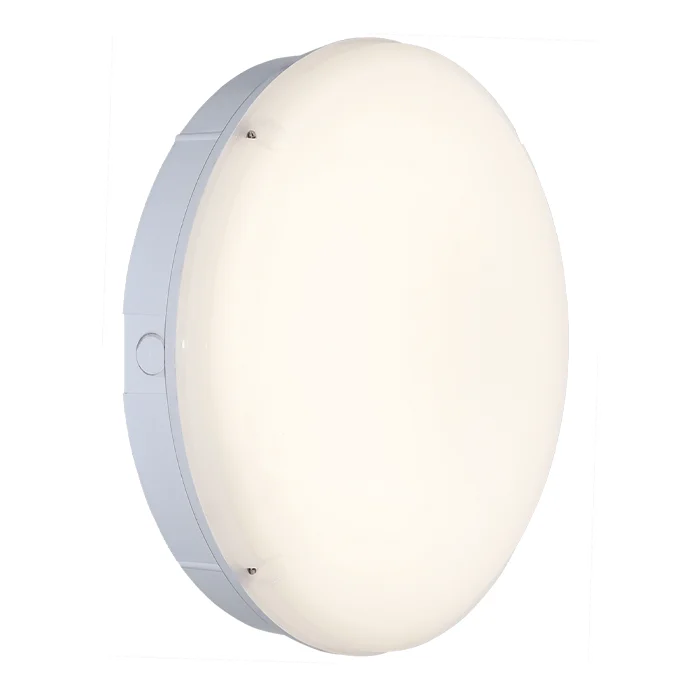

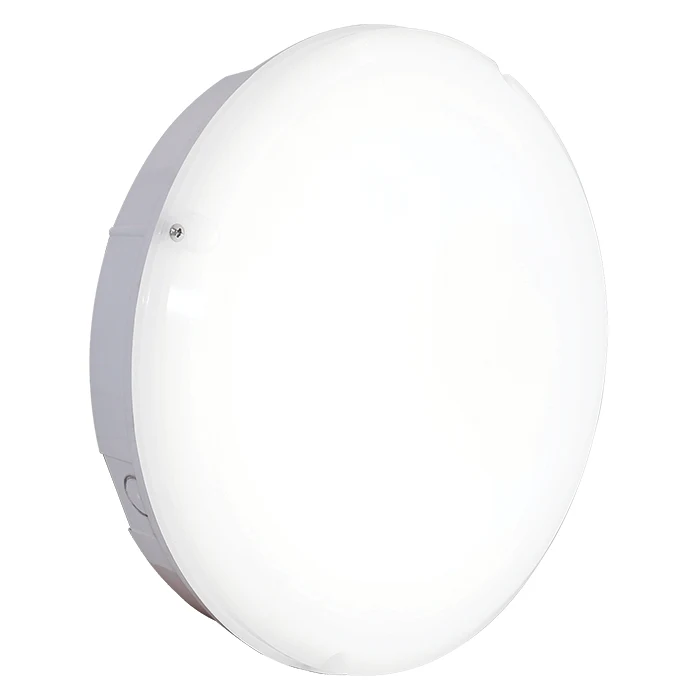

  • Colour temperature selectable, 2700K, 3000K, 4000K, 5000K, 6000K
  • IP65 and IK10 rating

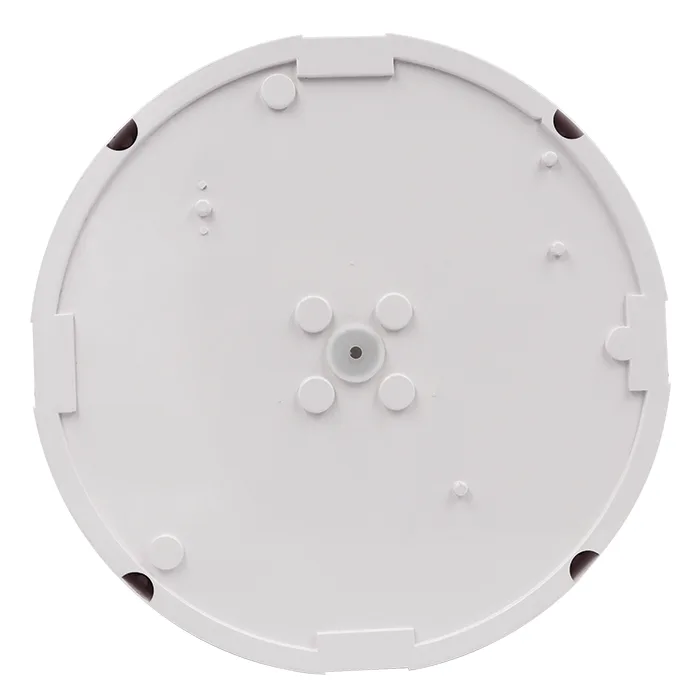

  • Multiple 20mm conduit entry points and rear BESA mounting
  • Opal screw on diffusers
  • Plug and play emergency pack and on/off or step dim sensors available

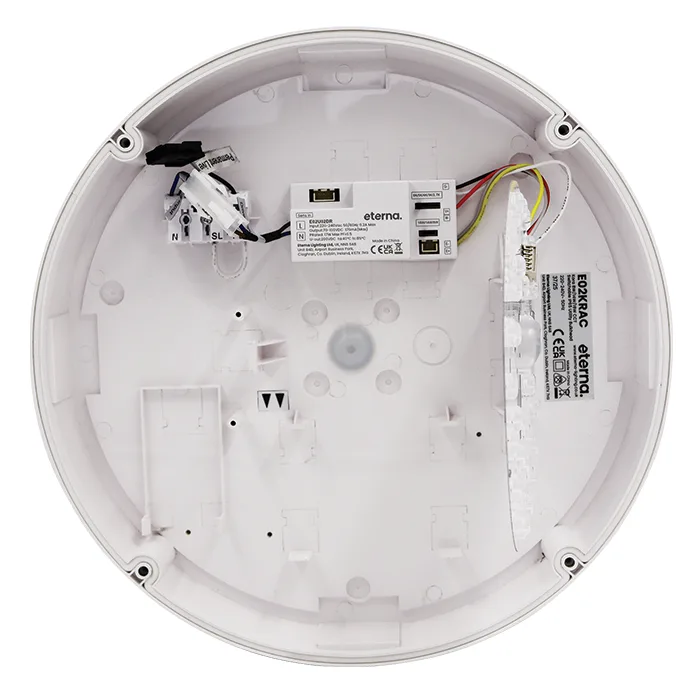

  • Loop in, loop out push fit terminals
  • Clip-on decorative trims available
  • Photocell version preset dusk till dawn operation
  • 5 year warranty
Model Variations:
E02KRAC: Kora Utility Bulkhead
E02KRAC6: Kora Photocell Utility Bulkhead

SPECIFICATION

- +
Light SourceLED
FinishWhite
Construction MaterialsPolycarbonate
Construction Materials 2ABS
Nominal Voltage240
Wattage8W/14W/16W
Colour Temperature2700K/3000K/4000K/5000K/6000K
Beam Angle120
Lumens1000-1900lm
LMW119-125lm/W
CRI80
IP/IK RatingIP65/IK10
Average Rated Life50,000
Product Warranty5 Years

DOWNLOADS

- +
Spec Sheet Download
Install Guide Download
IES photometric data file Download

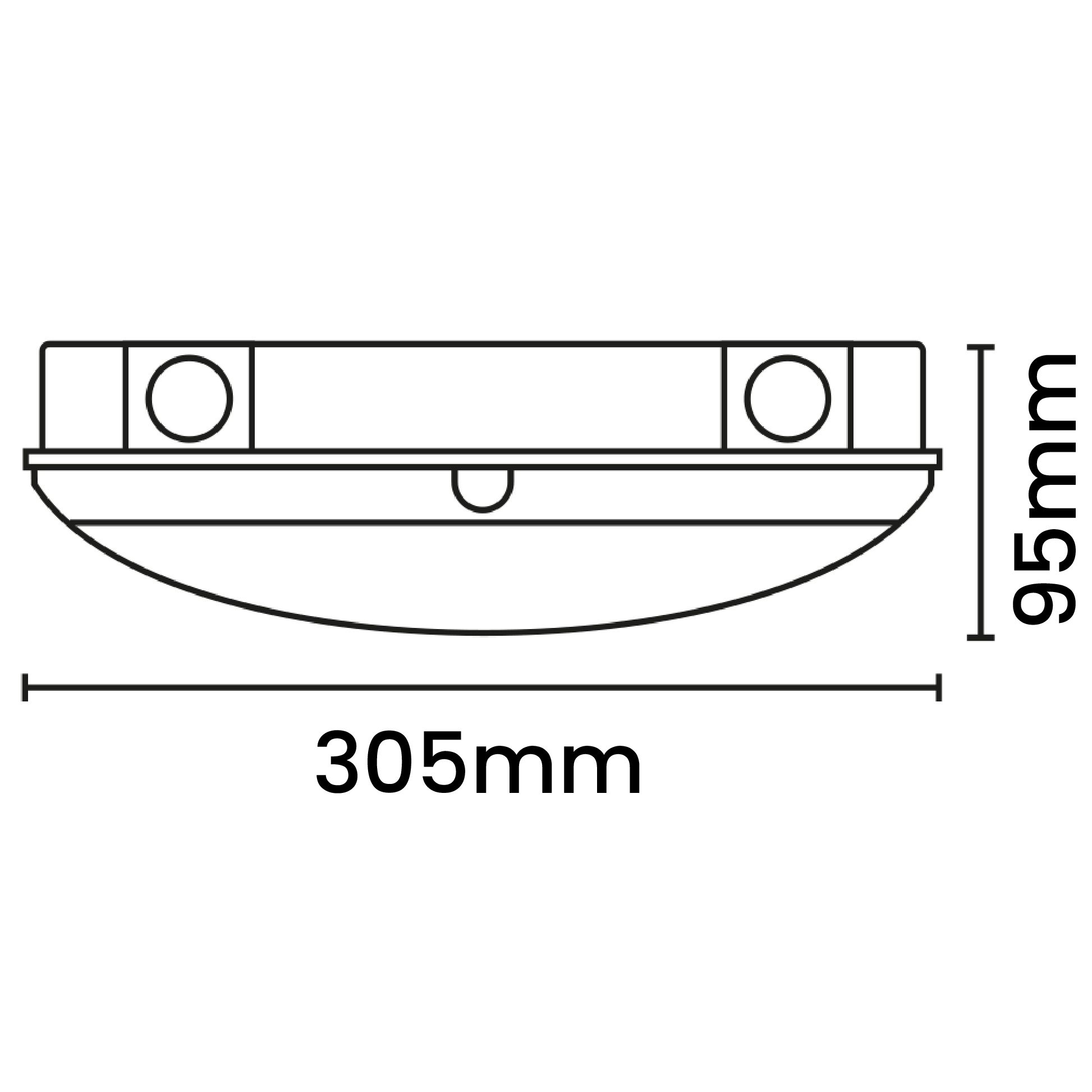

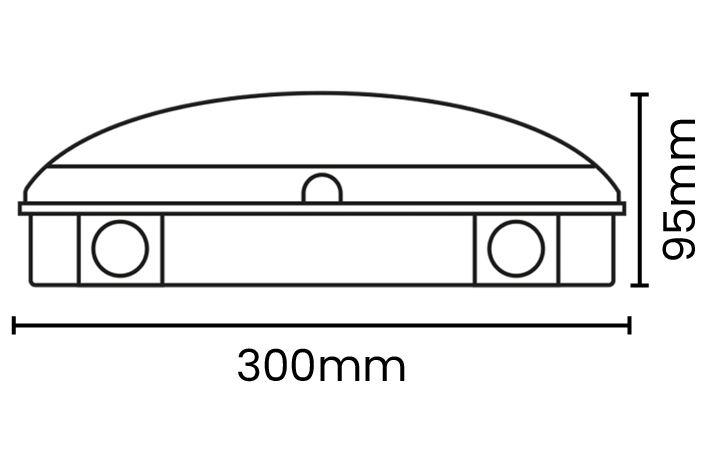

Dimensions Drawing Download
Polar Curve Download

Lighting design service

Eterna have a qualified, experienced and professional lighting design team ready to help you with all your requests from single room offices to multi floor commercial buildings and warehouses. The team also specialise in emergency lighting placement and keeping your plans within budget.

Find out more +

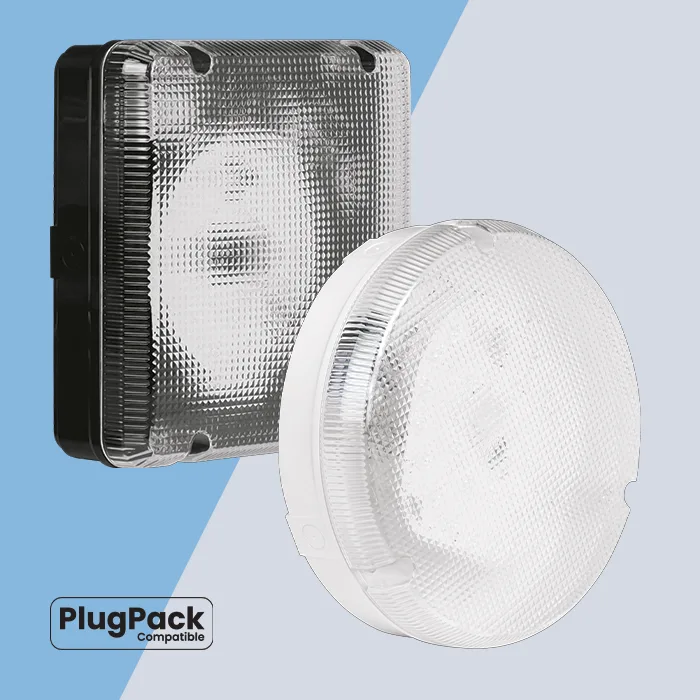

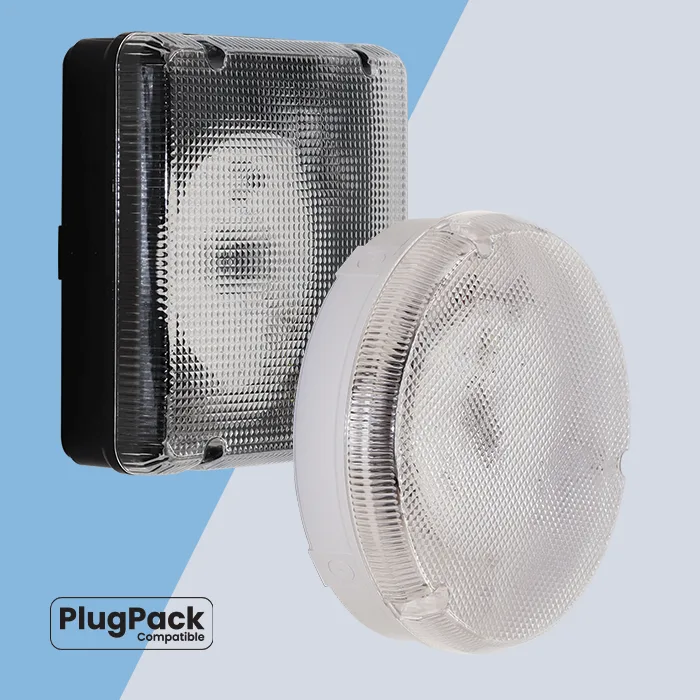

Reba Prismatic Product Pic
