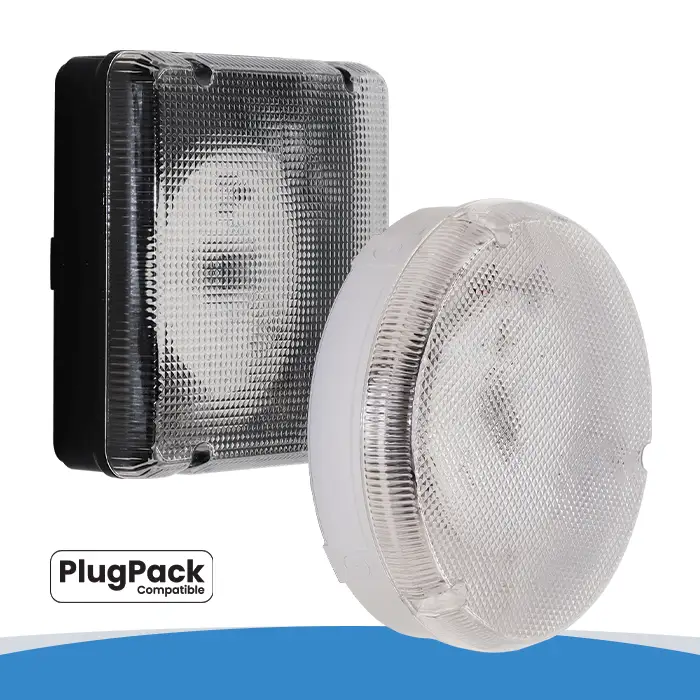

Reba. Prismatic

Reba Power CCT Switchable Prismatic Utility Bulkheads

The Reba IP65 prismatic utility bulkhead comes in circular, square, white and black to suit the varying project requirements. The range is fully adjustable with 3 outputs and 5 colour temperature options.

Multiple conduit entries and a BESA fixing point ensures multiple install methods are met, while the plug and play emergency and microwave sensor accessories offer quick and convenient flexibility.

  • Power selectable: 8W, 14W, 16W
  • Colour temperature selectable
  • IP65 and IK10 rating
  • Multiple 20mm conduit entry points and rear BESA mounting
  • Prismatic and Opal screw on diffusers
  • Plug and play emergency pack and on/off or step dim sensors available

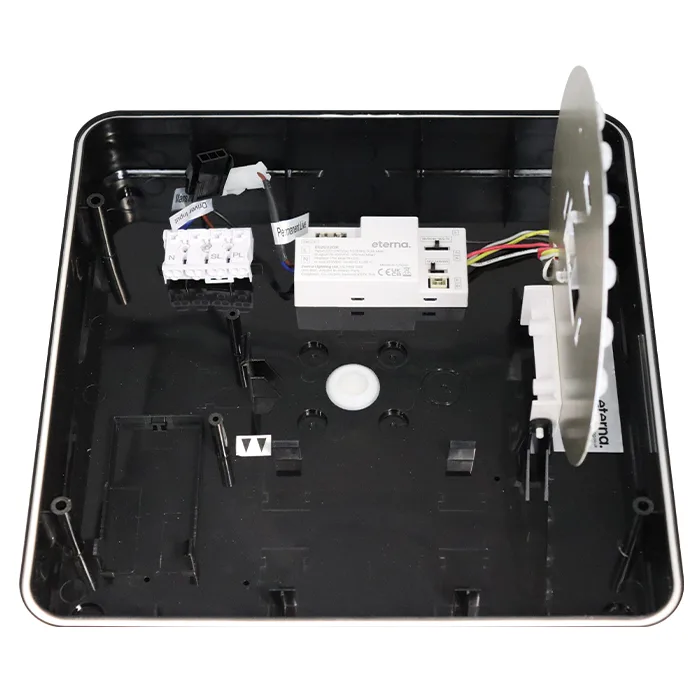

  • Loop in, loop out push fit terminals
  • 5 year warranty

Base Models:

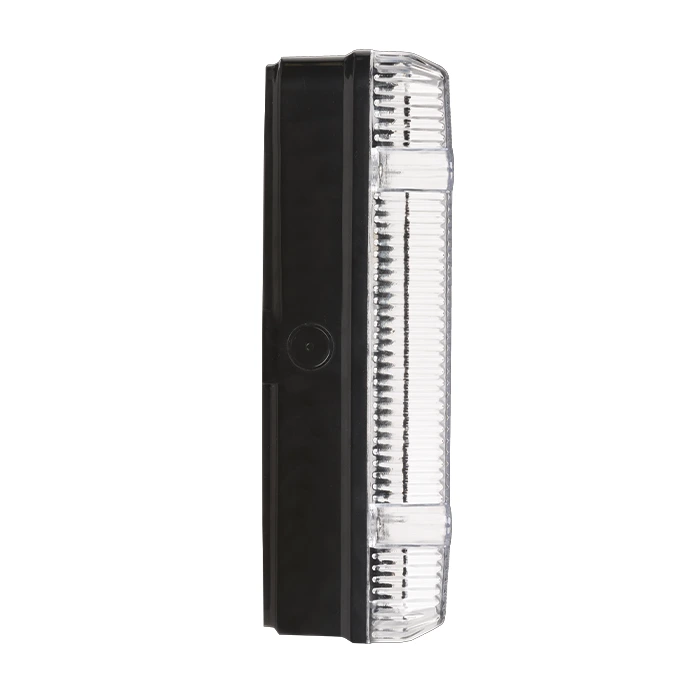

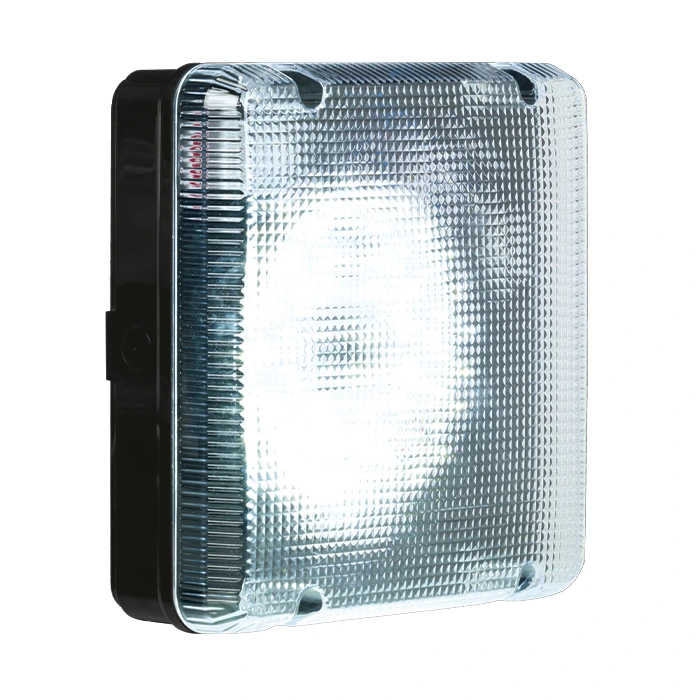

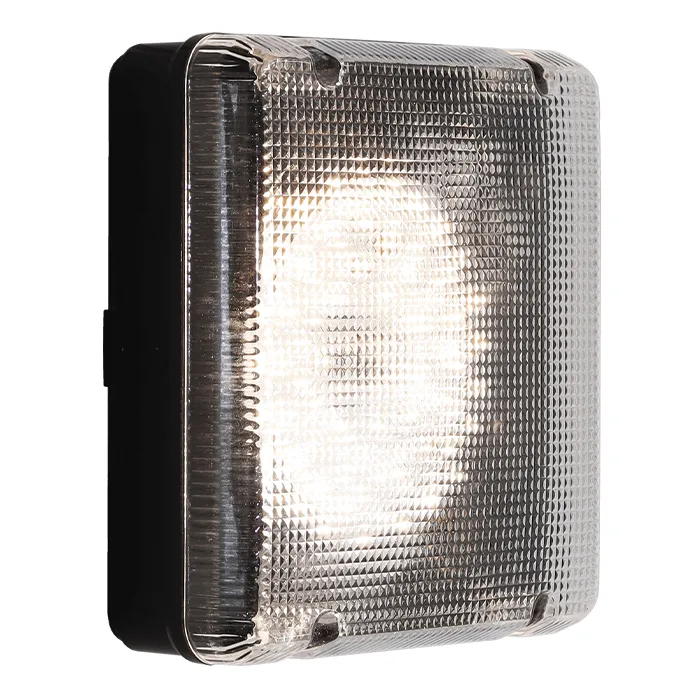

E02RAS1B: Square Prismatic Black Bulkhead | COMING SOON

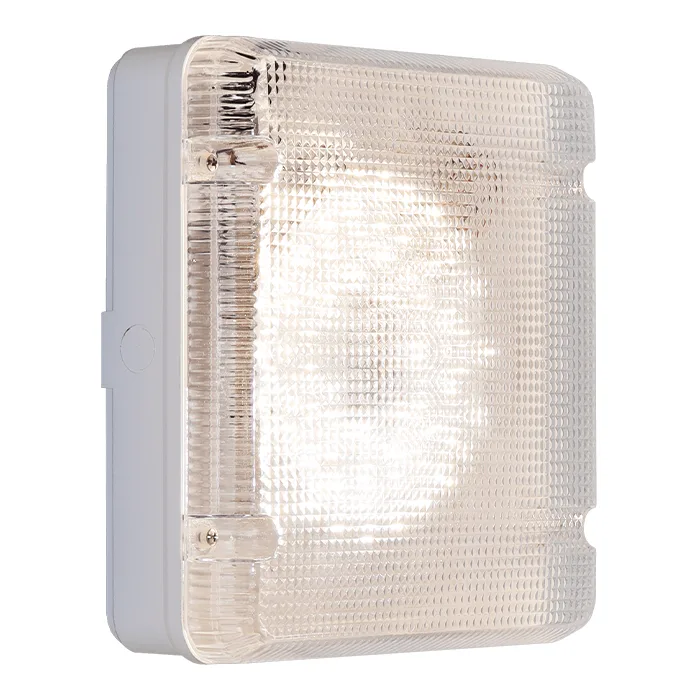

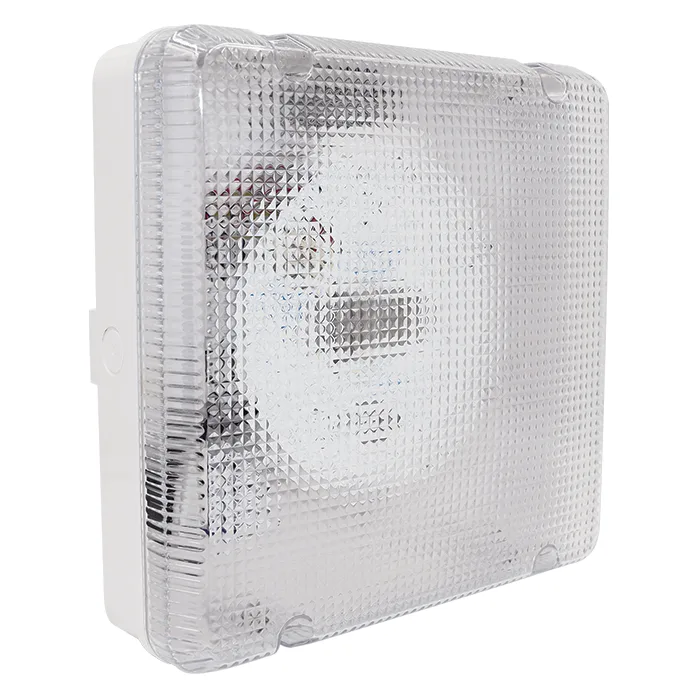

E02RAS1W: Square Prismatic White Bulkhead | COMING SOON

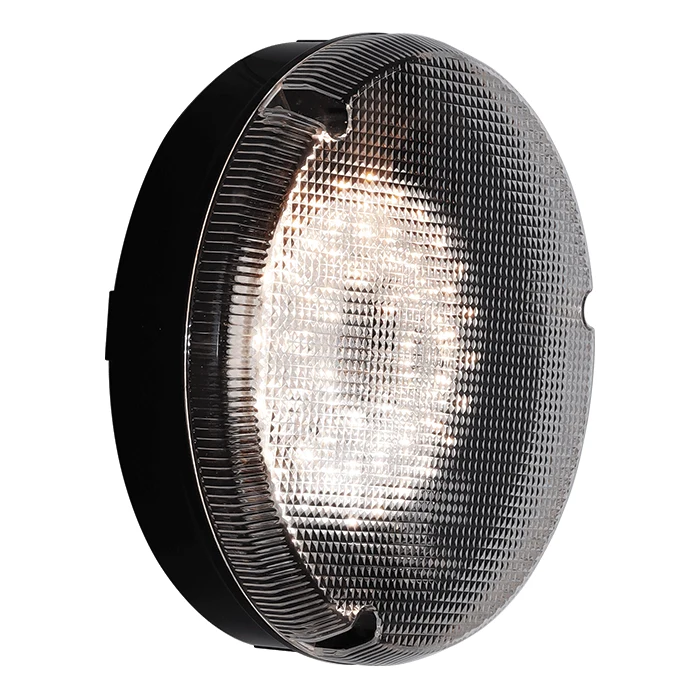

E02RAC1B: Circular Prismatic Black Bulkhead | COMING SOON

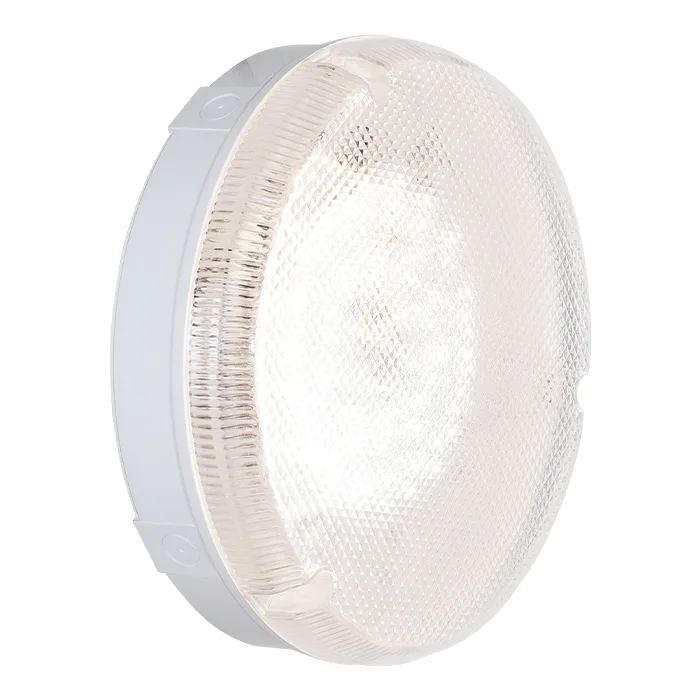

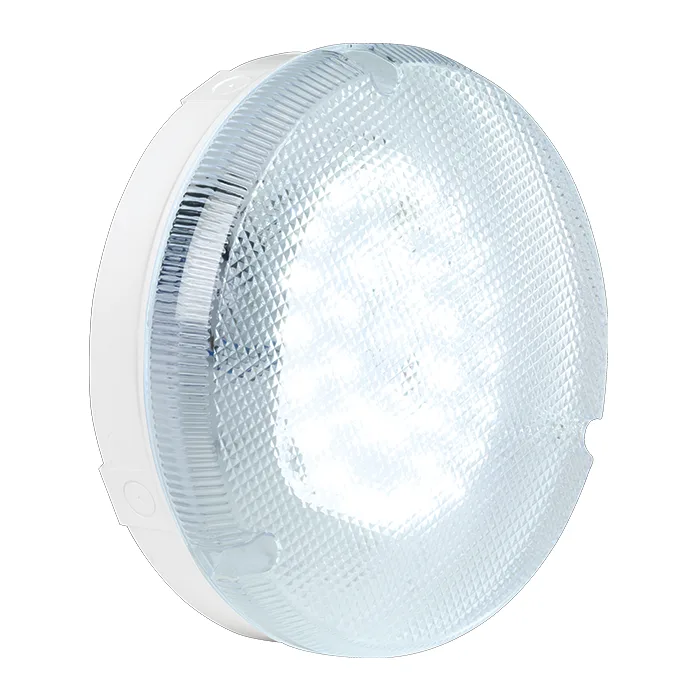

E02RAC1W: Circular Prismatic White Bulkhead | COMING SOON

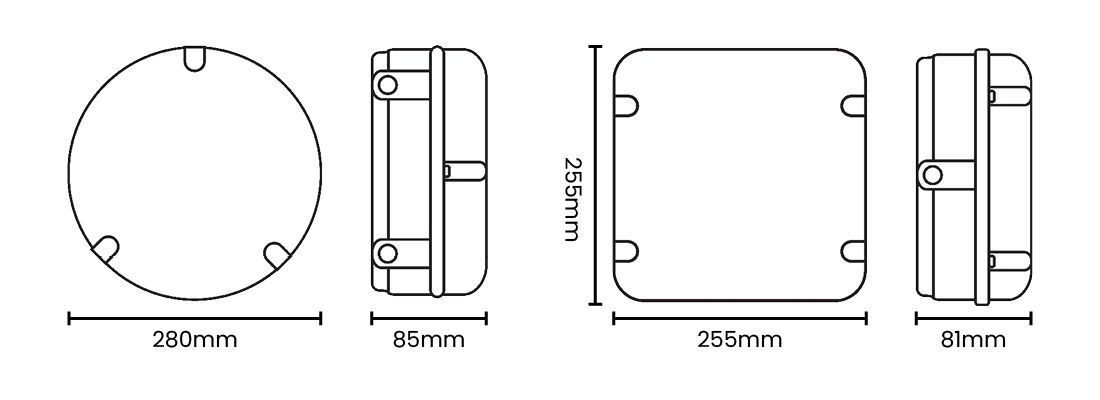

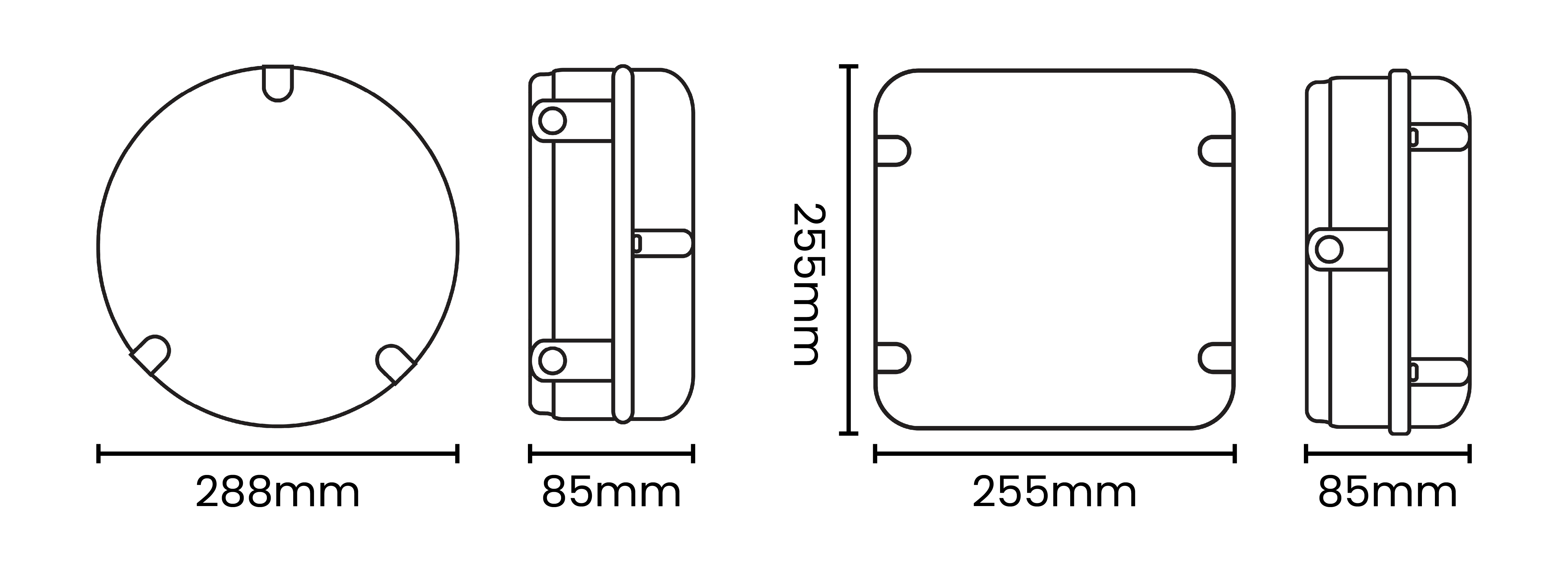

Reba dimension drawings

SPECIFICATION

- +
Light SourceLED
FinishBlack/White
Construction MaterialsPolycarbonate
Construction Materials 2ABS
Nominal Voltage240
Wattage8W/14W/16W
Colour Temperature2700K/3000K/4000K/5000K/6000K
Beam Angle120
Lumens1200-2145lm
LMW134-15lm/W
CRI80
IP/IK RatingIP65/IK10
Average Rated Life50,000
Product Warranty5 Years

DOWNLOADS

- +
Install Guide Download
IES photometric data file Download

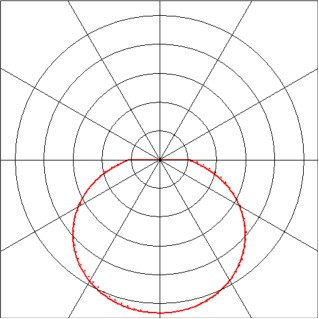

Polar Curve Download
