E03CP12AC

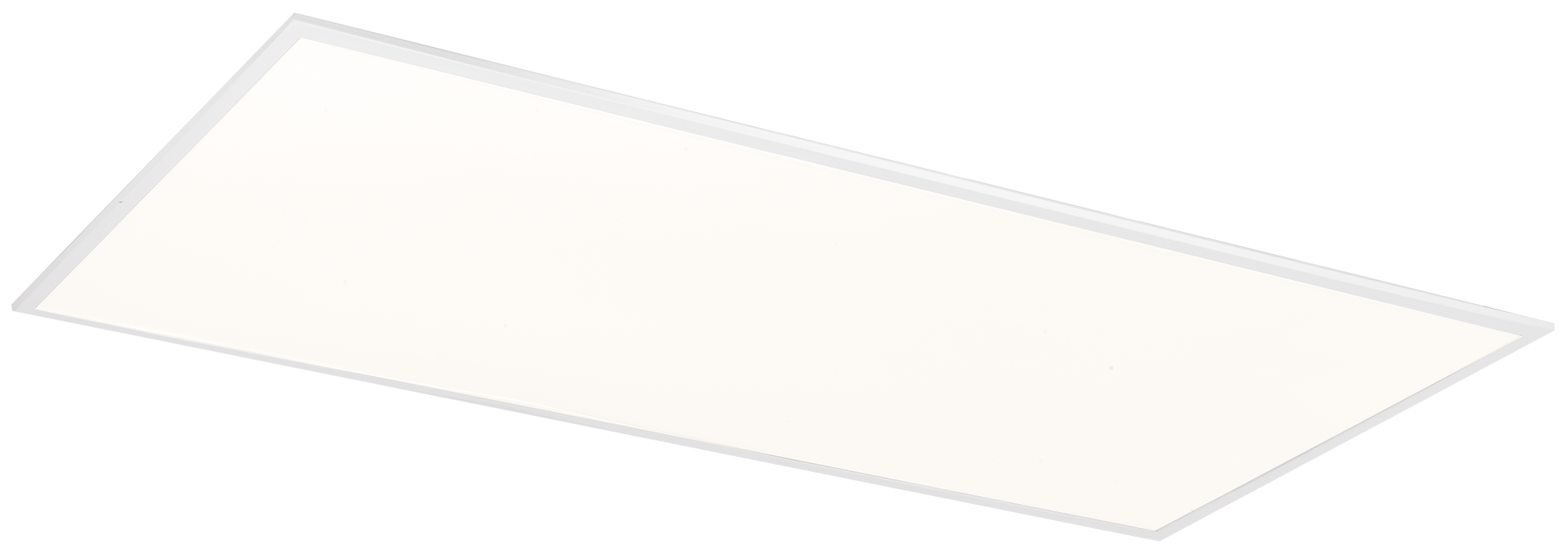

Capax 1200x600 TP(b) UGR19 Power CCT Selectable Back Lit Panel

The Capax TP(b) UGR19 rated backlit panel delivers high levels of efficiency at 130 lm/w, achieving low glare and effective light distribution. The dual power and three colour temperature selection within the panel offers significant versatility for a wide range of applications including commercial and educational environments

SPECIFICATION

- +
Light SourceLED
FinishWhite

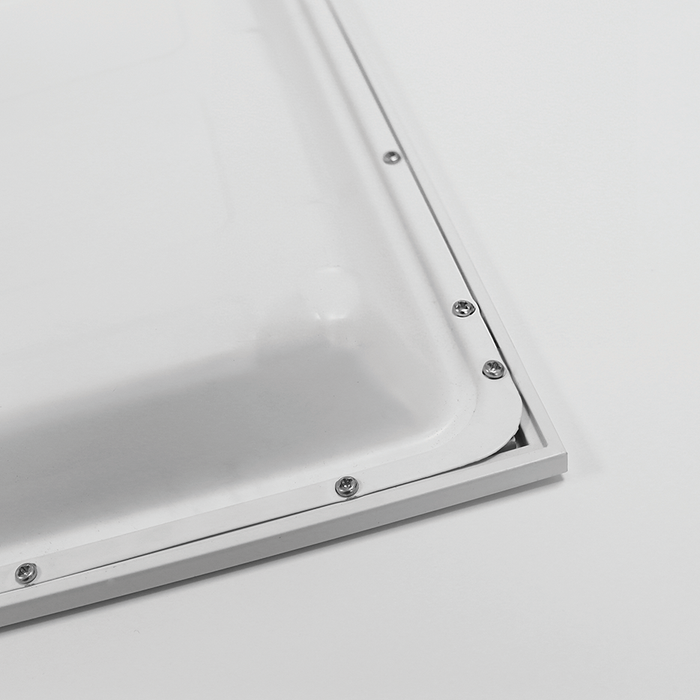

Construction MaterialsSteel
Construction Materials 2PS
Nominal Voltage240
Wattage40W / 58W

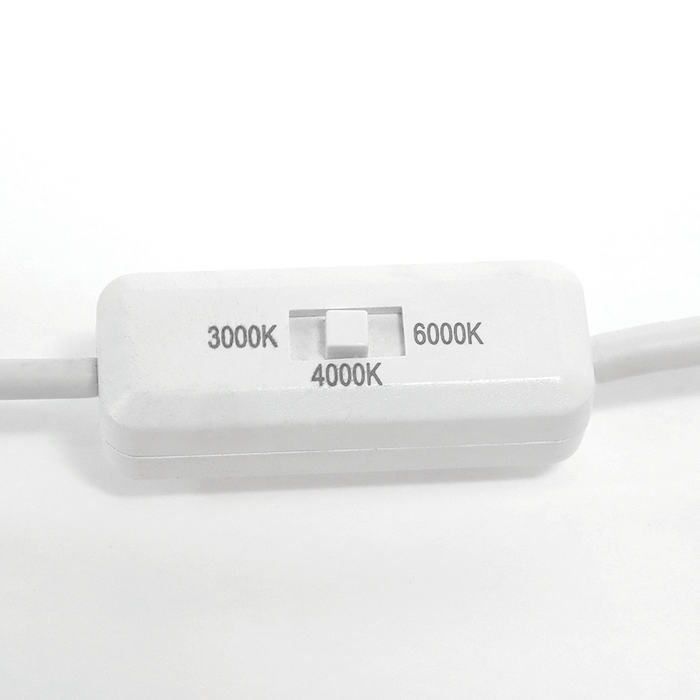

Colour Temperature3000K / 4000K / 6000K
Beam Angle90
Lumens5250 - 7590 lm
LMW131 - 131 lm/w
CRI80
IP/IK RatingIP44
Average Rated Life50,000
Product Warranty5 Years

DOWNLOADS

- +
Spec Sheet Download
Install Guide Download
IES photometric data file Download
Dimensions Drawing Download
Polar Curve Download
