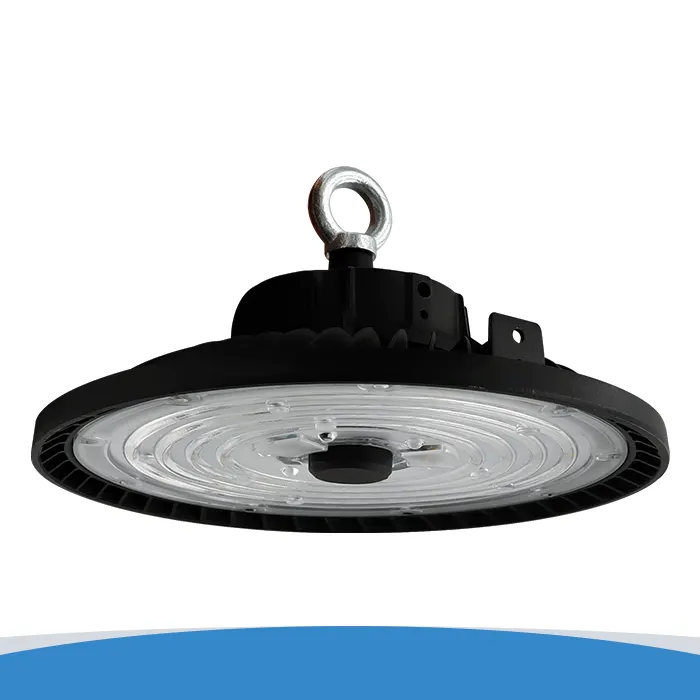

Ara High Bay.
E07ARA40 - 90/120/150W 0-10V Dimmable Highbay 120° 4000K
The Ara high bay offers a flexible solution delivering high levels of efficiency of up to 180lm/w. As standard the Ara comes complete with a front plug-in sensor port ready to use the plug in step dim Ara microwave sensor for additional energy savings or utilise the 0-10V connection for added control.
The three power options built in offers flexibility to suit many retrofit and new warehouse applications.
- High efficiency 180lm/W
- Delivering up to 27,000lm
- Three power selections 90W, 120W, 150W - Set to 150W as standard

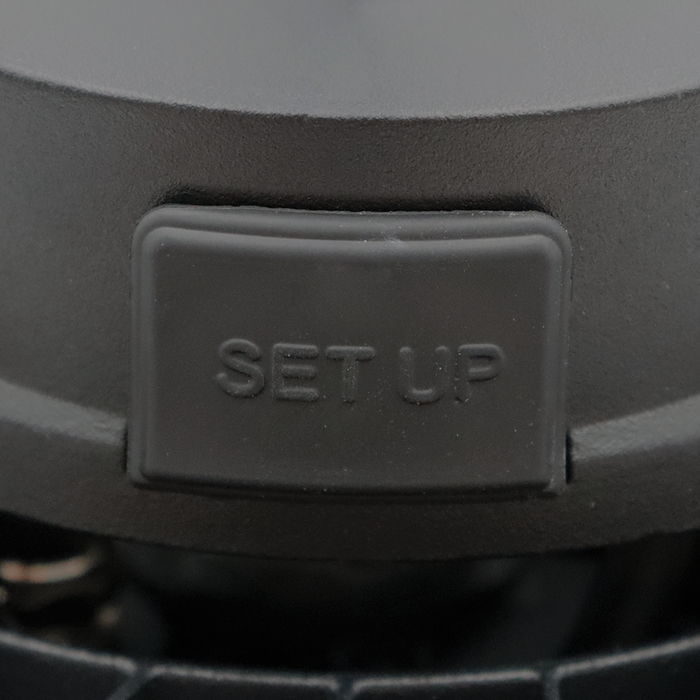

- Microwave sensor port for plug in Ara sensor (sensor available separately)

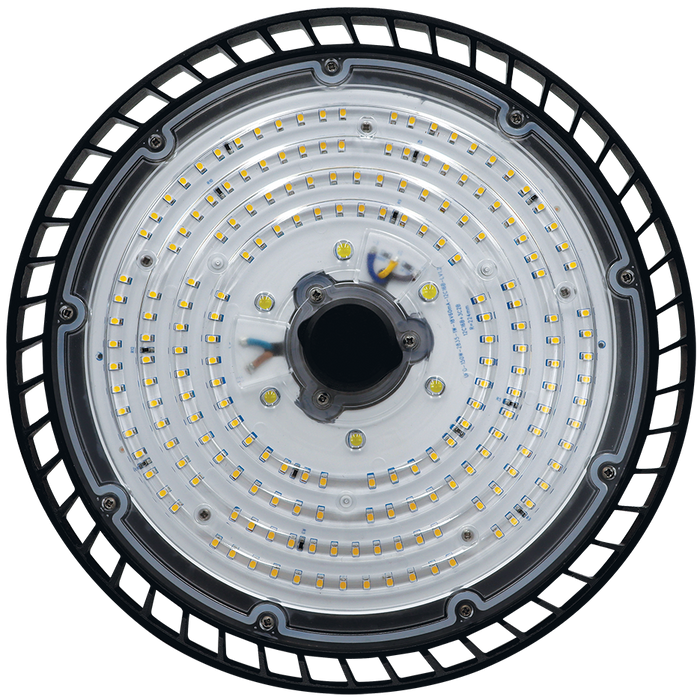

- Central integrated emergency LED array when in emergency mode
- Plug in 5W self test emergency pack available
- 0-10V dimmable
- IP65 and IK10 rated
- 120° beam angle, optional 90° lens available
- Pre-wired with 1.5m mains lead
SPECIFICATION
-
+
| Light Source | LED |
| Finish | Black |
| Construction Materials | Aluminium |
| Construction Materials 2 | Polycarbonate |
| Nominal Voltage | 240 |
| Wattage | 90W / 120W / 150W |
| Colour Temperature | 4000K |
| Beam Angle | 120 |
| Lumens | 16200 - 27000 lm |
| LMW | 180 lm/w |
| CRI | 80 |
| IP/IK Rating | IP65 / IK10 |
| Average Rated Life | 50,000 |
| Product Warranty | 5 Years |
