ELEDF50PIR

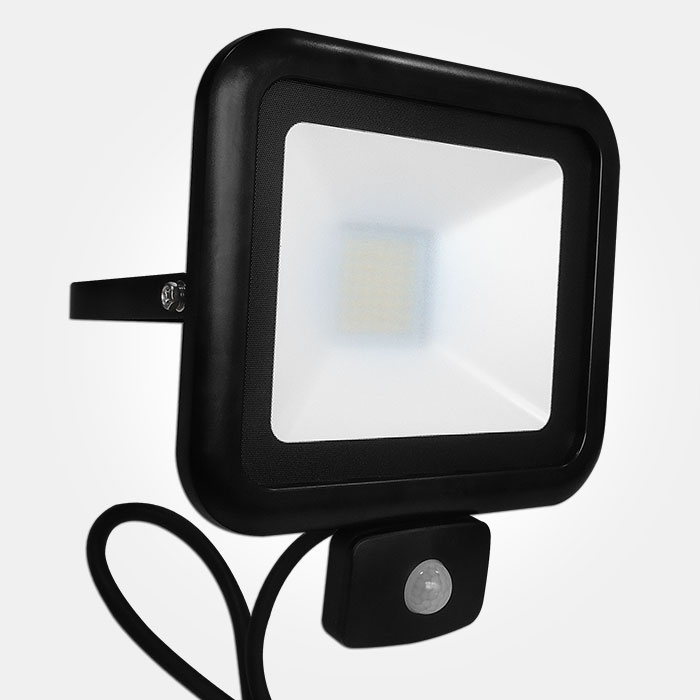

DISCONTINUED - 50W LED floodlight with 120° PIR

  • Tempered glass diffuser
  • Aluminium construction
  • Pre-wired with 80cm cable
  • Vertically and horizontally adjustable PIR
  • Time on adjustment: 10 sec ± 3 sec - 10 min ± 3 min
  • 120° detection angle
  • Adjustable detection range between 5-9m
  • Lux level adjustments: 5 Lux ~ 2000 Lux
  • M.O.M: 1 / O.P.Q: 12

Lamp Specifications:
Luminaire lumens (with diffuser) 4250 lm
Lumens from chip (no diffuser) 5000 lm
Useful lumens 4000 lm
Rated Wattage 50W
Rated luminous flux 4000 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 50W
Rated lamp lifetime 25,000 hrs
Lamp power factor 0.9
Lumen maintenance factor at end of nominal life 70%
Starting time 0.5s
Colour rendering 80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 2100cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 85 lm / W
Weight (kg) 1.573
TSI Code 404094036
Not suitable for accent lighting
What is the detection area? 120° - approximately 9m at an installation height of 2.5m What adjustment controls are there? Lux, time and sensitivity can be adjusted. The controls are on the rear of the sensor head.
