ELEGAN5EM3

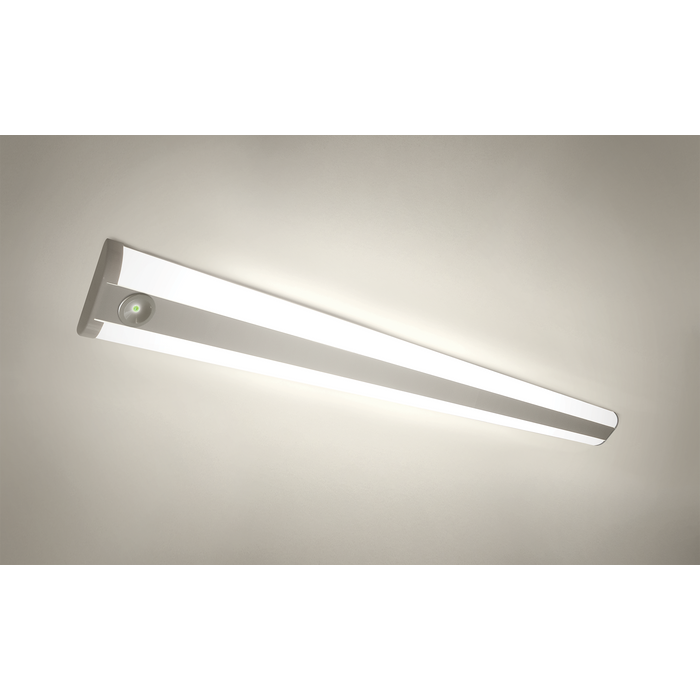

5ft Emergency LED twin slimline ceiling fitting
White | 50W | 4000K | 5000 lm | 40,000 hrs | IP20
ELEGAN5EM3
White | 50W | 4000K | 5000 lm | 40,000 hrs | IP20
Features
A slim, modern design LED ceiling fitting which offers a more stylish alternative to traditional battens. Where a more aesthetically pleasing fixture is desirable this versatile and elegant light source is suitable for commercial, retail and domestic applications
- Polycarbonate and aluminium construction
- Push terminal connections

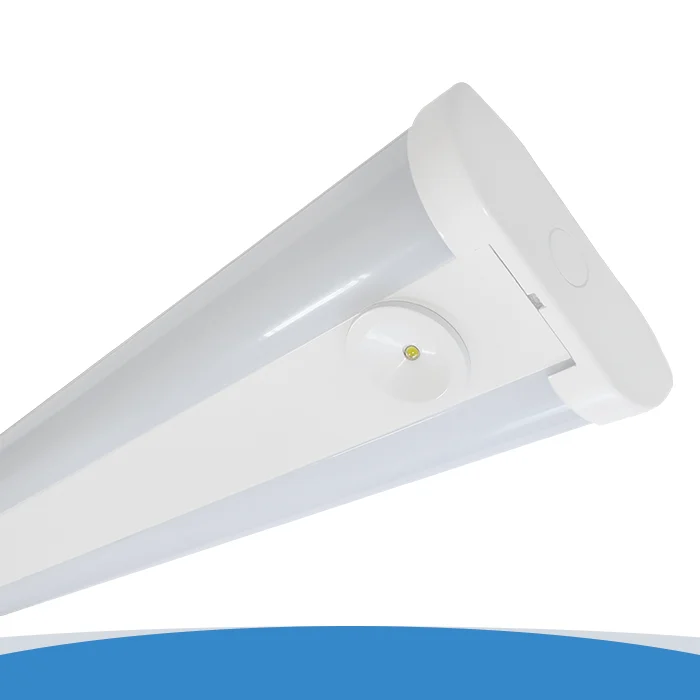

- LED glows green in standby mode and super bright white light in the event of a mains failure
- Minimum 3 hour functionality in emergency mode
- 118 lumens in emergency mode
- Battery – Ni-Cd 3.6V 2000mAh
- Battery 1 year warranty – Replacement battery code: EB2
- M.O.M: 1 / O.P.Q: 6
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 5000 lm |
| Lumens from chip (no diffuser) | 5300 lm |
| Useful lumens | 4500 lm |
| Rated Wattage | 50W |
| Rated luminous flux | 4500 lm |
| Nominal life time of the lamp | 40,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | ≥15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 50W |
| Rated lamp lifetime | 40,000 hrs |
| Lamp power factor | >0.9 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | <0.5s |
| Colour rendering | >80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 1353cd |
| Rated beam angle | 120° |
| Voltage / Frequency | 240V~50Hz |
| Lumens per watt | Up to 100 lm / W |
| Weight (kg) | 2.793 |
| TSI Code | 404094560 |
| Not suitable for accent lighting | |
