FLD20PIRBK

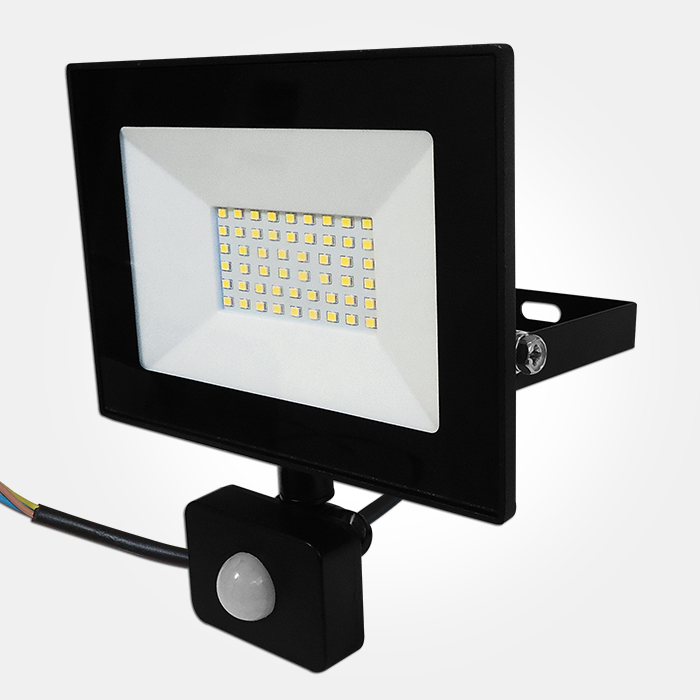

DISCONTINUED - 20W LED floodlight with 120° PIR


  • Aluminium & polycarbonate construction
  • Horizontally and vertically adjustable bracket
  • Detachable bracket allowing easy installation
  • Fixed IP rated connector for wiring direct to the floodlight
  • Terminal connector can be removed for ease of wiring
  • Horizontally and vertically adjustable PIR with 120° detection angle
  • Time on adjustment 10 Sec ± 3 sec - 10 mins ± 3 mins
  • Detection range 9m
  • Lux level adjustments: 5 Lux ~ 2000 Lux
  • M.O.M: 1 / O.P.Q: 10

Lamp Specifications:
Luminaire lumens (with diffuser) 1600 lm
Lumens from chip (no diffuser) 1800 lm
Useful lumens 1480 lm
Rated Wattage 20W
Rated luminous flux 1480 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 12500
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 20W
Rated lamp lifetime 25,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life 70%
Starting time <0.5s
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 509cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
