IFIRELCSSN

DISCONTINUED - Dimmable colour selectable integrated fire rated LED downlight

OBSOLETED PRODUCT

Brushed Nickel | 8W | 40,000 hrs | IP65
• 3000K/670 lm (Warm White) • 4000K/780 lm (Cool White) • 6000K/700 lm (Daylight)



               icon-ip65  icon-led  icon-5year

IFIRELCSSN

OBSOLETED PRODUCT

Brushed Nickel | 8W | 40,000 hrs | IP65
• 3000K/670 lm (Warm White) • 4000K/780 lm (Cool White) • 6000K/700 lm (Daylight)



               icon-ip65  icon-led  icon-5year

SKU: 5013845051613 Category:
Categories: Obsoleted
SKU: 5013845051613
More Information
Features

PERFECT FOR ALL DOMESTIC, OFFICE, COMMERCIAL & INDUSTRIAL APPLICATIONS

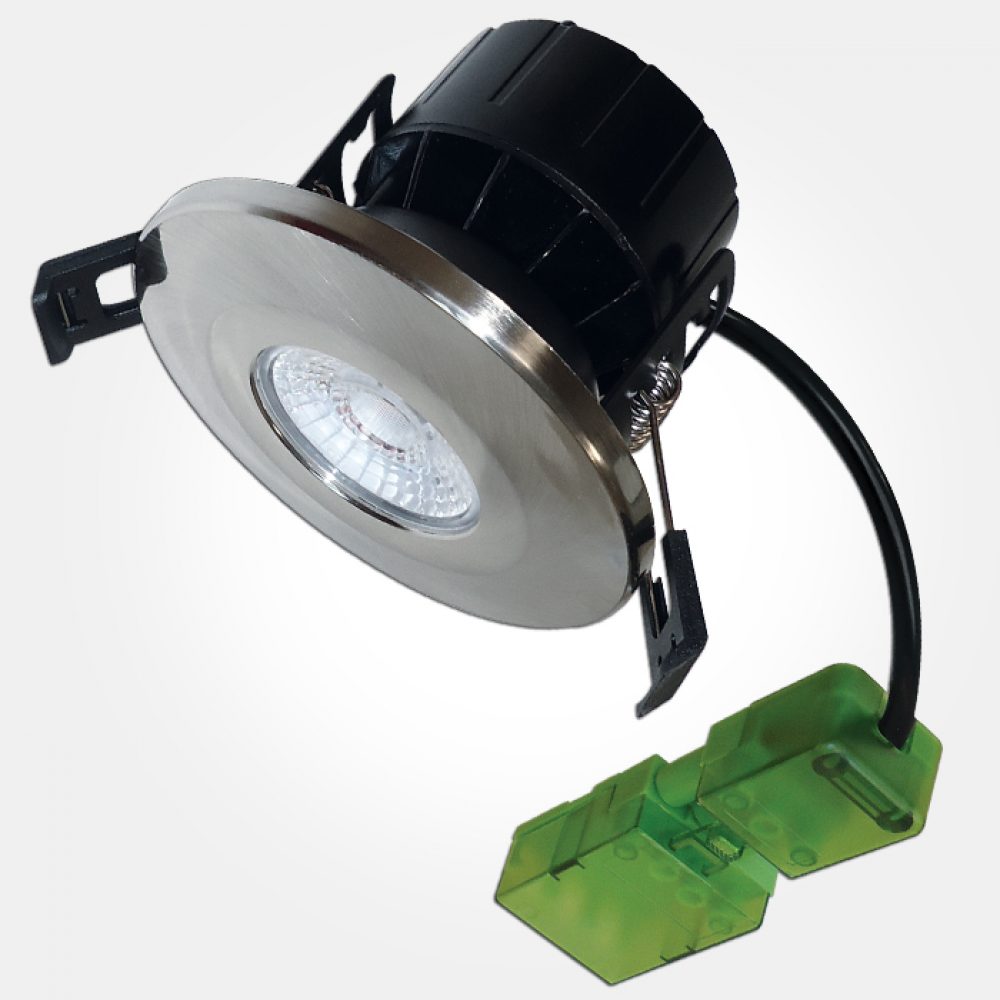

High performance, fire rated downlight with prewired plug in connector for easy installation and circuit integrity checks without fixture being connected.

  • Fire rated tested for individual 30, 60 and 90 min ceiling types
  • Dimmable – for optimum dimming performance we recommend using a compatible LED dimmer

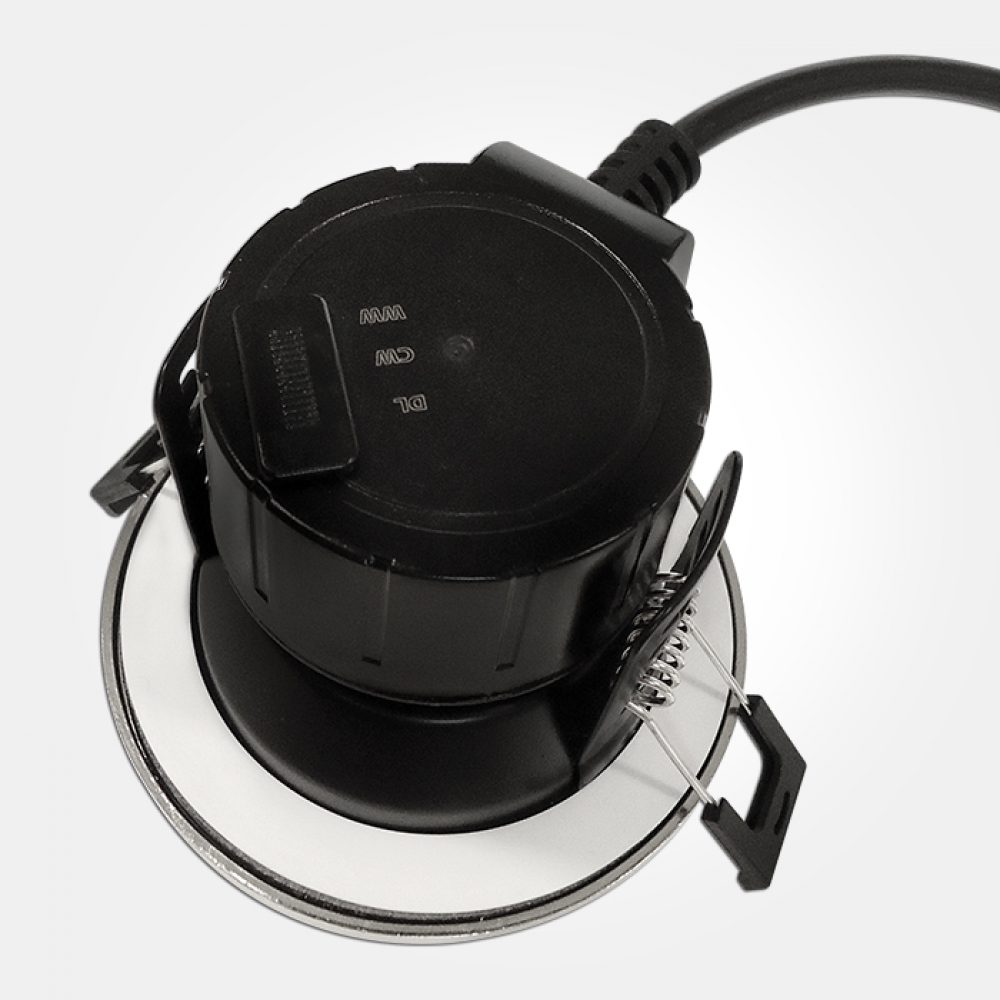

  • Selectable colour temperature with warm, cool and daylight options

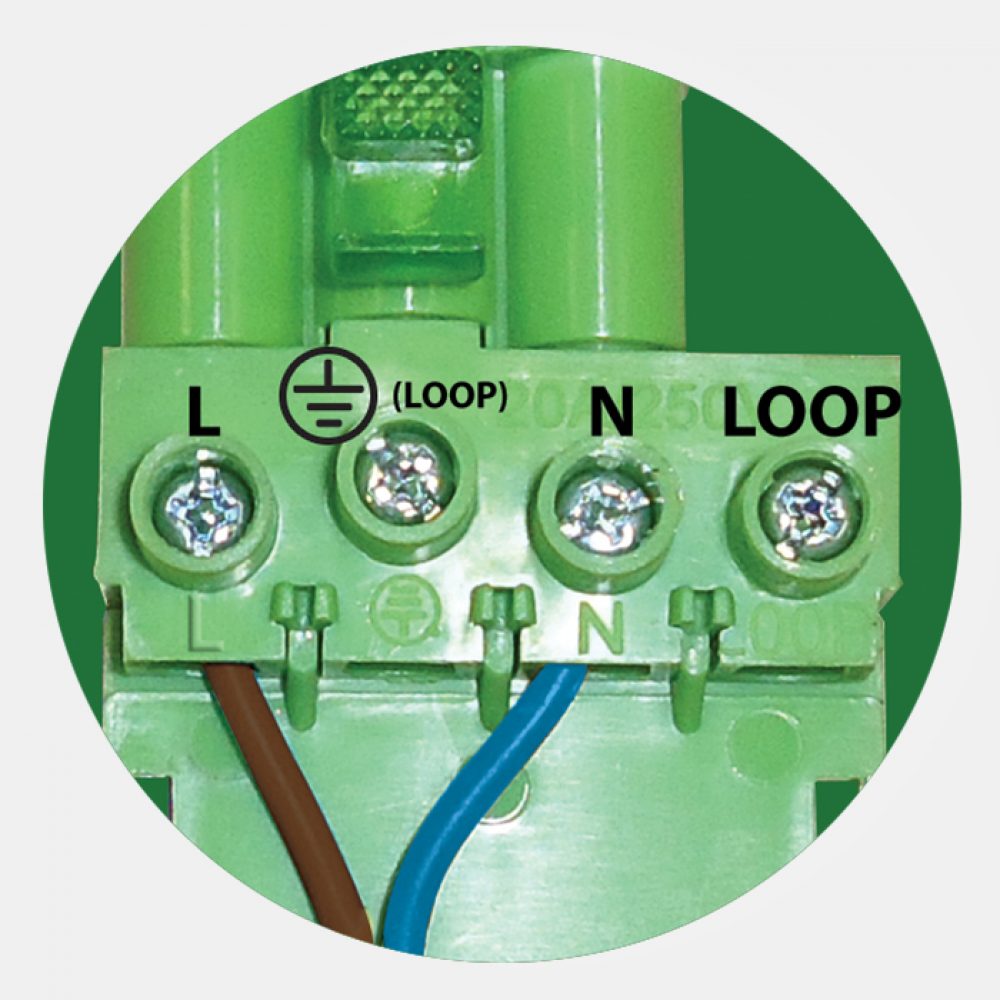

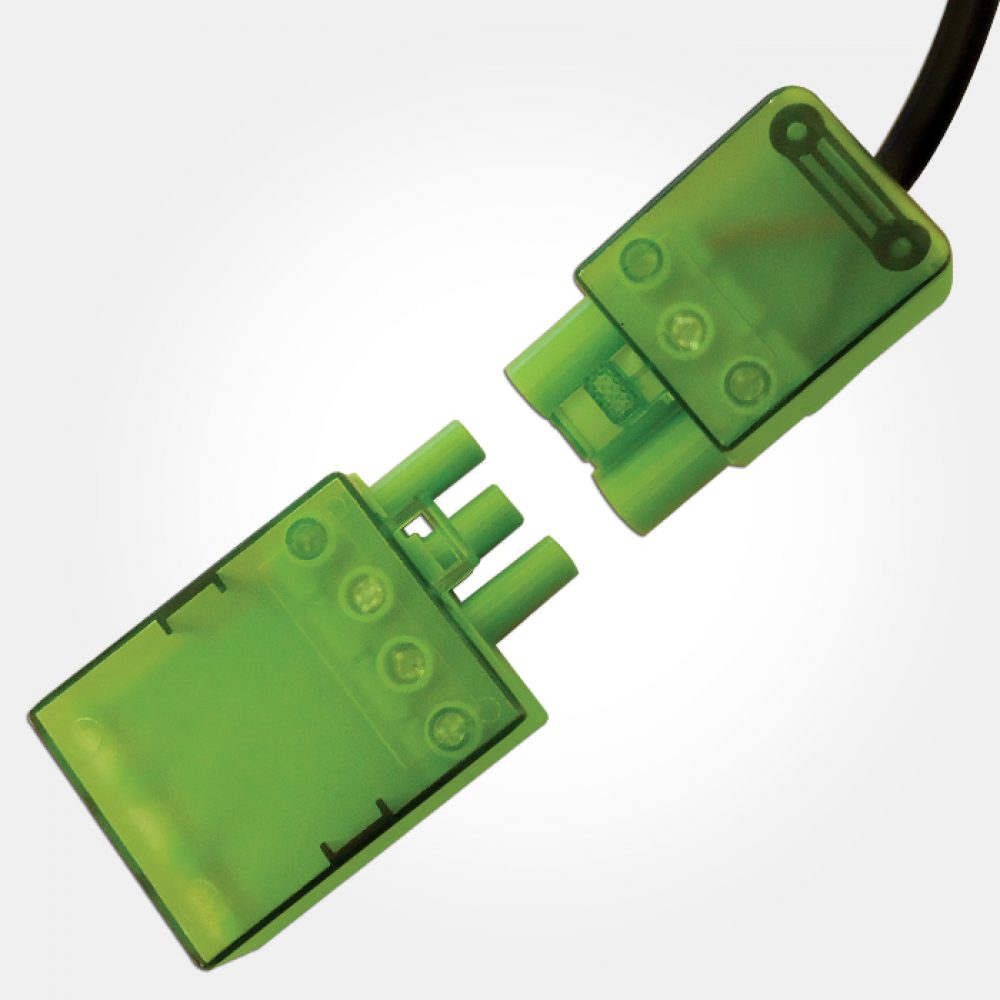

  • Pre-wired with 20cm cable onto plug-in connector screw terminal block
  • 4 terminal connector allows for loop in/out lighting circuits
  • Silicon bezel seals against air permeability
  • 60° beam angle
  • Hole cut out dimension – 76mm
  • M.O.M: 1 / O.P.Q: 40

PLEASE NOTE:
Due to the huge variety of dimmers in the market, dimming performance with all types cannot be guaranteed, compatibility should be tested before installation.

Specification
Lamp Specifications:
Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White 670 lm (WW) / 780 lm (CW) / 700 lm (DW)
Lumens from chip (array): Warm White, Cool White, Daylight White 700 lm (WW) / 800 lm (CW) / 720 lm (DW)
Useful lumens (array): Warm White, Cool White, Daylight White 650 lm (WW) / 750 lm (CW) / 680 lm (DW)
Rated Wattage 8W
Rated luminous flux 650 lm (WW) / 750 lm (CW) / 680 lm (DW)
Nominal life time of the lamp 40,000 hrs
Colour temperature 3000/4000/6000K
Number of switching cycles before premature lamp failure ≥15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? Yes
Nominal beam angle 60°
Rated power wattage 8W
Rated lamp lifetime 40,000 hrs
Lamp power factor >0.8
Lumen maintenance factor at end of nominal life ≥0.70
Starting time 0.1s
Colour rendering >0.8 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 450cd
Rated beam angle 60°
Voltage / Frequency 240V~50/60Hz
Lumens per watt Up to 83 lm / W
Weight (kg) 0.321
TSI Code 406600059
Not suitable for accent lighting
