KEM3BULKLI

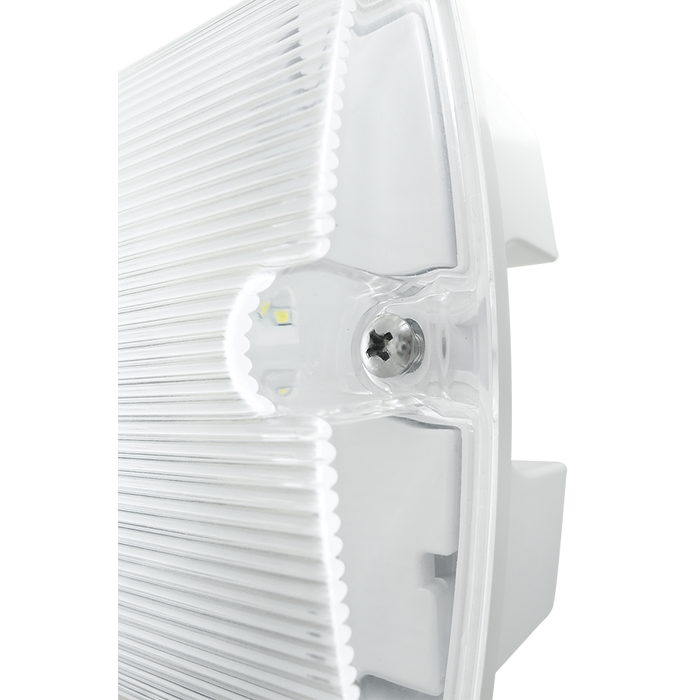

4W Li-Ion LED maintained emergency bulkhead with ISO 7010 legend set

Rectangular functional maintained emergency bulkhead, able to be adjusted to non-maintained function. An energy efficient 4W solution offering 270 lumens in mains mode and 130 lumens in emergency mode. ISO7010 legend set provided with an option of signs directive available and a recessed frame to suit multiple applications

SPECIFICATION

- +
Light SourceLED
FinishWhite
Construction MaterialsPolycarbonate
Nominal Voltage240
Wattage4.5W
Colour Temperature6400K
Beam Angle120
Lumens250 lm
LMW56 lm/w
CRI80
IP/IK RatingIP65
Average Rated Life40,000

DOWNLOADS

- +
Spec Sheet Download
Install Guide Download
IES photometric data file Download
Dimensions Drawing Download
Polar Curve Download
