KWPTWI5

Twin 5ft LED weatherproof batten

5ft | Twin | Grey | 58W | 4000K | 6020 lm | 40,000 hrs | IP65



       icon-ip65    icon-led

KWPTWI5

5ft | Twin | Grey | 58W | 4000K | 6020 lm | 40,000 hrs | IP65



       icon-ip65    icon-led

SKU: 5013845058438 Categories: , ,
Categories: Battens - Weatherproof, Vanilla
SKU: 5013845058438
More Information
Features

This range is quick and easy to install due to “loop in & out” push fit connectors and features an IK10 “anti-drop” diffuser.

  • Multiple cable entries, allowing for “loop in & out” wiring via push fit terminal block

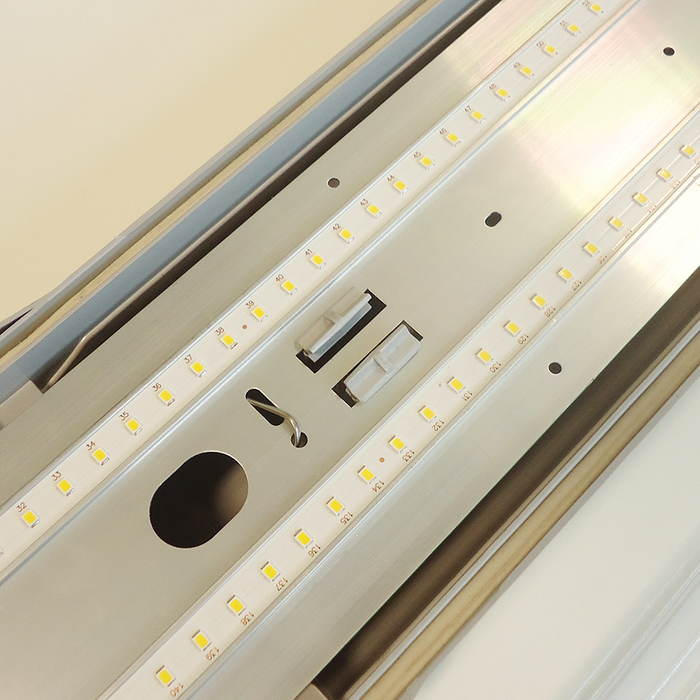

  • “Anti-drop” polycarbonate diffuser & gear tray for ease of installation
  • Three mounting options – BESA box, directly onto ceiling surfaces or stainless steel suspension clips (included)
  • IES files available for lighting designs
  • Stainless steel diffuser clips supplied as standard, suitable for food industry applications
  • Operating temperature: -20 to 45°C
  • Supplied with a 20mm IP65 gland & fixings kit
  • LED performance allows for “like for like” replacement of existing fluorescent luminaires
  • Producing 104 lm / W
  • IK10 rated fitting maximises durability and strength
  • M.O.M: 1 / O.P.Q: 6
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 6020 lm
Lumens from chip (no diffuser) 6840 lm
Useful lumens 5815 lm
Rated Wattage 58W
Rated luminous flux 5815 lm
Nominal life time of the lamp 40,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure ≥15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 58W
Rated lamp lifetime 40,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life ≥0.70
Starting time <0.1s
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 1510cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
lm / w 104 lm / W
Not suitable for accent lighting
