LEDBOLLARD
DISCONTINUED - 800mm LED bollard
OBSOLETED PRODUCT
Black | 7W | 4000K | 430 lm | 30,000 hrs | IP54 | A Rated
LEDBOLLARD
OBSOLETED PRODUCT
Black | 7W | 4000K | 430 lm | 30,000 hrs | IP54 | A Rated
Features
Aesthetically pleasing and modern design
Superior looking aluminium constructed fitting for lighting commercial and domestic driveways and walkways
PERFECT FOR LIGHTING DRIVEWAYS & WALKWAYS

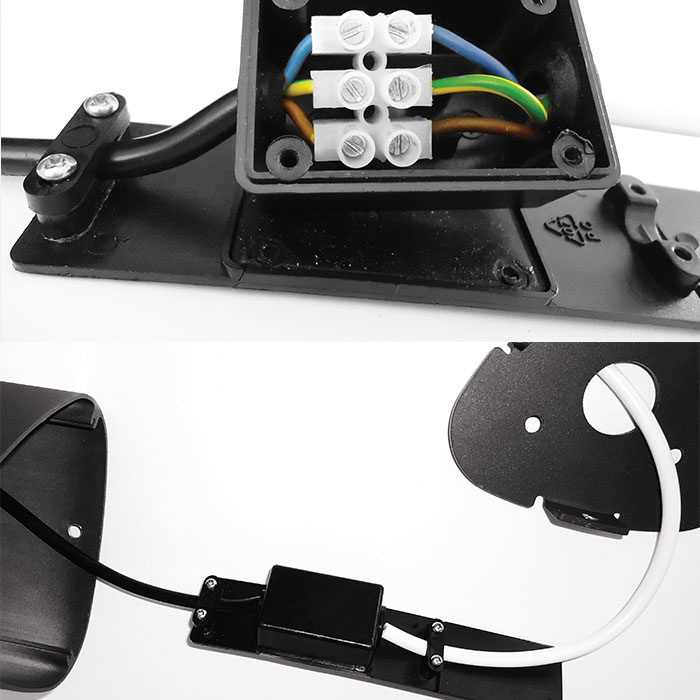

- Suitable for surface mounting and supplied with root mounting kit for more robust installation
- Aluminium construction
- Diameter of mounting bracket cable hole = 30mm
- M.O.M: 1 / O.P.Q: 4
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 430 lm |
| Lumens from chip (no diffuser) | 670 lm |
| Useful lumens | 400 lm |
| Rated Wattage | 7W |
| Rated luminous flux | 400 lm |
| Nominal life time of the lamp | 30,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 7W |
| Rated lamp lifetime | 30,000 hrs |
| Lamp power factor | 0.86 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | <0.5s |
| Colour rendering | >80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 94cd |
| Rated beam angle | 120° |
| Voltage / Frequency | 240V~50Hz |
| Lumens per watt | Up to 61 lm / W |
| Weight (kg) | 2.682 |
| TSI Code | 404124278 |
| Not suitable for accent lighting | |
