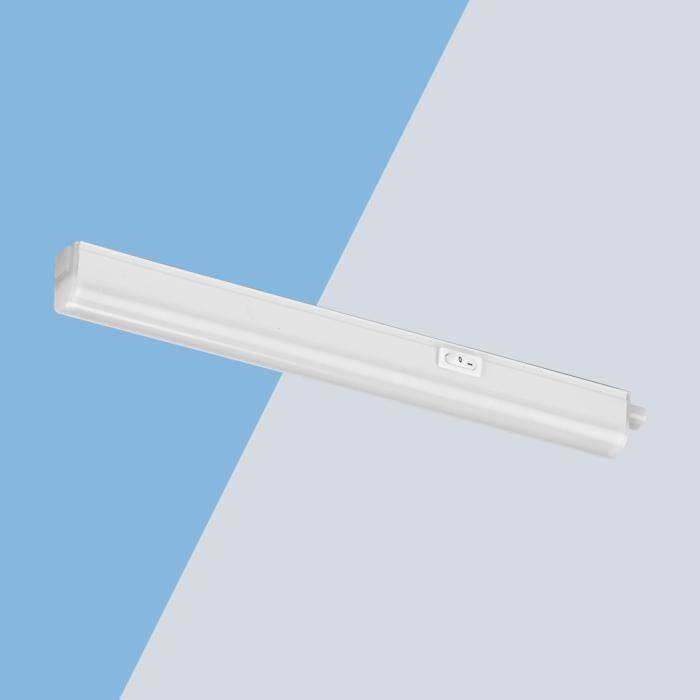

LINKCS9
9W colour selectable LED linkable linear strip light
White | 9W | CCT selectable – 3000/4200/6500K | 25,000 hrs | IP20
LINKCS9
White | 9W | CCT selectable – 3000/4200/6500K | 25,000 hrs | IP20
Features
High quality linkable LED cabinet lights inclusive of accessories for easy installation. Use the sliding switch to choose between warm, cool or daylight white light to suit the requirement or preference. Low energy consumption and long lifetime makes the LINKCS range the optimal choice for stylish and effective task lighting
- Superb light output and distribution, with opal diffuser for a soft effect – perfect for task lighting
- Easily select between warm white, cool white or day light via a simple switch to suit the application or preference
- Link a maximum of 12 fittings end-to-end for a continuous line, or space apart with the 30cm link lead (included)
- Safe and simple connectivity thanks to the dual polarity of the 2 pins at each end
- Simple rocker switch for local on/off control

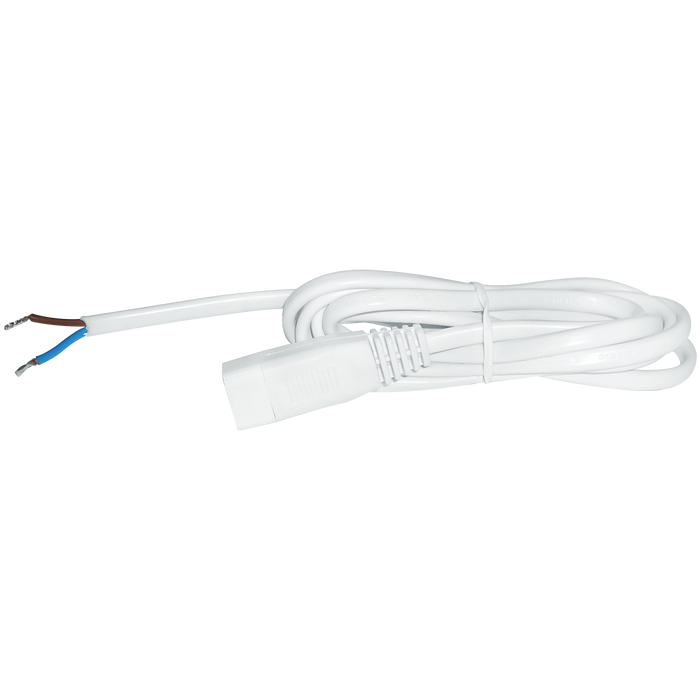

- Fitting comes with a 1.8m mains lead, 30cm link lead, and integral plug & sockets for simple and easy connection (no driver required)
- Slimline design for unobtrusive installation under cabinets. Ideal for kitchens
- Additional 50cm link lead accessory: product code: LINKL05
- Conforms to current British and European Manufacturing Standards, including BS EN 60598
- M.O.M: 1 / O.P.Q: 10
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White | 896 lm (WW) / 901 lm (CW) / 905 lm (DW) |
| Lumens from chip (array): Warm White, Cool White, Daylight White | 1009 lm (WW) / 1011 lm (CW) / 1013 lm (DW) |
| Useful lumens (array): Warm White, Cool White, Daylight White | 833 lm (WW) / 837 lm (CW) / 841 lm (DW) |
| Rated Wattage | 9W |
| Rated luminous flux | 833 lm (WW) / 837 lm (CW) / 841 lm (DW) |
| Nominal life time of the lamp | 25,000 hrs |
| Colour temperature | 3000/4200/6500K |
| Number of switching cycles before premature lamp failure | 12,500 |
| Warm-up time up to 60 % of the full light output | <2s |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 130° |
| Rated power wattage | 9W |
| Rated lamp lifetime | 25,000 hrs |
| Displacement factor | >0.5 |
| Lumen maintenance factor at end of nominal life | >0.958 |
| Starting time | <0.5s |
| Colour rendering | >80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Voltage / Frequency | 220-240V~50Hz |
| Lumens per watt | 99.55/100.11/100.55 lm / W |
| Not suitable for accent lighting | |
