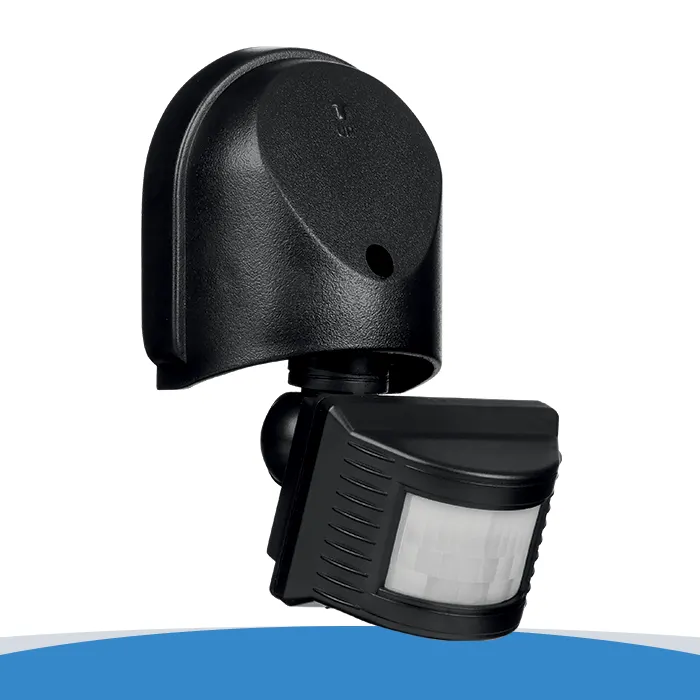

PIR110BK

External IP44 110° PIR detector

Black | IP44



icon-ip44  icon-110-pir

PIR110BK

Black | IP44



icon-ip44  icon-110-pir

SKU: 5013845008877 Category:
Categories: Lighting Controls & Accessories
SKU: 5013845008877
More Information
Features
  • ABS construction
  • Time on adjustable: 5 sec – 5 min
  • Vertically & horizontally adjustable detector
  • 1000W incandescent / 300W fluorescent maximum load capacity
  • Maximum 200W LED load capacity (no more than eight lights)
  • 110º detection zone
  • Adjustable lux level
  • 12 metre range
  • M.O.M: 1 / O.P.Q: 30
Downloads

You will need Adobe Acrobat Reader to access and print PDFs.

FAQ

Is there a troubleshooting guide?

For troubleshooting guide please refer to the installation instructions (in the download tab)

Can multiple PIR fittings be linked to control the same load?

We do not recommend using more than one PIR to control the same load

Does this PIR have a minimum load?

No

What is the maximum load?

1000W incandescent
300W fluorescent
200W LED (maximum eight lights)

What adjustment controls are there?

Lux and time can be adjusted. The controls are on the base of the sensor head

What is the detection area?

The detection area is approximately 12m when mounted at 2.5m-3m height
