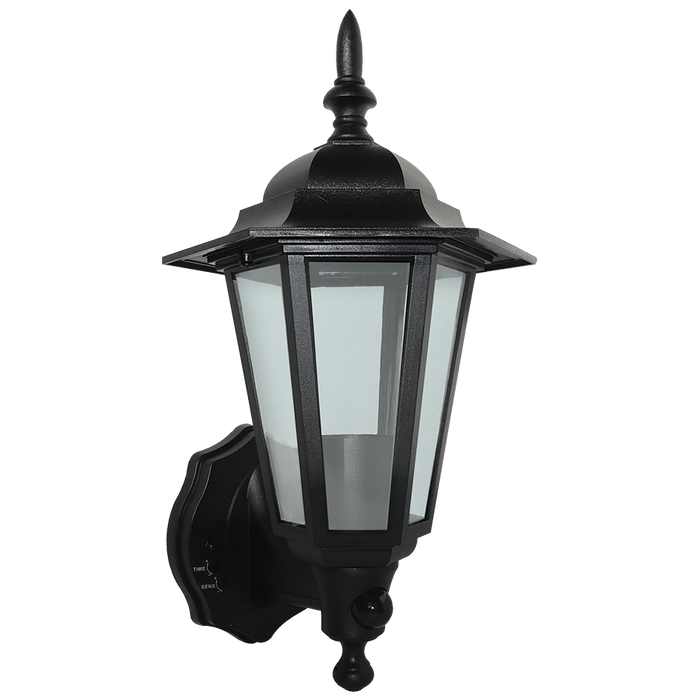

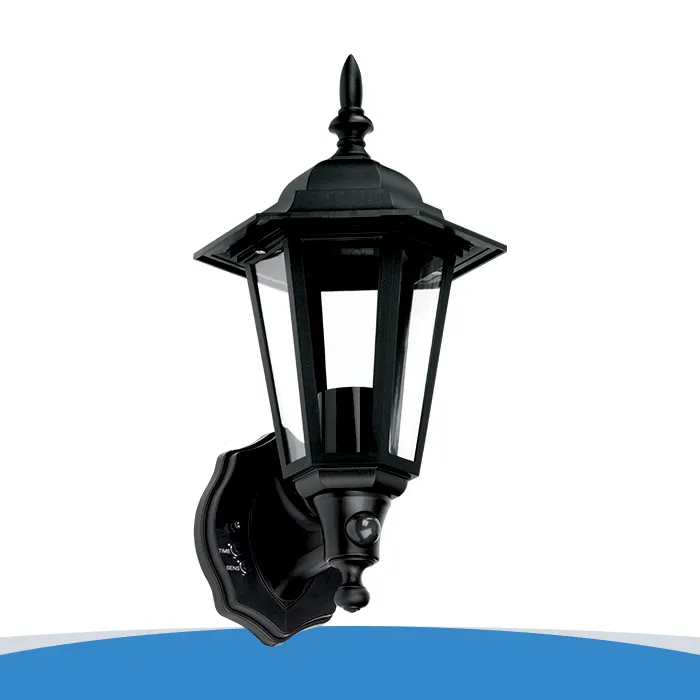

PIRL60BK

60W Max polycarbonate full lantern with 110° PIR

Black | 60W Max | IP44 | Lamp Not Included

Compatible With LED Lamps



icon-60w  icon-ip44  icon-110-pir  icon-LED-compatible

PIRL60BK

Black | 60W Max | IP44 | Lamp Not Included

Compatible With LED Lamps



icon-60w  icon-ip44  icon-110-pir  icon-LED-compatible

Categories: Ceiling/Wall/Bulkheads, Lanterns
SKU: 5013845023993
More Information
Features
  • Requires 1 x suitable ES lamp (not included). Fitting is rated at 60W max
  • This luminaire is compatible with bulbs of the energy classes: A++ to E
  • Gasketed mounting / wiring box
  • Polycarbonate construction: corrosion resistant
  • Hexagonal one piece lens: easy assembly
  • 10 metre range with sensitivity adjustment control
  • Time on adjustable (10±5) secs – (4±1) min
  • 110° detection zone
  • Factory preset PIR – no override facility
  • M.O.M: 1 / O.P.Q: 6
Specification
Weight (kg) 0.81
TSI Code 390011424
Downloads

You will need Adobe Acrobat Reader to access and print PDFs.

FAQ

Is there a troubleshooting guide?

For troubleshooting guide please refer to the installation instructions (in the download tab)

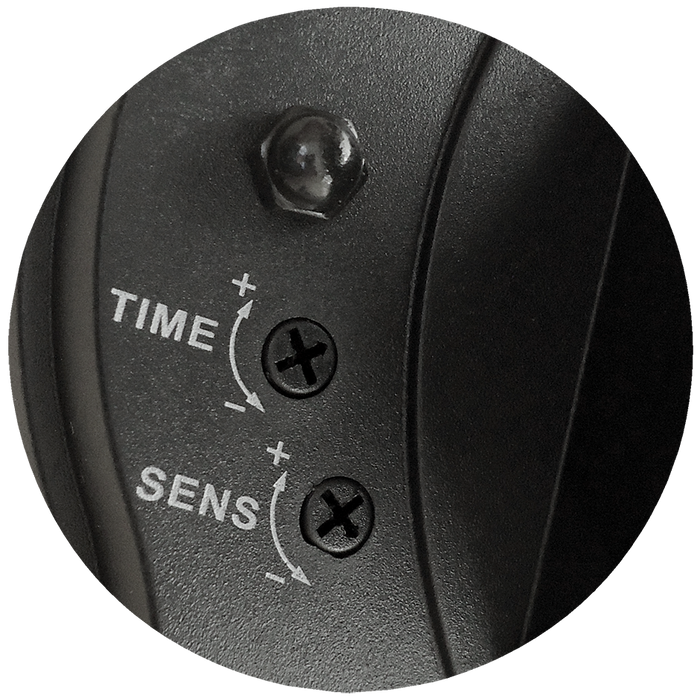

What adjustment controls are there?

Time and sensitivity can be adjusted

Can the lux level be adjusted?

No

What is the detection area?

110° –  to a maximum 10m when installed at 2m height
