SESIGNLEM3

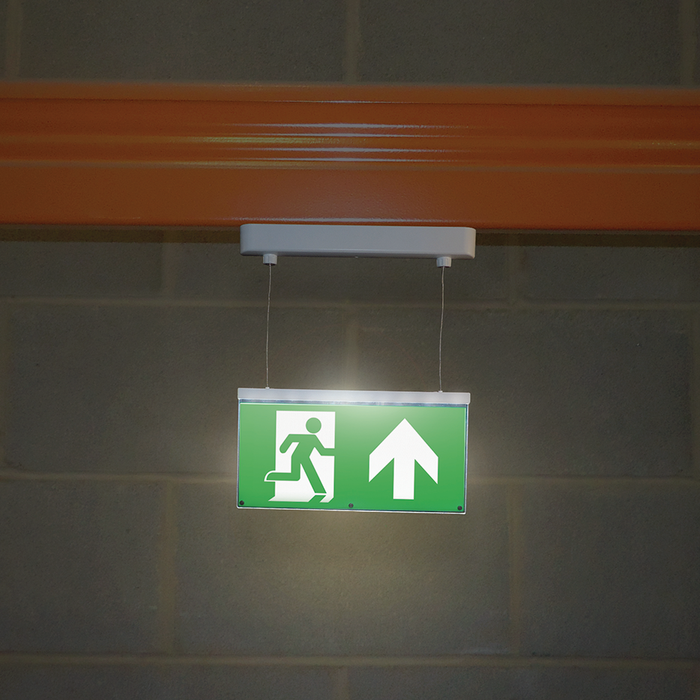

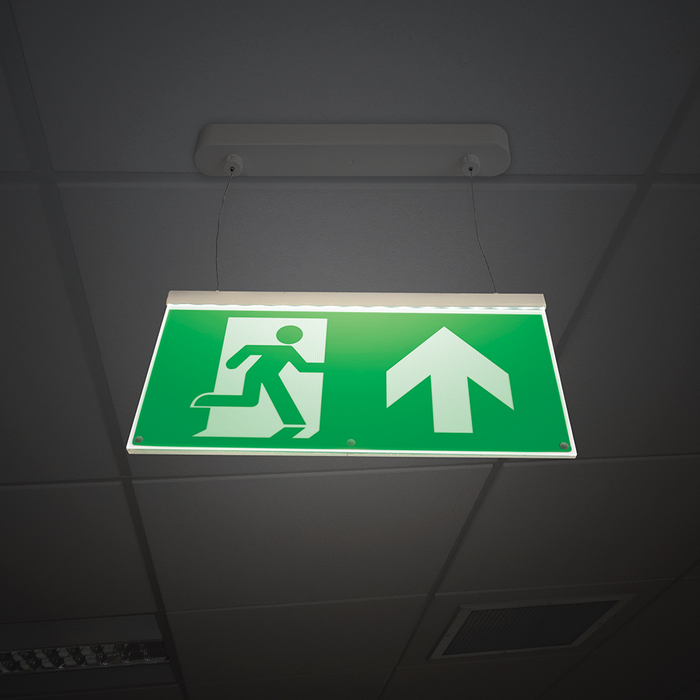

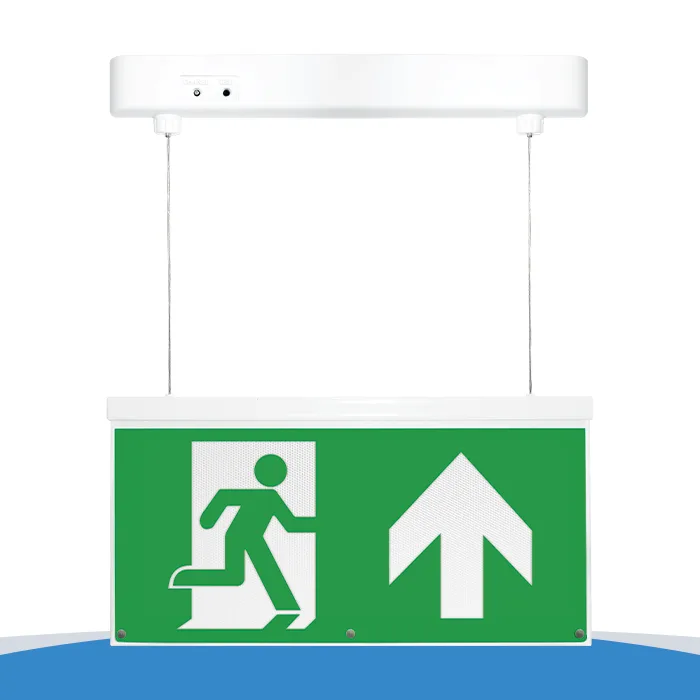

Self-Test LED emergency hanging exit sign light with ISO 7010 up arrow legend
White | 2.3W | 6000K | 171 lm | 25,000 hrs
SESIGNLEM3
White | 2.3W | 6000K | 171 lm | 25,000 hrs
Features
PERFECT FOR OFFICE & COMMERCIAL APPLICATIONS
Fitting with proven long term durability and performance.
Battery replacement service available. Click HERE for details.
- Automatic testing in accordance with EN 62034
- Polycarbonate construction
- Remote connection box complete with adjustable length suspension cable (max 80cm)
- Supplied with a double-sided ISO 7010 up arrow exit legend – other legends available separately
- 3 hour maintained mode as standard which can also be configured for non-maintained or remote switched operation
- Viewing distance 29m
- Test button and LED charge light
- Battery – Ni–Cd 3.6V 800mAh
- Battery 1 year warranty – Replacement battery code: EB8
- M.O.M: 1 / O.P.Q: 6
Specification
| Lamp Specifications: | |
|---|---|
| Nominal lumens | 171 lm |
| Rated Wattage | 2.3W |
| Nominal life time of the lamp | 25,000 hrs |
| Colour temperature | 6000K |
| Viewing distance | 29m |
| Voltage | 220-240V |
| Lumens per watt | |
| Weight (kg) | |
| TSI Code | 406600237 |
Downloads
FAQ
Can this be converted to non-maintained?
Yes, by removing the link wire between L and Ls
Can this fitting be switched on and off in mains mode?
Yes, by removing the link wire between L and Ls and connecting a switched live to Ls
