TAB30PIRBK

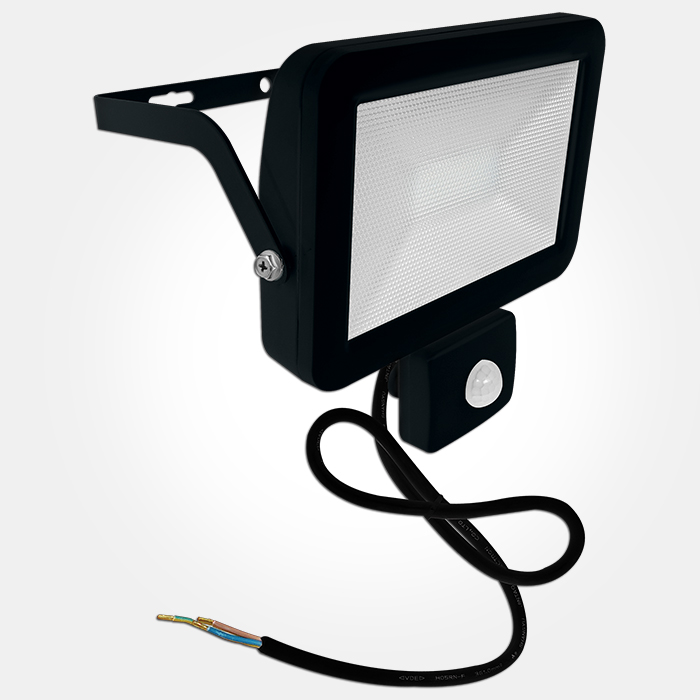

DISCONTINUED - 30W tablet LED floodlight with 120° PIR
OBSOLETED PRODUCT
Black | 30W | 4000K | 2400 lm | 30,000 hrs | IP44 | A+ Rated
TAB30PIRBK
OBSOLETED PRODUCT
Black | 30W | 4000K | 2400 lm | 30,000 hrs | IP44 | A+ Rated
Features
Super slim, aesthetically pleasing LED floodlight with black & white, PIR and non PIR versions available
- Aluminium & polycarbonate construction
- Mains voltage LED chips – no driver required
- Quick fix bracket allowing fixing without removing bracket from fixture
- Pre-wired with 80cm flex
- Vertically and horizontally adjustable PIR
- Time on adjustment: 10 sec ± 2 sec – 7 min ± 2 min
- 120° detection angle, detection range 2 – 7 metres
- Lux level adjustments: 2 Lux ~ 2000 Lux
- M.O.M: 1 / O.P.Q: 20
Specification
| Lamp Specifications: | |
|---|---|
| Lumens total flux | 2400 lm |
| Rated Wattage | 30W |
| Nominal life time of the lamp | 30,000 hrs |
| Colour temperature | 4000K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 30W |
| Rated lamp lifetime | 30,000 hrs |
| Lamp power factor | >0.9 |
| Lumen maintenance factor at end of nominal life | 70% |
| Starting time | <0.5s |
| Colour rendering | >80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 720cd |
| Rated beam angle | 120° |
| Voltage | 240V |
| Not suitable for accent lighting | |
