TE1340EB

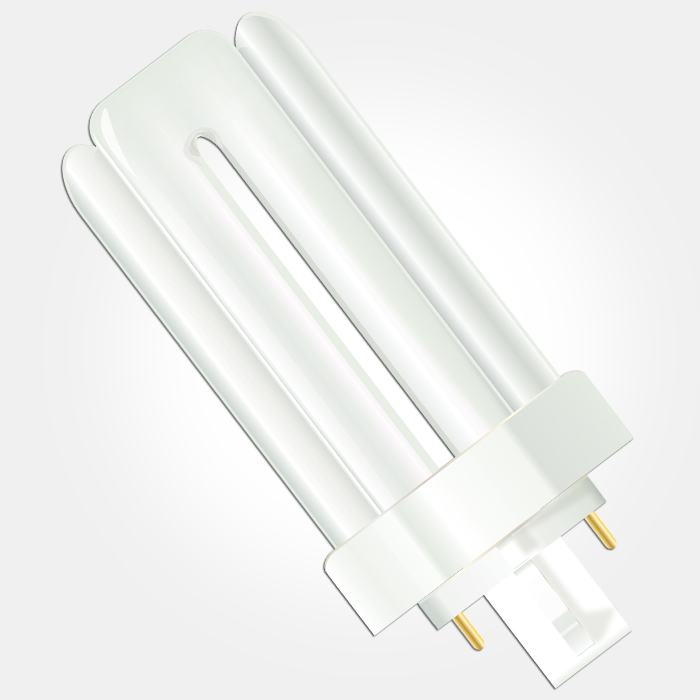

DISCONTINUED - 13W GX24Q-1 4 Pin triple turn T/E CFL lamp
OBSOLETED PRODUCT
13W | 4000K | 810 lm | 10,000 hrs | A Rated | GX24Q-1 4 Pin
TE1340EB
OBSOLETED PRODUCT
13W | 4000K | 810 lm | 10,000 hrs | A Rated | GX24Q-1 4 Pin
Features
- M.O.M: 1 / O.P.Q: 10
Specification
| Lamp Specifications: | |
|---|---|
| Nominal Wattage | 13W |
| Rated Wattage | 13W |
| Average lifetime hours | 10,000 hrs |
| Nominal useful luminous flux | 810 lm |
| Rated luminous flux | 806 lm |
| Luminous efficacy (Lm/W) in 50Hz operation | 62 |
| Rated lamp Lumen maintenance | 2000hrs: 87% 4000 hrs: 79% 8000 hrs: 76% |
| Rated survival factors | 2000hrs: 100% 4000 hrs: 90% 8000 hrs: 55% |
| Lamp dimensions (L/Ø) | 95mm x 45mm |
| Cap type | GX24Q-1 4 Pin |
| Lamp Mercury content to an accuracy of 0.1mg | ≤2.5mg |
| Colour rendering index Ra | ≥80 |
| Colour temperature | 4000K |
| Ambient temperature required to achieve maximum luminous flux | 25°C |
| Is this product dimmer compatible? | No |
| Lumens per watt | Up to 62 lm / W |
| Weight (kg) | 0.066 |
| TSI Code | 399441370 |
