VECOBHLED

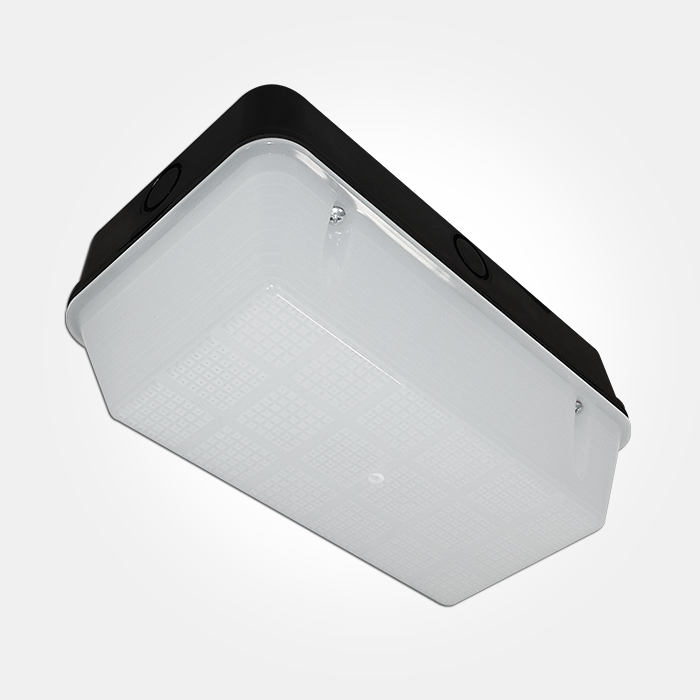

DISCONTINUED - 12W LED economy bulkhead


  • Polycarbonate construction: impact and corrosion resistant
  • BESA box mounting
  • Pre-formed 20mm cable entry knockouts: easy wiring access
  • Plug in connector between the terminal block and the LED array. Terminal block is located on the base, allowing for easy wiring and the LED array can be removed during installation
  • M.O.M: 1 / O.P.Q: 12

Lamp Specifications:
Luminaire lumens (with diffuser) 900 lm
Lumens from chip (no diffuser) 1200 lm
Useful lumens 850 lm
Rated Wattage 12W
Rated luminous flux 850 lm
Nominal life time of the lamp 20,000 hrs
Colour temperature 3000K
Number of switching cycles before premature lamp failure 10,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 12W
Rated lamp lifetime 20,000 hrs
Lamp power factor >0.65
Lumen maintenance factor at end of nominal life 70%
Starting time <0.1s
Colour rendering 80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 83 lm / W
Weight (kg) 0.555
TSI Code 405435571
Not suitable for accent lighting
