WELLBKPIR

Black Polycarbonate LED Well Glass with 120° PIR

Black | 10W | 4000K | 660 lm | 25,000 hrs | IP65



         icon-led  icon-120pir   icon-5year

WELLBKPIR

Black | 10W | 4000K | 660 lm | 25,000 hrs | IP65



         icon-led  icon-120pir   icon-5year

SKU: 5013845055277 Categories: ,
Categories: Ceiling/Wall/Bulkheads
SKU: 5013845055277
More Information
Features

Flexible and decorative range of fittings ideally suited for outdoor applications requiring corner lights

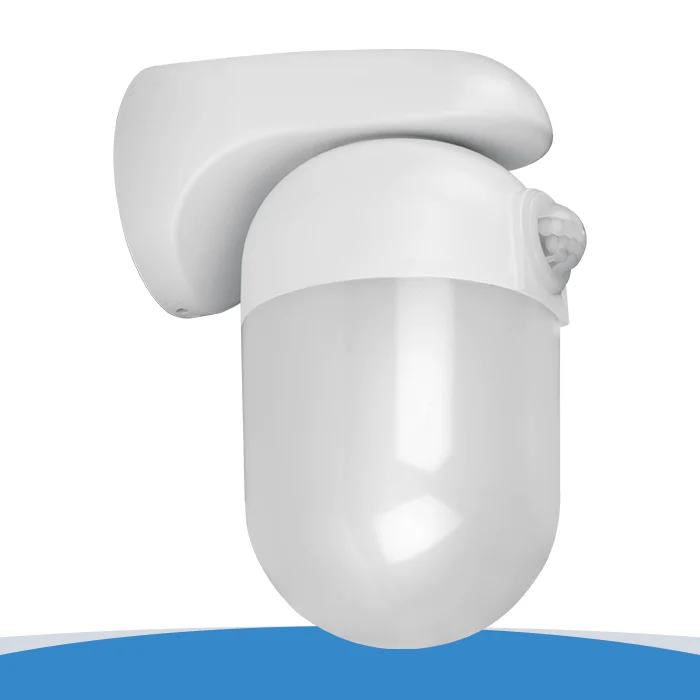

  • Complete solution for flat wall or corner mounting: bracket included for optional corner mounting
  • Factory preset 120° PIR
  • 10 lux – 7 minutes duration
  • No override facility
  • M.O.M: 1 / O.P.Q: 6
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 660 lm
Lumens from chip (no diffuser) 900 lm
Useful lumens 660 lm
Rated Wattage 10W
Rated luminous flux 660 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 12,500
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 10W
Rated lamp lifetime 25,000 hrs
Lamp power factor >0.5
Lumen maintenance factor at end of nominal life 70
Starting time 0.5s
Colour rendering ≥80
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 214cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
