WGLEDWH

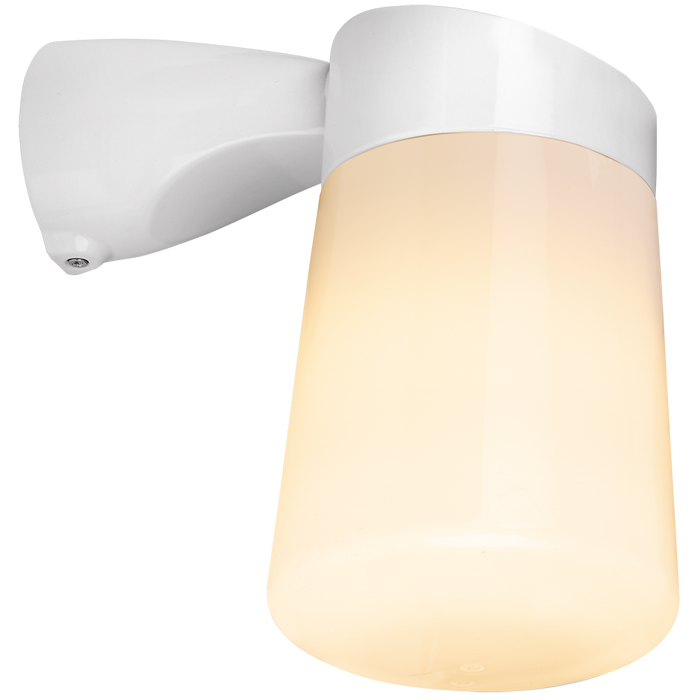

LED well glass fitting with polycarbonate diffuser and optional corner bracket

White | 9.5W | 2700K | 806 lm | 25,000 hrs | IP65 | A+ Rated | Lamp Included



icon-9-5w  icon-2700k  icon-806lm    icon-ip65  icon-aplus



WGLEDWH

White | 9.5W | 2700K | 806 lm | 25,000 hrs | IP65 | A+ Rated | Lamp Included



icon-9-5w  icon-2700k  icon-806lm    icon-ip65  icon-aplus



SKU: 5013845043779 Categories: ,
Categories: EternaPro, Residential & Garden Lights
SKU: 5013845043779
More Information
Features

PERFECT FOR OUTDOOR APPLICATIONS REQUIRING CORNER LIGHTING

Flexible fittings ideally suited for outdoor applications requiring corner lights.

  • Requires 1 x LED ES lamp (included). Fitting is rated at 23W max
  • This luminaire is compatible with bulbs of the energy classes: A+ to E and is sold with a bulb of the energy class: A+

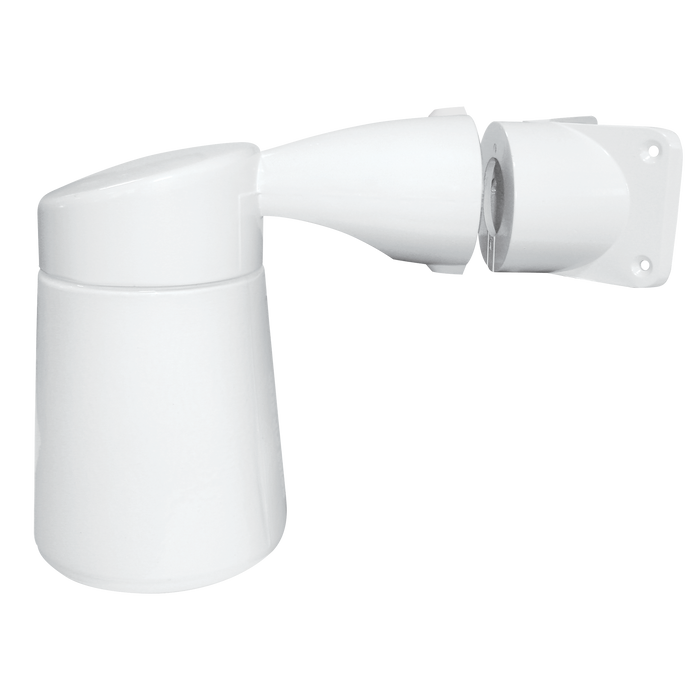

  • Bracket included for optional corner mounting: complete solution for flat wall or corner mounting
  • Aluminium alloy construction in white finish with white polycarbonate diffuser
  • Low energy consumption and prolonged lamp life
  • BESA box mounting
  • Replacement diffuser available: WELLDIFF
  • M.O.M: 1 / O.P.Q: 4
Specification
Lamp Specifications:
Lumens total flux 806 lm
Rated Wattage 9.5W
Rated luminous flux 806 lm
Nominal life time of the lamp 25,000 hrs
Colour temperature 2700K
Number of switching cycles before premature lamp failure 100,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Lamp dimensions (L/Ø) 110x60mm
Nominal beam angle 220°
Cap type ES (E27)
Rated power wattage 9.5W
Rated lamp lifetime 25,000 hrs
Lamp power factor ≥0.5
Lumen maintenance factor at end of nominal life >70%
Starting time Instant full light
Colour rendering >80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated beam angle 220°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 84 lm / W
Weight (kg) 1.218
TSI Code 401824254
Downloads

You will need Adobe Acrobat Reader to access and print PDFs.

FAQ

What is the maximum lamp wattage for this fitting?

This is designed for low energy lamps only and is rated 23W maximum
