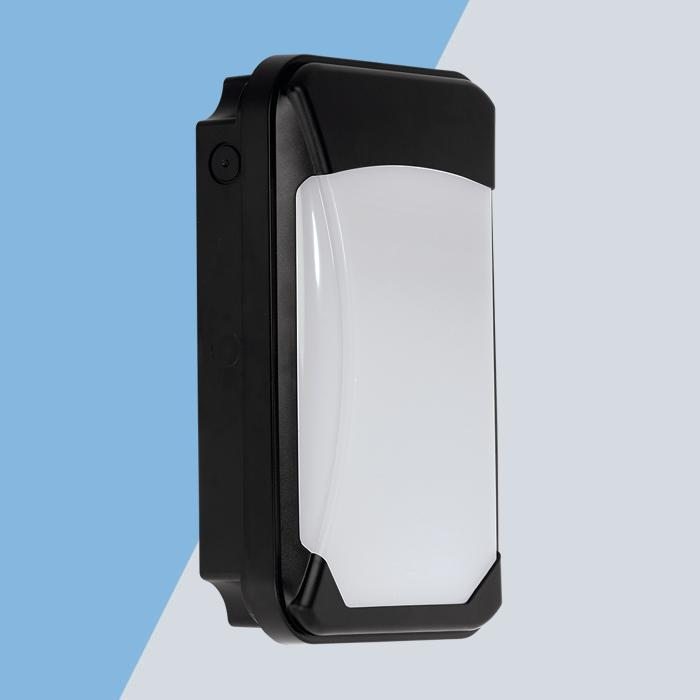

WPCSBK

LED colour temperature selectable slim wall pack

Black | 17W | 36,000 hrs | IP65
• 3000K/1500 lm (Warm White) • 4000K/1550 lm (Cool White) • 6000K/1530 lm (Daylight)



               icon-ip65  icon-led  icon-5year

WPCSBK

Black | 17W | 36,000 hrs | IP65
• 3000K/1500 lm (Warm White) • 4000K/1550 lm (Cool White) • 6000K/1530 lm (Daylight)



               icon-ip65  icon-led  icon-5year

SKU: 5013845053617 Categories: ,
Categories: Ceiling/Wall/Bulkheads
SKU: 5013845053617
More Information
Features

Slim profile, durable and high performance colour selectable wall pack offering reliability for outdoor utility applications.

  • Colour temperature selectable – options of 3000K, 4000K & 6000K easily set by a dip switch on the driver
  • ABS base and polycarbonate diffuser
  • Slim design
  • Opal diffuser: evenly diffused light output
  • 20mm cable entries on either side and one to the rear
  • Up to 90 lm / W
  • M.O.M: 1 / O.P.Q: 10
Specification
Lamp Specifications:
Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White 1500 lm (WW) / 1550 lm (CW) / 1530 lm (DW)
Lumens from chip (array): Warm White, Cool White, Daylight White 1750 lm (WW) / 1850 lm (CW) / 1850 lm (DW)
Useful lumens (array): Warm White, Cool White, Daylight White 1450 lm (WW) / 1500 lm (CW) / 1480 lm (DW)
Rated Wattage 17W
Rated luminous flux 1450 lm (WW) / 1500 lm (CW) / 1480 lm (DW)
Nominal life time of the lamp 36,000 hrs
Colour temperature 3000/4000/6000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output <1s
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 17W
Rated lamp lifetime 36,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life ≥0.70
Starting time <0.1s
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 360cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt
Weight (kg)
TSI Code 406600622
Not suitable for accent lighting
