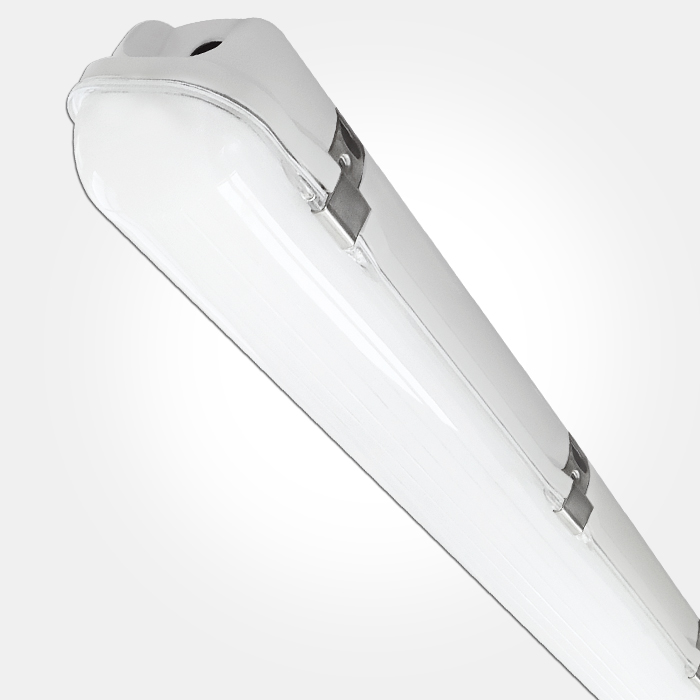

WPLED51
DISCONTINUED - Single 5ft LED weatherproof fitting
Superb one for one replacement for traditional fluorescent fixtures.
Robust range suitable for more open environments.
ROBUST FITTINGS SUITABLE FOR MULTIPLE OUTDOOR APPLICATIONS
- Polycarbonate housing and diffuser
- Multiple fixing options - supplied with surface mounting brackets and suspension hooks
- Gear tray retaining strap for easy installation
- IES files available
- Push-fit terminal block
- Stainless steel clips
- 100 lm / W
- Supplied with 20mm gland
- M.O.M: 1 / O.P.Q: 6
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser) | 3000 lm |
| Lumens from chip (no diffuser) | 3600 lm |
| Rated Wattage | 30W |
| Rated luminous flux | 3000 lm |
| Nominal life time of the lamp | 30,000 hrs |
| Colour temperature | 5000K |
| Number of switching cycles before premature lamp failure | ≥15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 30W |
| Rated lamp lifetime | 30,000 hrs |
| Lamp power factor | 0.9 |
| Lumen maintenance factor at end of nominal life | >70% |
| Starting time | <0.5s |
| Colour rendering | 80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 812cd |
| Rated beam angle | 120° |
| Voltage | 240V |
| Lumens per watt | Up to 100 lm / W |
| Weight (kg) | 2.374 |
| TSI Code | 402632791 |
| Not suitable for accent lighting | |
