110V Bulkhead.
E14BH1 - Maintained Li-Ion Bulkhead 3W 6000K with ISO 7010 legend set
COMING SOON.

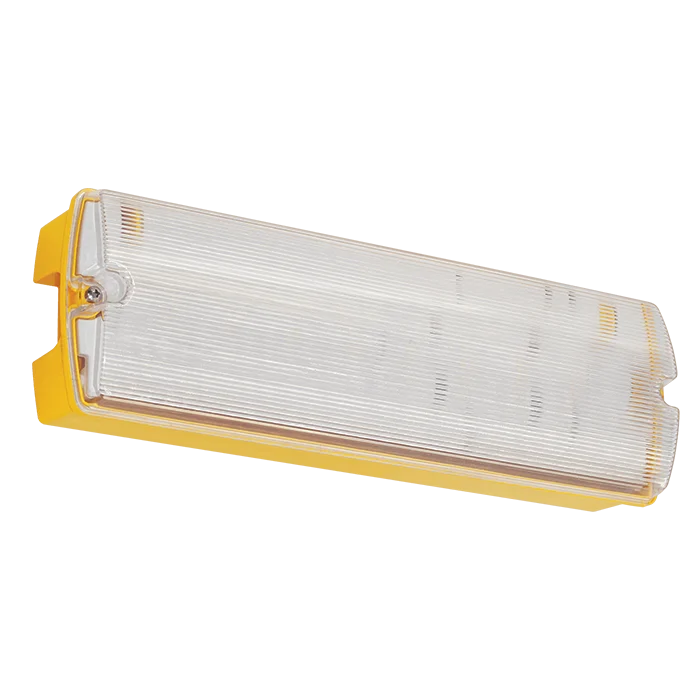

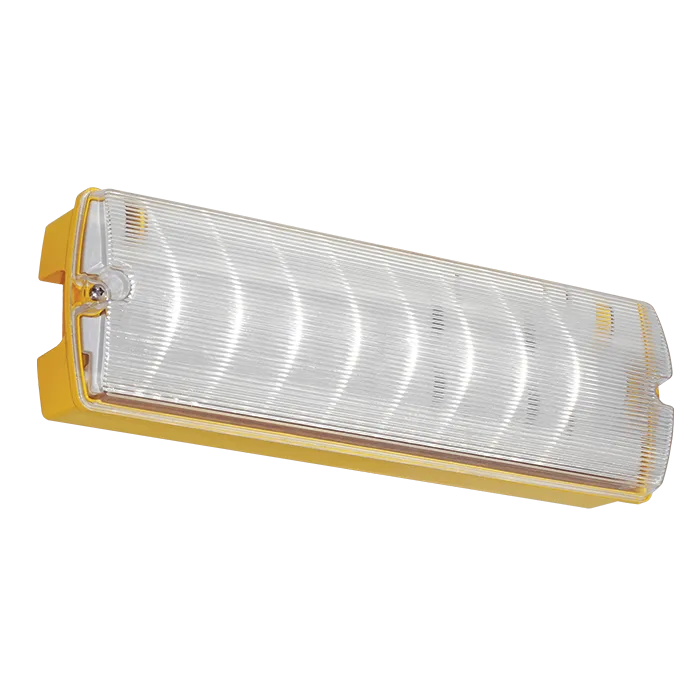

A robust rectangular emergency bulkhead designed for 110V applications, supplied in maintained mode with the option to convert to non‑maintained operation as required. This energy‑efficient 3W luminaire delivers 280 lumens in mains mode and 130 lumens in emergency mode, ensuring reliable illumination during power loss.
The unit is supplied with a full ISO7010‑compliant legend set, with additional directional sign options available.
- Polycarbonate construction

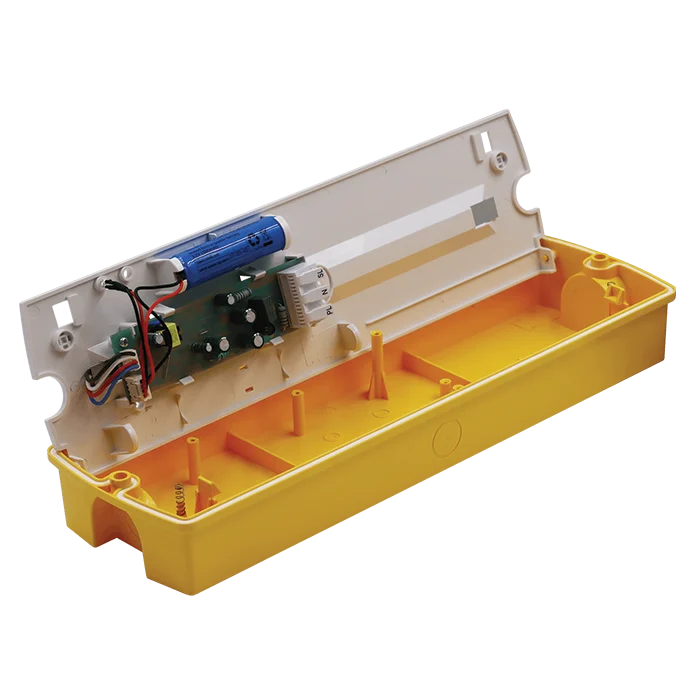

- Hinged gear tray
- Push terminals
- 20mm gland entries as standard
- 3 hour maintained mode configurable to non maintained
- ISO 7010 legend set included
- 3 year product and battery warranty
SPECIFICATION
-
+
| Light Source | LED |
| Finish | Yellow |
| Construction Materials | Polycarbonate |
| Nominal Voltage | 110 |
| Wattage | 3W |
| Colour Temperature | 6000K |
| Beam Angle | 120 |
| Lumens | 280lm |
| LMW | 93lm/W |
| CRI | 80 |
| IP/IK Rating | IP65/IK08 |
| Average Rated Life | 50,000 hours |
| Product Warranty | 3 Years |
