1200P4K

60W 1200x600mm TP(b) LED Panel with Lifud Driver

White | 60W | 4000K | 4800 lm | 35,000 hrs



 icon-4000k    icon-35000hrs    icon-led  icon-5year

1200P4K

White | 60W | 4000K | 4800 lm | 35,000 hrs



 icon-4000k    icon-35000hrs    icon-led  icon-5year

SKU: 5013845054270 Categories: ,
Categories: Panels
SKU: 5013845054270
More Information
Features

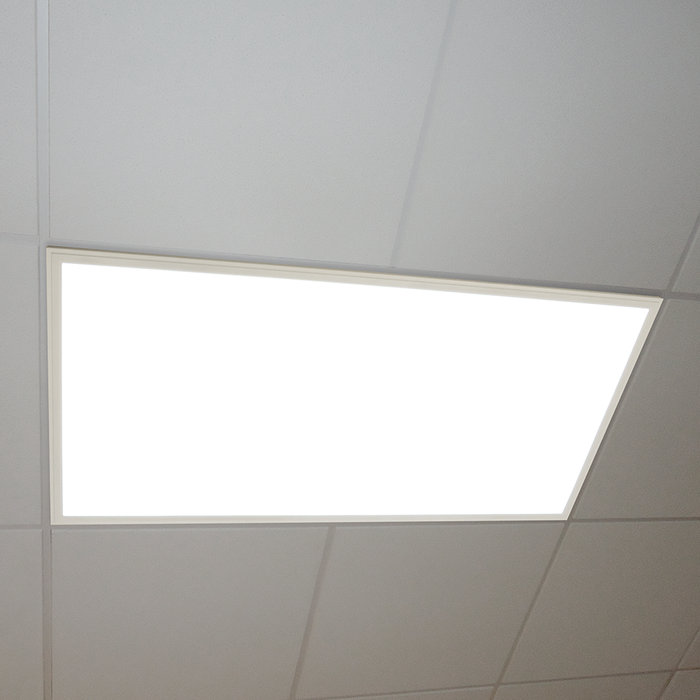

These light panels are designed to fit into the space normally occupied by standard 600mm x 600mm ceiling tiles, and are therefore a direct replacement for traditional modular fluorescent fittings used in many offices, educational and commercial applications

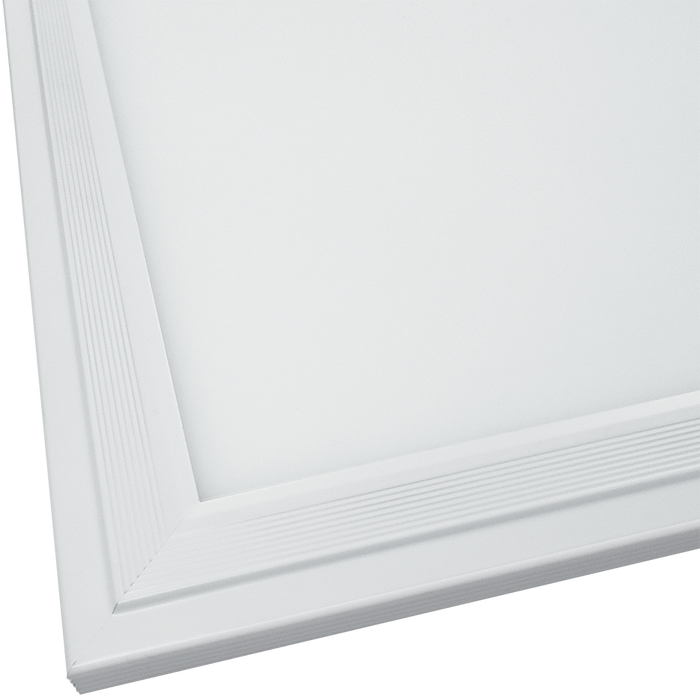

  • Aluminium frame
  • Supplied with Lifud branded driver
  • Low glare and even shadow free light distribution ensures suitability for a variety of applications: visually superior to standard fluorescent panels
  • 4000K colour temperature, edge lit: offering a bright neutral white lighting effect
  • Ultra slim profile and a white trim finish to match the majority of T. bar ceilings
  • CRI Ra:≥80: High CRI to minimise colour distortion of illuminated products
  • Can be recessed in the ceiling or suspended from wires: see SUSPACK / PANSUSKIT suspension kit
  • Ability to be converted into an emergency luminaire: see below for emergency battery packs
  • M.O.M: 1 / O.P.Q: 3
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 4800 lm
Lumens from chip (no diffuser) 7250 lm
Useful lumens 4600 lm
Rated Wattage 60W
Rated luminous flux 4600 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 4000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output 0.5s
Is this product dimmer compatible? No
Nominal beam angle 115°
Rated power wattage 60W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life >70%
Starting time <0.5s
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 1600cd
Rated beam angle 115°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 80 lm / W
Not suitable for accent lighting
