600P5K

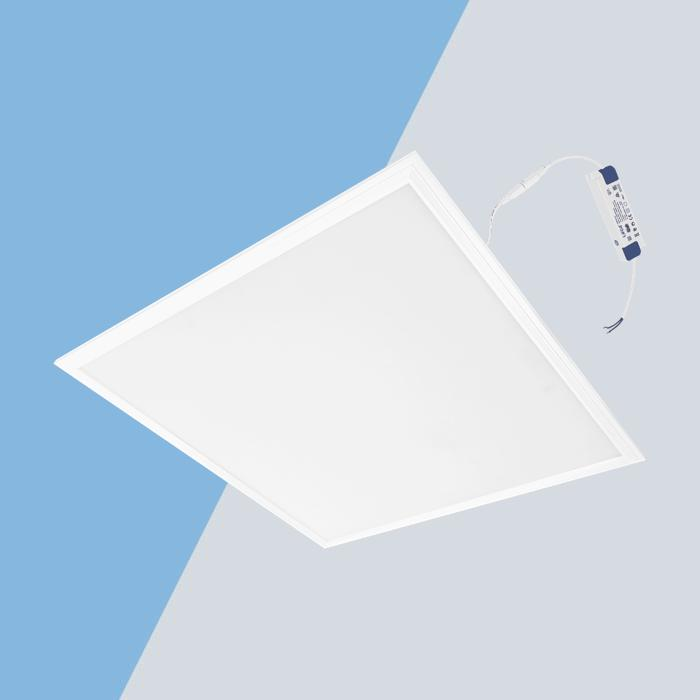

36W 5000K 600x600mm TP(b) LED slim panel light with Lifud driver

White | 36W | 5000K | 3600 lm | 30,000 hrs | A+ Rated



        icon-led  icon-5year



600P5K

White | 36W | 5000K | 3600 lm | 30,000 hrs | A+ Rated



        icon-led  icon-5year



SKU: 5013845053259 Categories: , ,
Categories: EternaPro, Panels, New Products
SKU: 5013845053259
More Information
Features

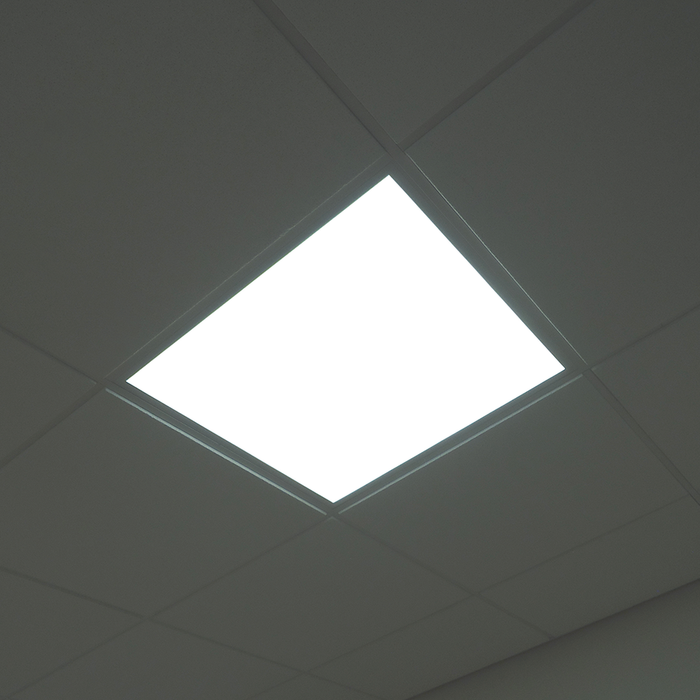

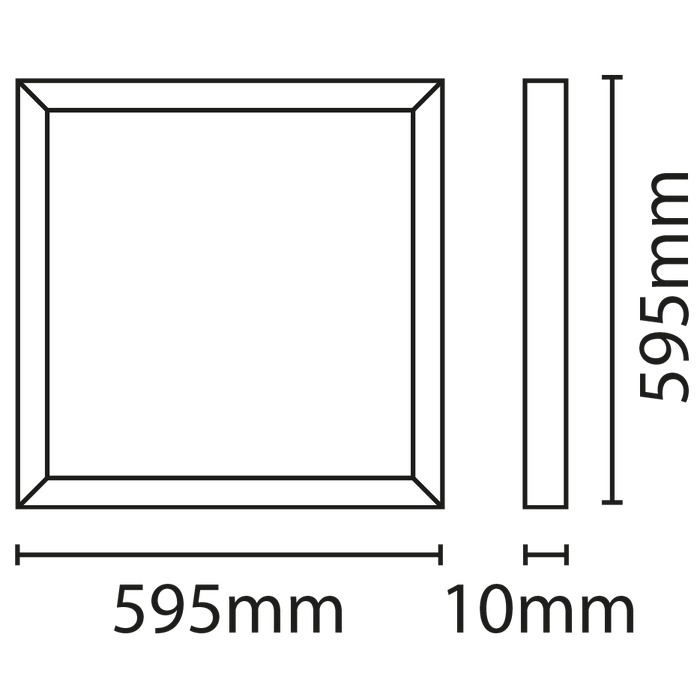

This light panel is designed to fit into the space normally occupied by a standard 600mm x 600mm ceiling tile, it is therefore a direct replacement for traditional modular fluorescent fittings used in many offices, educational and commercial applications.

Specifiable ceiling panel with dimming options and available in 3 temperatures, offering efficient output, TP(b) compliance and assurance from a Lifud branded driver.

PERFECT FOR OFFICE, COMMERCIAL AND EDUCATIONAL APPLICATIONS

  • Aluminium frame
  • 100 lm / W
  • Low glare and even shadow free light distribution ensures suitability for a variety of applications: visually superior to
    standard fluorescent panels
  • 5000K colour temperature, edge lit: offering a cool white lighting effect
  • Ultra slim profile and a white trim finish to match the majority of T. bar ceilings
  • Can be recessed in the ceiling or suspended from wires (suspension kit not included, part code SUSPACK)
  • SUSPACK cable length: 1m / panel max. suspension height: 940mm
  • Surface mounting can be achieved through the mounting box available separately, part code SURFMK (supplied in kit form)
  • Ability to be converted into an emergency luminaire: EBPM3 emergency battery pack required or see SEEBPM3 for Self-Test version
  • CRI Ra:≥80: High CRI to minimise colour distortion of illuminated products
  • Supplied with Lifud branded driver
  • M.O.M: 1 / O.P.Q: 5
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 3600 lm
Lumens from chip (no diffuser) 5040 lm
Useful lumens 3500 lm
Rated Wattage 36W
Rated luminous flux 3500 lm
Nominal life time of the lamp 30,000 hrs
Colour temperature 5000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output <1s
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 36W
Rated lamp lifetime 30,000 hrs
Lamp power factor 0.9
Lumen maintenance factor at end of nominal life >70%
Starting time <0.5s
Colour rendering 78 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 1150cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 100 lm / W
Weight (kg)
TSI Code 406599759
Please note: there will be a slight reduction in lumen output if using a dimmer
Not suitable for accent lighting
