BATL5FTEM3

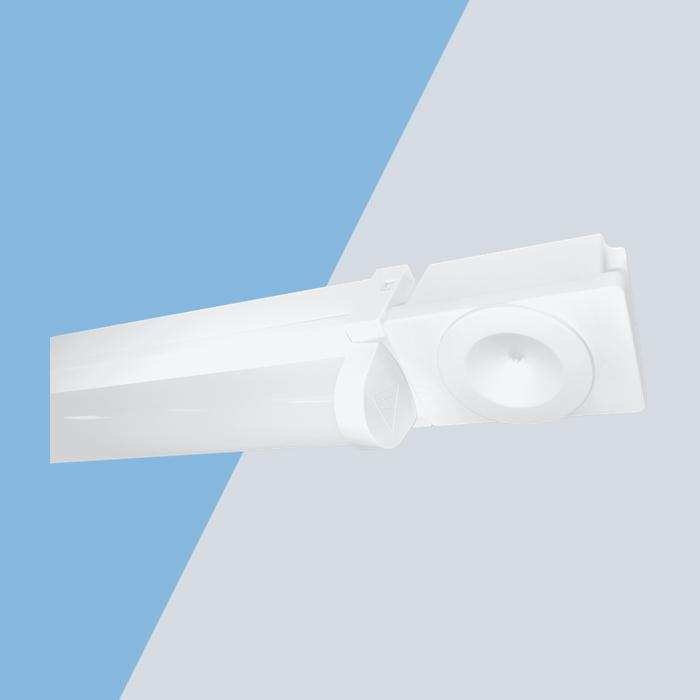

5FT LED batten

White | 38W | 4200K | 4750 lm | 35,000 hrs | IP20



         icon-led  icon-5year

BATL5FTEM3

White | 38W | 4200K | 4750 lm | 35,000 hrs | IP20



         icon-led  icon-5year

Categories: Battens - Interior, Emergency Lighting, New Products
SKU: 5013845057394
More Information
Features

Full photometric data available to enable lighting designs. Light output is equivalent or superior to traditional fluorescent battens.

High Performance battens – perfect for new installs & replacing fluorescent.

PERFECT FOR OFFICE, COMMERCIAL & EDUCATIONAL APPLICATIONS

  • Pressed steel body and polycarbonate diffuser
  • LED tray can be removed from the housing for easy installation
  • 20mm knockout glands at each end for through wiring options
  • BESA box mounting
  • Gear tray retaining straps
  • Push terminal connections
  • M.O.M: 1 / O.P.Q: 6
  • Emergency Li-ion:
  • LiFePO4 Lithium battery technology offering reduced energy consumption, enhanced charging cycle capacity & improved operational life compared to standard NiCad products
  • Built-in battery overcharge protection
  • 3 hour non maintained operation
  • Integrated green charging indicator LED
  • 160 lm in emergency mode
  • 3.2V 1500mAh Lithium Ion battery
  • Replacement battery available: EB2
Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 4750 lm
Lumens from chip (no diffuser) 5500 lm
Useful lumens 4600 lm
Rated Wattage 38W
Rated luminous flux 4600 lm
Nominal life time of the lamp 35,000 hrs
Colour temperature 4200K
Number of switching cycles before premature lamp failure >15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 38W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.9
Lumen maintenance factor at end of nominal life ≥0.70
Starting time <0.1s
Colour rendering ≥80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 1937cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 126 lm / W
Earthed
Not suitable for accent lighting
