BRICKLED

LED bricklight with stainless steel frame

White / Stainless Steel | 5.4W | 6000K | 280 lm | 20,000 hrs | IP65



icon-5-4w  icon-6000k  icon-280lm  icon-20000hrs  icon-ip65  icon-led  icon-5year

BRICKLED

White / Stainless Steel | 5.4W | 6000K | 280 lm | 20,000 hrs | IP65



icon-5-4w  icon-6000k  icon-280lm  icon-20000hrs  icon-ip65  icon-led  icon-5year

Categories: Ceiling/Wall/Bulkheads, Garden Lighting
SKU: 5013845047692
More Information
Features

A modern design that gives an instant cool white light. Ultra low energy consumption and prolonged lamp life.

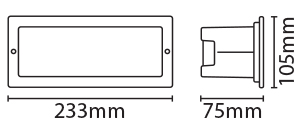

Hole Cut Out Size: L: 228mm – D: 75mm – H: 98mm

• Polycarbonate construction
• Opal diffuser with optional stainless steel frame offering a soft, stylish lighting effect
• Integral driver
• Cable gland included
• M.O.M: 1 / O.P.Q: 6

Specification
Lamp Specifications:
Luminaire lumens (with diffuser) 280 lm
Lumens from chip (no diffuser) 450 lm
Useful lumens 260 lm
Rated Wattage 5.4W
Rated luminous flux 260 lm
Nominal life time of the lamp 20,000 hrs
Colour temperature 6000K
Number of switching cycles before premature lamp failure 10,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 5.4W
Rated lamp lifetime 20,000 hrs
Lamp power factor >0.5
Lumen maintenance factor at end of nominal life 60%
Starting time <0.1s
Colour rendering 78 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 84cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 51 lm / W
Weight (kg) 0.681
TSI Code 403433818
Not suitable for accent lighting
