CLEDCIRWH

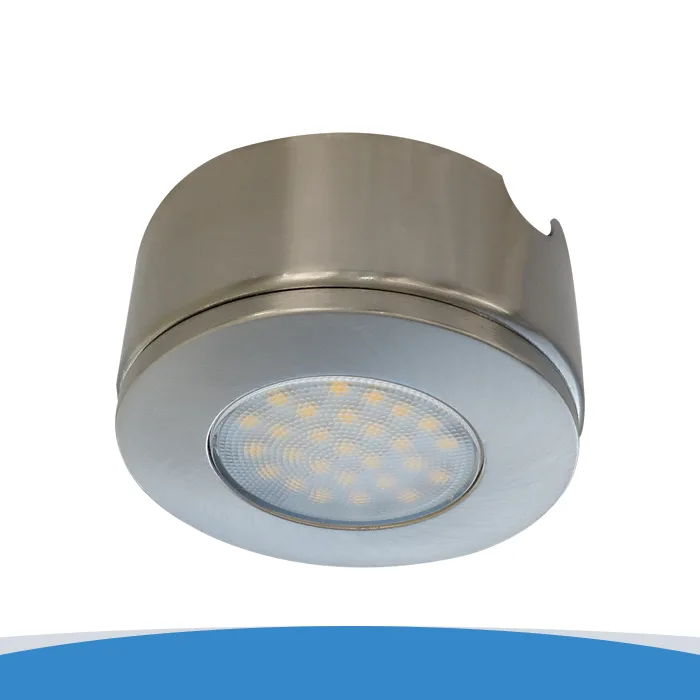

LED 1.7W surface / recessed cabinet downlight
White | 1.7W | 3000K | 160 lm | 30,000 hrs | IP20
CLEDCIRWH
White | 1.7W | 3000K | 160 lm | 30,000 hrs | IP20
Features
MAINS VOLTAGE: Integral Driver
- 3000K warm colour temperature: offering a pleasing lighting appearance
- 1.7W = 160 lumens: ideal low energy solution to standard halogen cabinet lights
- Not suitable for use with dimmers
- Prewired with 2m mains cable and no separate driver required: facilitating easy installation
- Visually similar to 20W G4 halogen
- Hole cut out size: 61mm
- M.O.M: 1 / O.P.Q: 40
Specification
| Lamp Specifications: | |
|---|---|
| Lumens total flux | 160 lm |
| Lumens 90° flux | 150 lm |
| Rated Wattage | 1.7W |
| Rated luminous flux | 150 lm |
| Nominal life time of the lamp | 30,000 hrs |
| Colour temperature | 3000K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 90° |
| Rated power wattage | 1.7W |
| Rated lamp lifetime | 30,000 hrs |
| Displacement factor | 0.95 |
| Lumen maintenance factor at end of nominal life | >70% |
| Starting time | <0.5s |
| Colour rendering | >80 |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 48.2cd |
| Rated beam angle | 90° |
| Charger Output Voltage | 240V |
| Lumens per watt | 94 lm / W |
| Weight (kg) | 0.2 |
| TSI Code | 402760430 |
| This product contains a Light Source of Energy Efficiency Class G | |
| Not suitable for accent lighting | |
Downloads
FAQ
What is the hole cut out size?
61mm
Does this require a driver / transformer?
No, this is designed for direct mains wiring
