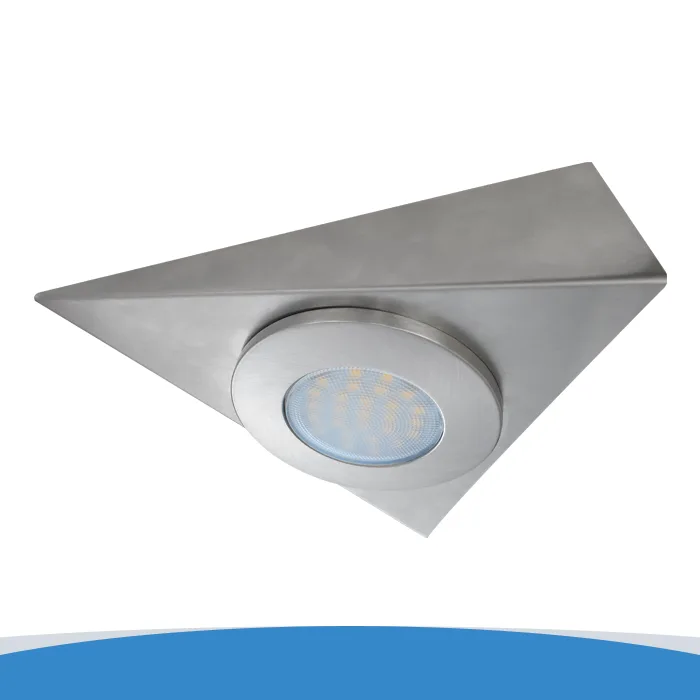

CLEDTRI

LED 1.7W triangle cabinet downlight

Brushed Nickel | 1.7W | 3000K | 160 lm | 30,000 hrs | IP20



icon-1-7w  icon-3000k  icon-160lm  icon-30000hrs  icon-led

CLEDTRI

Brushed Nickel | 1.7W | 3000K | 160 lm | 30,000 hrs | IP20



icon-1-7w  icon-3000k  icon-160lm  icon-30000hrs  icon-led

Categories: Cabinet Lighting, Downlights
SKU: 5013845043496
More Information
Features

MAINS VOLTAGE: Integral Driver

  • 3000K warm colour temperature: offering a pleasing lighting appearance
  • 1.7W = 160 lumens: ideal low energy solution to standard halogen cabinet lights
  • Not suitable for use with dimmers
  • Prewired with 2m mains cable and no separate driver required: facilitating easy installation
  • Visually similar to 20W G4 halogen
  • M.O.M: 1 / O.P.Q: 40
Specification
Lamp Specifications:
Lumens total flux 160 lm
Lumens 90° flux 150 lm
Rated Wattage 1.7W
Rated luminous flux 150 lm
Nominal life time of the lamp 30,000 hrs
Colour temperature 3000K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 90°
Rated power wattage 1.7W
Rated lamp lifetime 30,000 hrs
Displacement factor 0.95
Lumen maintenance factor at end of nominal life >70%
Starting time <0.5s
Colour rendering >80
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 48.2cd
Rated beam angle 90°
Charger Output Voltage 240V
Lumens per watt 94 lm / W
Weight (kg) 0.242
TSI Code 401346088
This product contains a Light Source of Energy Efficiency Class G
Not suitable for accent lighting
Downloads

You will need Adobe Acrobat Reader to access and print PDFs.

FAQ

Does this require a driver / transformer?

No, this is designed for direct mains wiring
