CSLEDCR

Colour selectable LED wall/ceiling light

Carina Range

Polished Chrome | 17W | 35,000 hrs | IP65
• 3100K/1250 lm (Warm White) • 4200K/1350 lm (Cool White) • 6400K/1300 lm (Daylight)



               icon-ip65  icon-led  icon-5year



CSLEDCR

Carina Range

Polished Chrome | 17W | 35,000 hrs | IP65
• 3100K/1250 lm (Warm White) • 4200K/1350 lm (Cool White) • 6400K/1300 lm (Daylight)



               icon-ip65  icon-led  icon-5year



Categories: Ceiling/Wall/Bulkheads
SKU: 5013845048996
More Information
Features

PERFECT FOR SUPERIOR LEISURE, HOTELS & OUTDOOR APPLICATIONS

Versatile range of decorative bulkheads, offering practicality and style with multiple functional options.

  • Colour temperature selectable – options of 3100K, 4200K & 6400K easily set by a dip switch on the gear tray

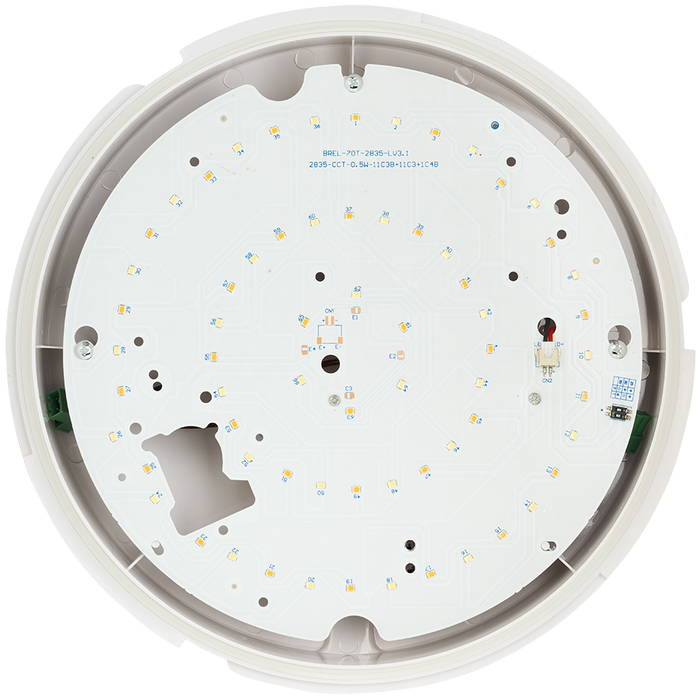

  • Full circular LED array
  • Central BESA box mounting option on the base
  • Plug in connector between the terminal block and the gear tray. Terminal block is located on the base, allowing for easy wiring and the gear tray to be removed during installation
  • Polycarbonate construction
  • IP65, ceiling or wall mounted
  • M.O.M: 1 / O.P.Q: 8
Specification
Lamp Specifications:
Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White 1250 lm (WW) / 1350 lm (CW) / 1300 lm (DW)
Lumens from chip (array): Warm White, Cool White, Daylight White 1700 lm (WW) / 1850 lm (CW) / 1750 lm (DW)
Useful lumens (array): Warm White, Cool White, Daylight White 1200 lm (WW) / 1300 lm (CW) / 1250 lm (DW)
Rated Wattage 17W
Rated luminous flux 1200 lm (WW) / 1300 lm (CW) / 1250 lm (DW)
Nominal life time of the lamp 35,000 hrs
Colour temperature 3100/4200/6400K
Number of switching cycles before premature lamp failure 15,000
Warm-up time up to 60 % of the full light output Instant full light
Is this product dimmer compatible? No
Nominal beam angle 120°
Rated power wattage 17W
Rated lamp lifetime 35,000 hrs
Lamp power factor >0.88
Lumen maintenance factor at end of nominal life >0.7
Starting time <0.1s
Colour rendering >80 Ra
Colour consistency Within a 6 step Macadam ellipse
Rated peak intensity 520cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Lumens per watt Up to 79 lm / W
Weight (kg) 1.2
TSI Code 404495211
Not suitable for accent lighting
