CSLEDWH

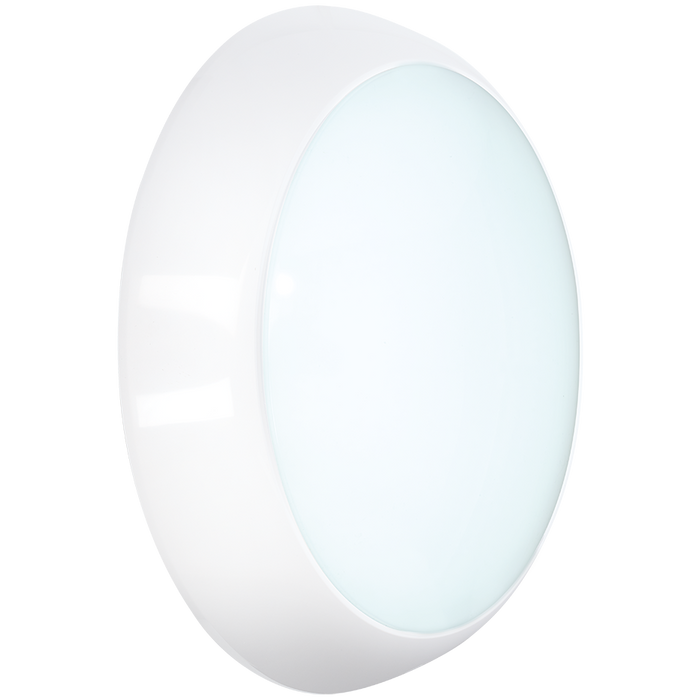

Colour selectable LED wall/ceiling light
Carina Range
White | 17W | 35,000 hrs | IP65
• 3100K/1250 lm (Warm White) • 4200K/1350 lm (Cool White) • 6400K/1300 lm (Daylight)
CSLEDWH
Carina Range
White | 17W | 35,000 hrs | IP65
• 3100K/1250 lm (Warm White) • 4200K/1350 lm (Cool White) • 6400K/1300 lm (Daylight)
Features
PERFECT FOR SUPERIOR LEISURE, HOTELS & OUTDOOR APPLICATIONS
Versatile range of decorative bulkheads, offering practicality and style with multiple functional options.
- Colour temperature selectable – options of 3100K, 4200K & 6400K easily set by a dip switch on the gear tray
- Full circular LED array
- Central BESA box mounting option on the base
- Plug in connector between the terminal block and the gear tray. Terminal block is located on the base, allowing for easy wiring and the gear tray to be removed during installation
- Polycarbonate construction
- IP65, ceiling or wall mounted
- M.O.M: 1 / O.P.Q: 8
Specification
| Lamp Specifications: | |
|---|---|
| Luminaire lumens (with diffuser): Warm White, Cool White, Daylight White | 1250 lm (WW) / 1350 lm (CW) / 1300 lm (DW) |
| Lumens from chip (array): Warm White, Cool White, Daylight White | 1700 lm (WW) / 1850 lm (CW) / 1750 lm (DW) |
| Useful lumens (array): Warm White, Cool White, Daylight White | 1200 lm (WW) / 1300 lm (CW) / 1250 lm (DW) |
| Rated Wattage | 17W |
| Rated luminous flux | 1200 lm (WW) / 1300 lm (CW) / 1250 lm (DW) |
| Nominal life time of the lamp | 35,000 hrs |
| Colour temperature | 3100/4200/6400K |
| Number of switching cycles before premature lamp failure | 15,000 |
| Warm-up time up to 60 % of the full light output | Instant full light |
| Is this product dimmer compatible? | No |
| Nominal beam angle | 120° |
| Rated power wattage | 17W |
| Rated lamp lifetime | 35,000 hrs |
| Lamp power factor | >0.88 |
| Lumen maintenance factor at end of nominal life | >0.7 |
| Starting time | <0.1s |
| Colour rendering | >80 Ra |
| Colour consistency | Within a 6 step Macadam ellipse |
| Rated peak intensity | 520cd |
| Rated beam angle | 120° |
| Voltage / Frequency | 240V~50Hz |
| Lumens per watt | Up to 79 lm / W |
| Weight (kg) | 1.2 |
| TSI Code | 404495282 |
| Not suitable for accent lighting | |
